Product Delivery Elbows

The LTE series product delivery elbows connect discharge hoses from a road tanker to a fill point on underground storage tanks fitted with Liquip tight fill adaptors or similar.

Liquip's product delivery elbows allow for quick and safe product transfer. Spring loaded levers allow the elbows to snap on securely to an side seal tight fill adaptor with minimal pressure.

The latest models of 4” LTE elbows are still fitted with Viton Base seals and are now fitted with NBR sight glass seals which provide the same functionality as existing LTE’s (unless otherwise specified).

Spare parts remain interchangeable between various models.

Features & Benefits

Spill free delivery during discharge of tank trucks.
Incorporated sightglass for 360^o view product flow.
Sealing on the bottom connection is via lip seal on the side of the LTA adaptor as this surface is rarely worn.
Ergonomic design for added operator safety.
Easy connection and disconnection.
Quick release design.
Connection at the top inlet is via standard camlock.
Spring loaded levers that snap onto adaptors with minimal pressure.
Can now be purchased with a locking ring which will prevent the elbow from inadvertently
dislodging during use - refer suffix “R” on item number or they can be purchased and fitted
separately (P/N: LTE4-RINGZ).

Technical Information
Ordering information
Associated Equipment
Resources

Ordering information

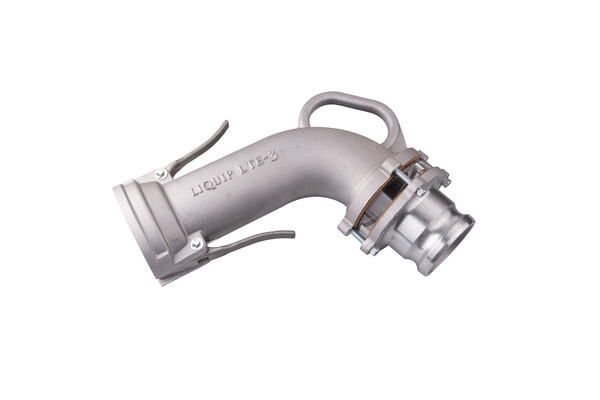

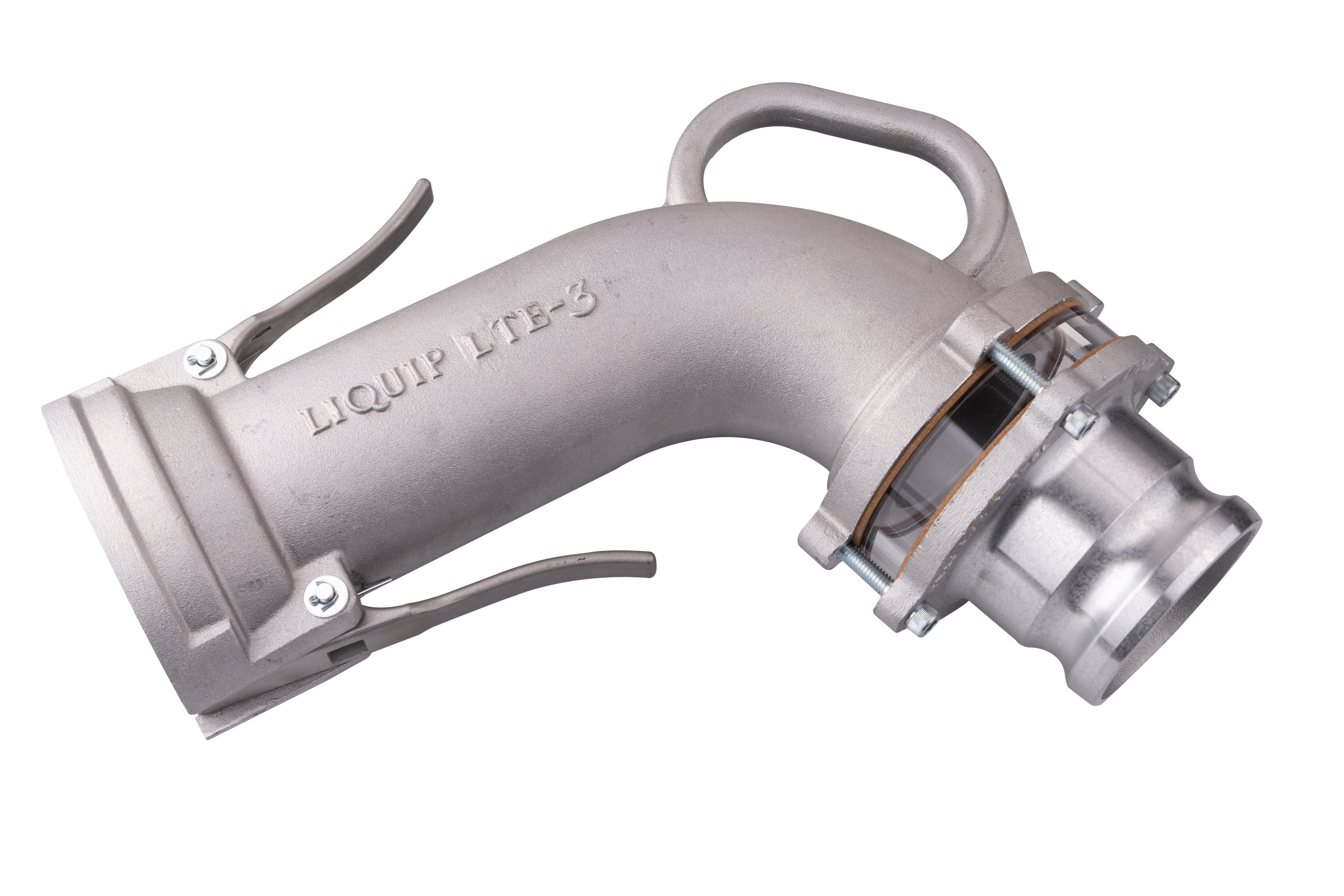

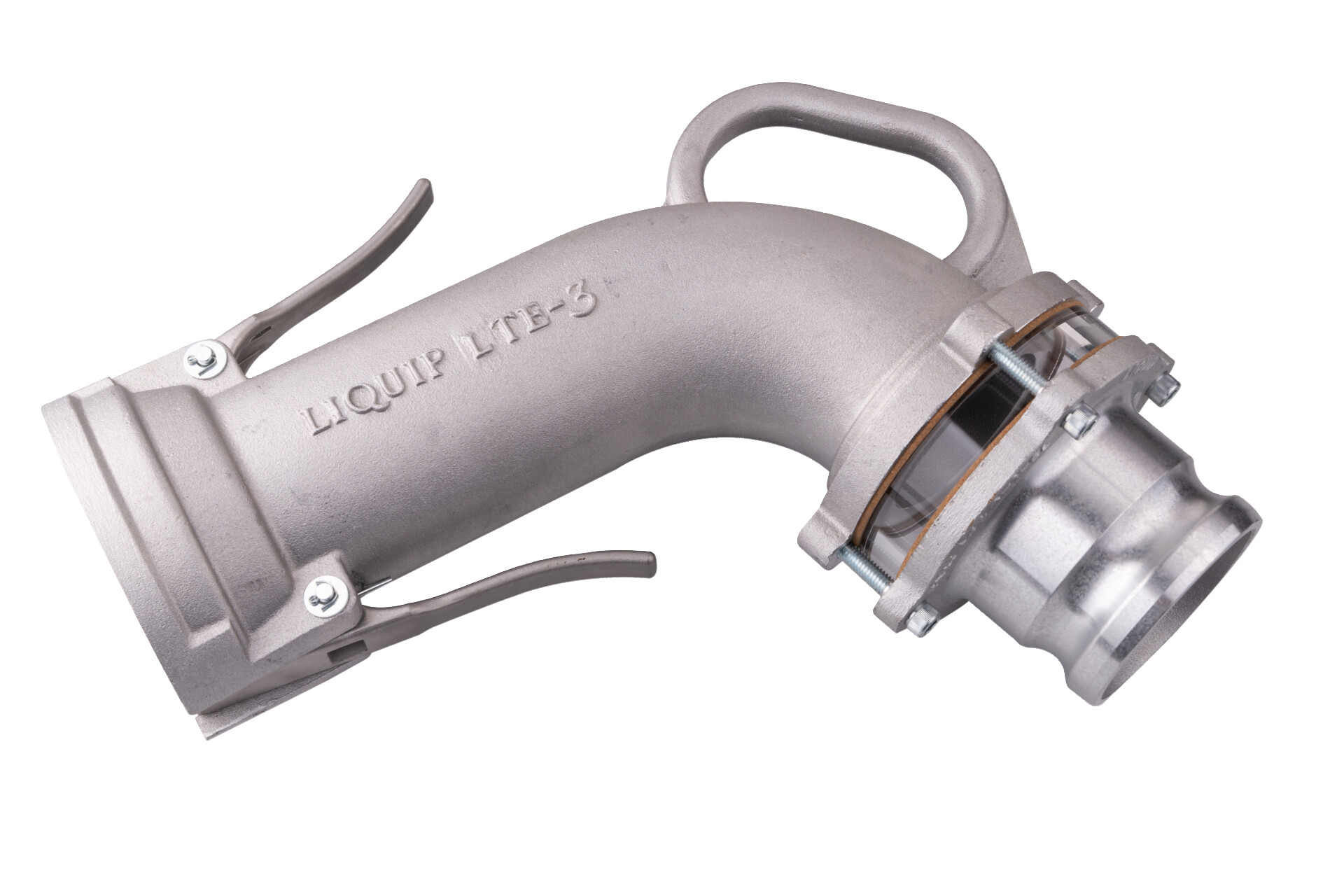

LTE3X3: Aluminium elbow 80mm male camlock x 80mm titefill elbow.

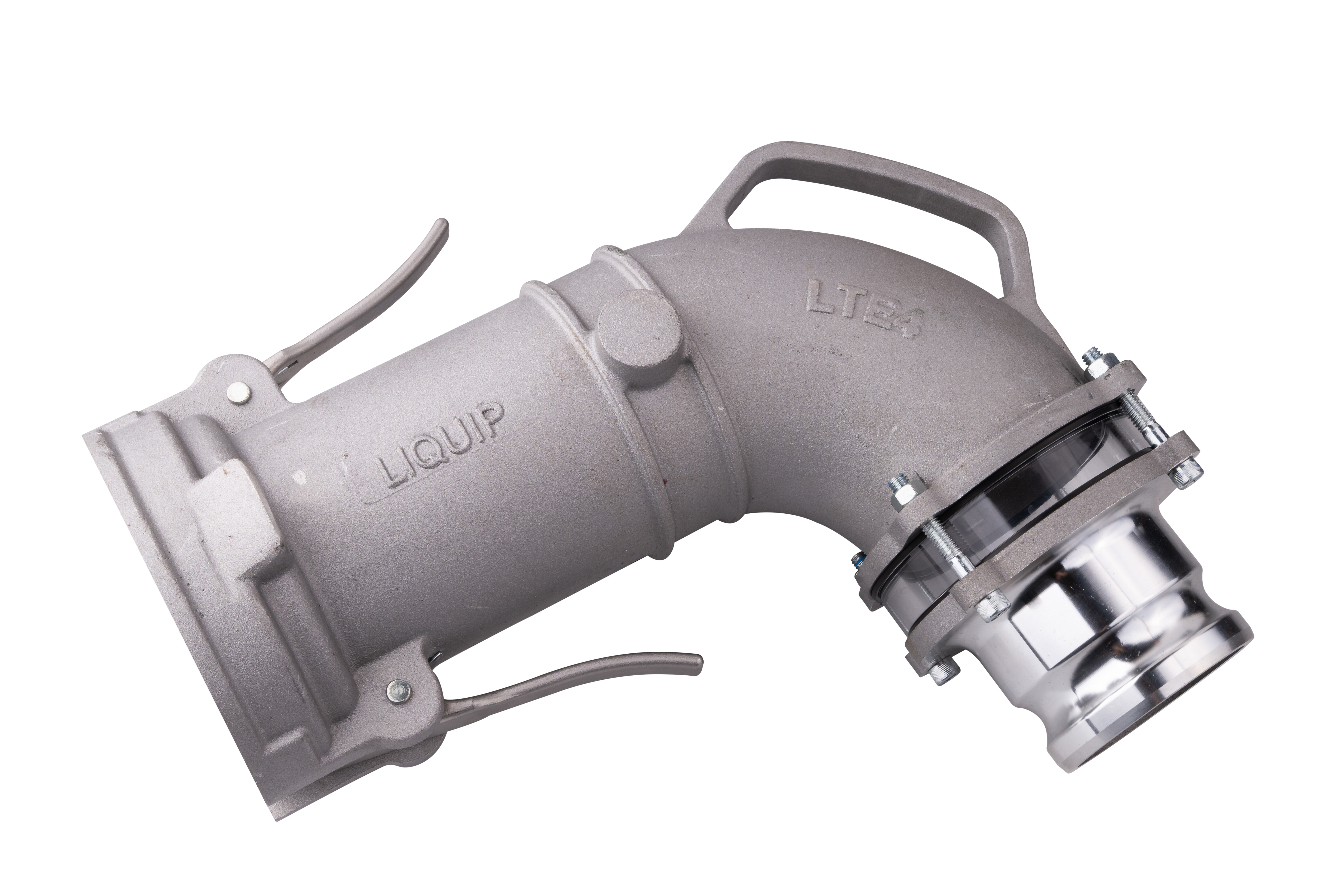

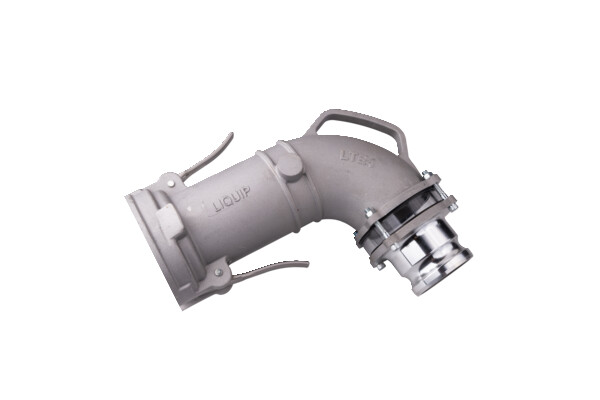

LTE3X4: Aluminium elbow 80mm male camlock x 100mm titefill elbow.

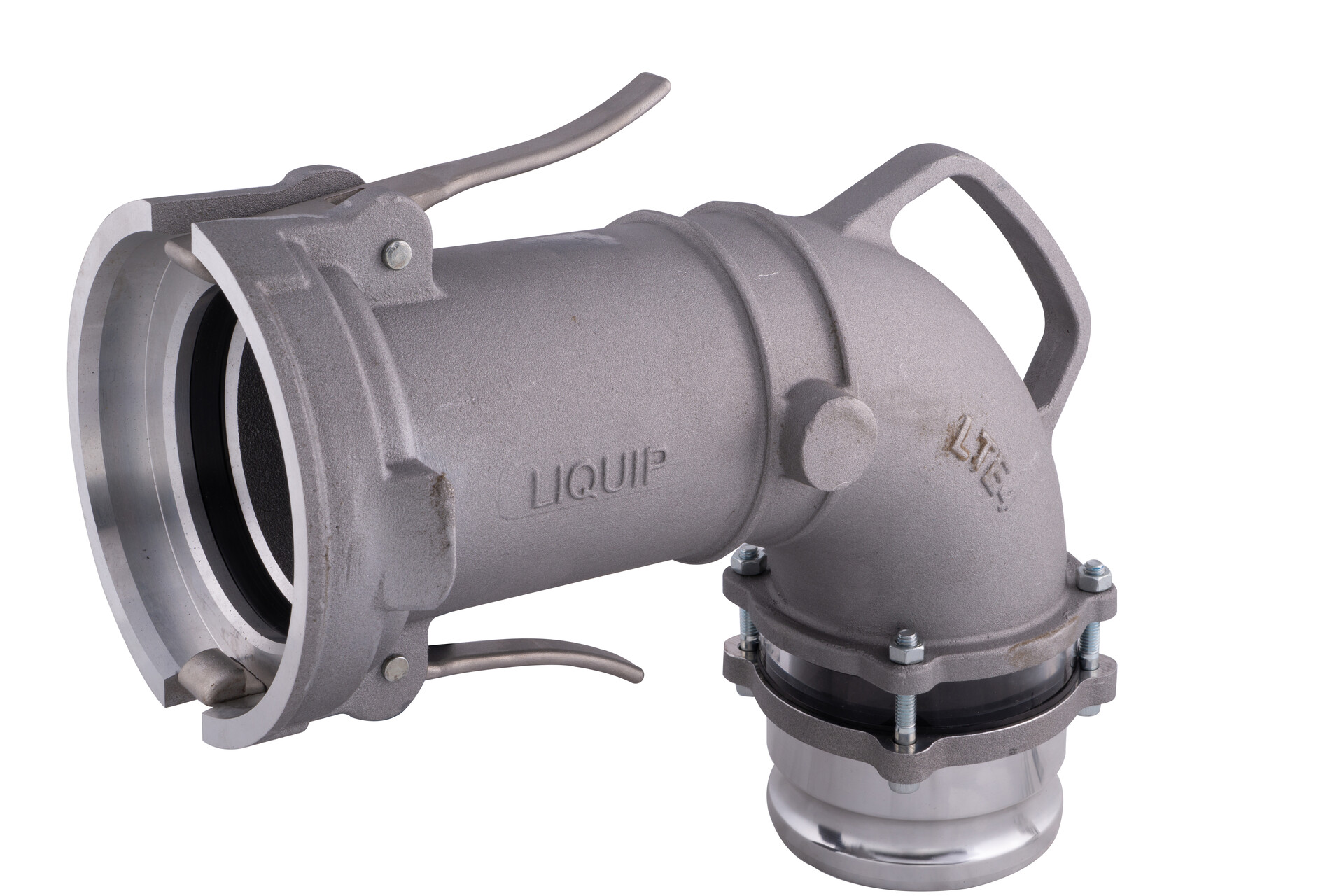

LTE4X4: Aluminium elbow 100mm male camlock x 100mm titefill elbow.

LTE4X4VG: Elbow Titefill 100mm x 100mm Camlock Viton GFLT.

LTE3X4R: Elbow Titefill 100mm x 80mm Camlock c/w Locking Ring.

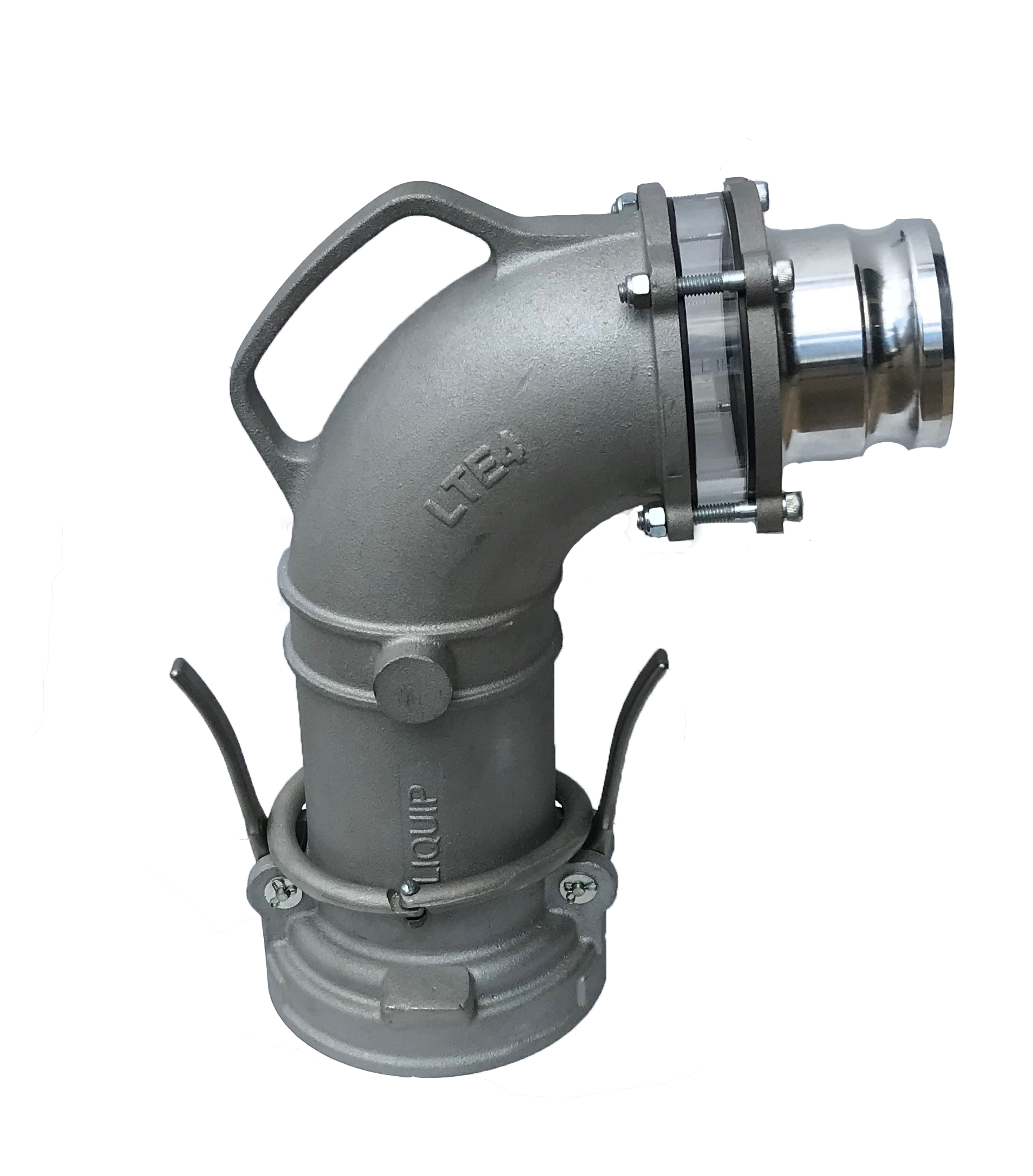

LTE4X4R: Elbow Titefill 100mm x 100mm Camlock c/w Locking Ring.

LTE4X4VGR: Elbow Titefill 100mm x 100mm Camlock Viton GFLT c/w Locking Ring.

LTE4-RINGZ: Locking Ring Kit Suit LTE4 series Titefill Elbows

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart
	LTE3X3	Aluminium elbow 80mm male camlock x 80mm titefill elbow.
	LTE3X4	Aluminium elbow 80mm male camlock x 100mm titefill elbow.
	LTE3X4R	Elbow Titefill 100mm x 80mm Camlock c/w Locking Ring.
	LTE4-RINGZ	Locking Ring Kit Suit LTE4 series Titefill Elbows
	LTE4X4	Aluminium elbow 100mm male camlock x 100mm titefill elbow.
	LTE4X4R	Elbow Titefill 100mm x 100mm Camlock c/w Locking Ring.
	LTE4X4VG	Elbow Titefill 100mm x 100mm Camlock Viton GFLT.
	LTE4X4VGR	Elbow Titefill 100mm x 100mm Camlock Viton GFLT c/w Locking Ring.
