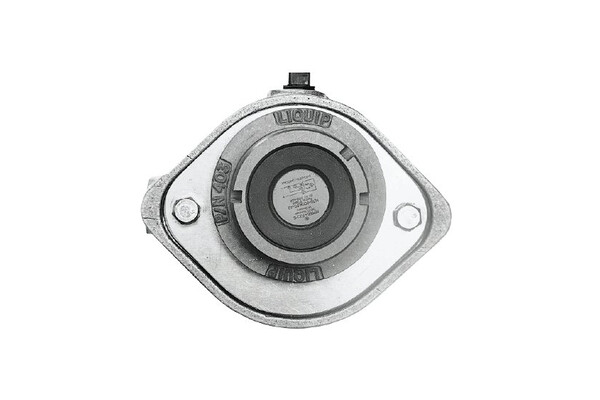

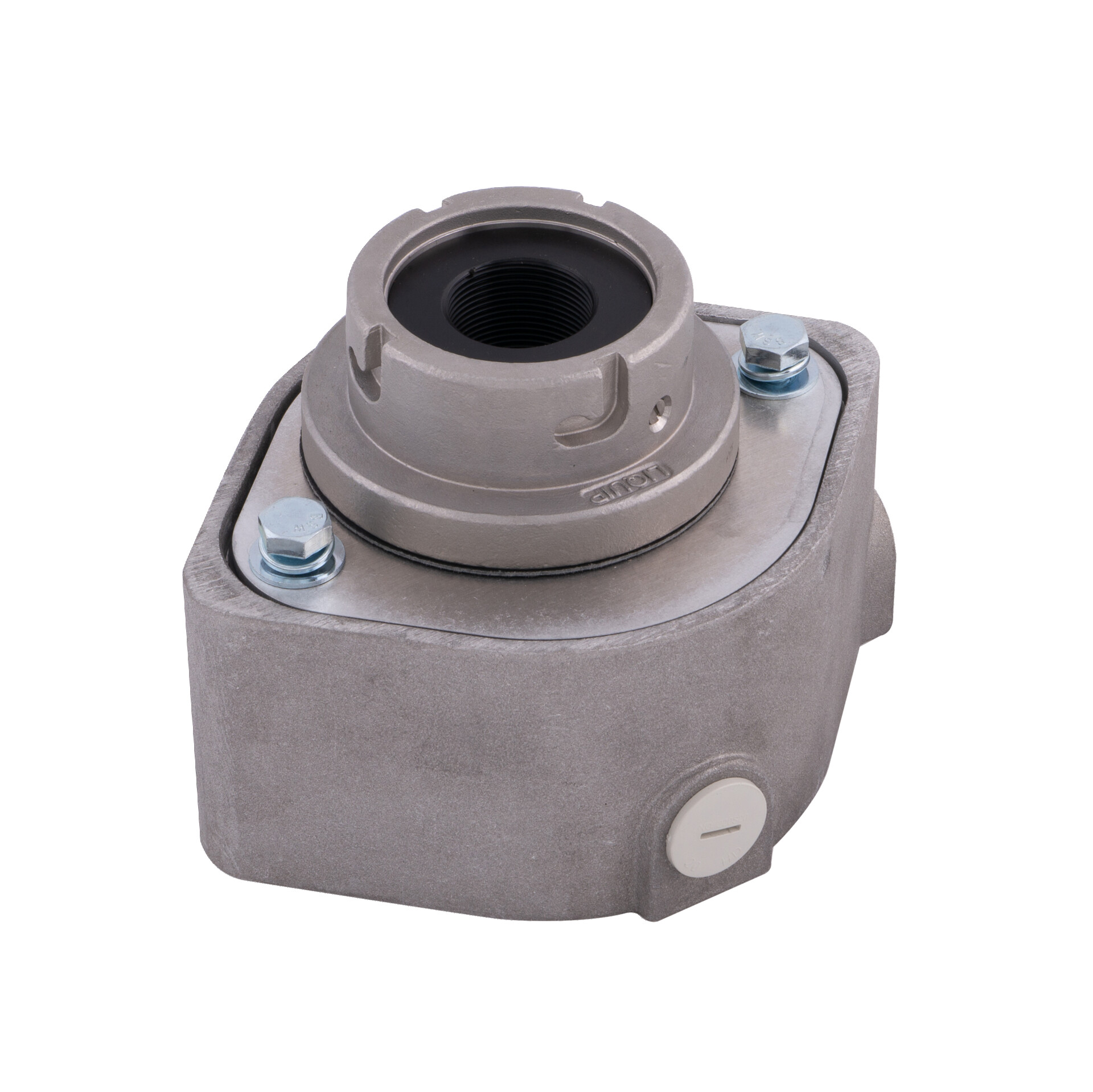

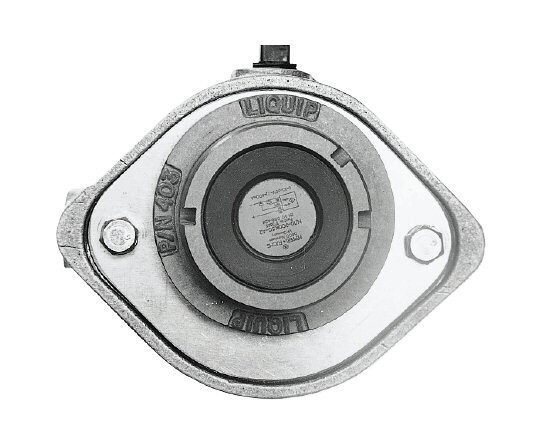

Gantry Plug Parking Adaptors



Liquip offers gantry plug parking adaptors that provide a positive safe electronic interlock that can be used with the terminal automation system to ensure that the gantry plug has been disconnected from the loading vehicle before permission to leave the gantry is granted.

Features & Benefits
  • Ensures the gantry plug has been disconnected from the loading vehicle before permission to leave the gantry is granted.
  • When the gantry plug is connected, the proximity switch sends a signal to the terminal TAS for various user functions.
  • Prevents damage to loading bay due to possible drive-aways.

Recommended products for replacement

    Technical Information

    Materials
    Aluminium nose-cone, hard anodised.
    Acetal mounting block.
    Aluminium body and cover plate.

    Mounting
    3 and 4 bayonet fixing to industry standard.
    Conduit ports 1/2” NPT (straight) thread, two options.
    Mounting by 2 stainless steel bolts 8mm dia.

    Proximity Switch
    Proximity switch size M30 x 1.5 thread specification to customer requirements.

    Weight
    1.3kg.

    Ordering Information

    TPA3: 3 Pin parking adaptor.

    TPA4: 4 Pin parking adaptor.

    Associated Equipment

    5069: Gantry plug dust cap.

    TP103: 3 Pin Truck Plug.

    TP104: 4 Pin Truck Plug.

    GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.

    GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.

    GP114: 4 pin gantry plug with self coiling cable. (Quick Release).

    GP214: 4 pin gantry plug with straight cable. (Quick Release).
