Power Filters

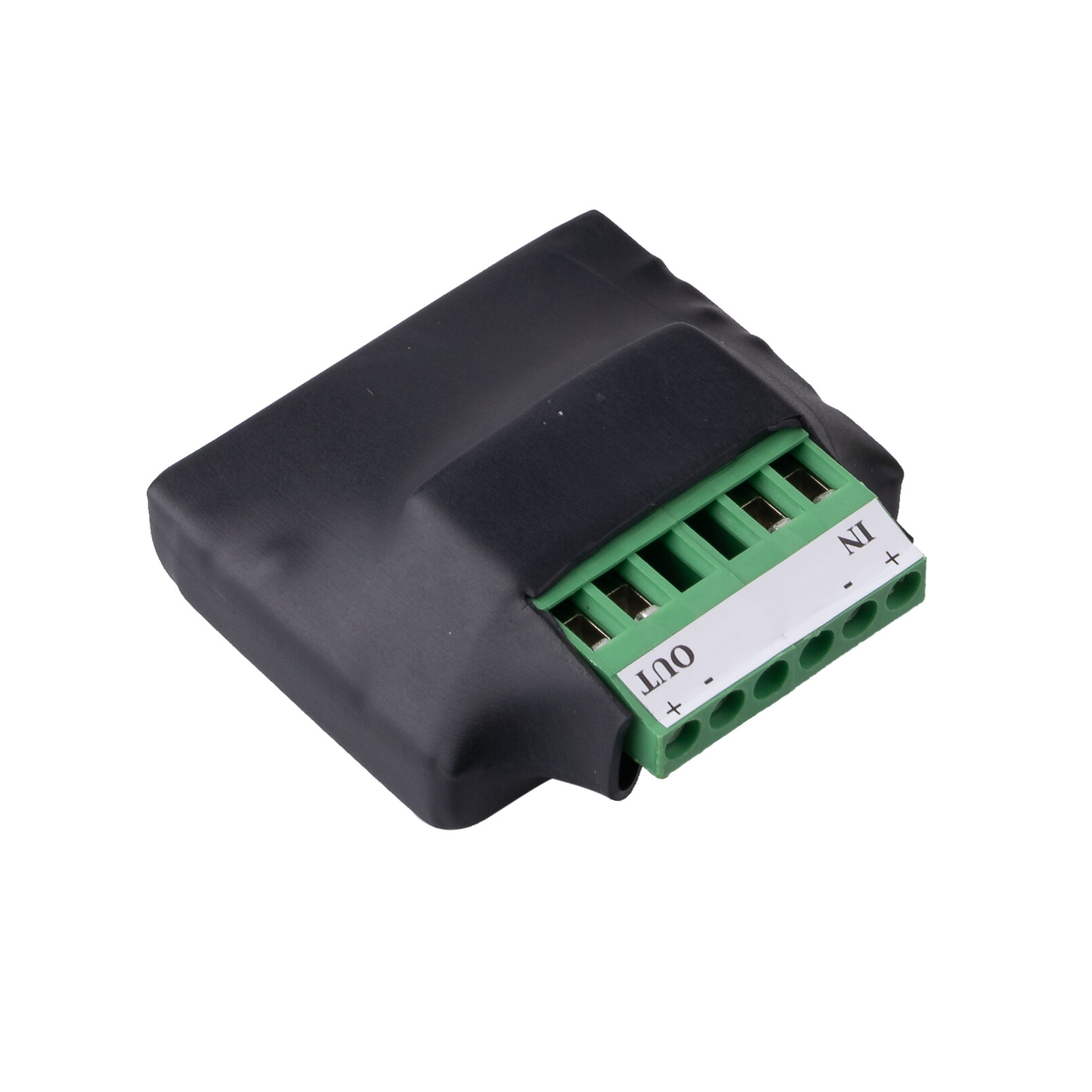

Liquip offers the DCC100, a electrical power conditioner that protects connected equipment from surges and voltage spikes generated by vehicle operation.

The DCC100 supplies 12V DC out with low noise and a wide range of input voltage from 9V to 36V DC.

Features & Benefits
  • Protects up to 50V/100ms spike.
  • Wide range of input voltage.
  • Less than 0.1V output voltage noise.
  • IP20 ingress protection.
  • Light weight design, 100 grams.

Recommended products for replacement

Technical Information

Mounting

It must be either mounted in the cab area, typically in the fuse box, or inside a junction box of IP rating 66 minimum (Liquip JBL100 or similar)

  • Ensure cable glands are rated for a minimum IP66.
  • Wire as per wiring diagram attached.
  • Ensure IP66 rated blanking plugs are used in any unused holes in junction box.

Input Voltage
 9V-36V DC.

Output Voltage
12V DC.

Maximum Load
Total 1.67A Continuous.

Recommended Fuse Rating
3.15A slow blow.

Cable Size
 0.2– 2.5mm2, strip length 6mm.

Ordering Information

DCC100: Power filter conditioner.

Associated Equipment

DFV100: Register for use in zone 1 hazardous locations.

DFV100H: Register with heated display (no approvals).

DFV103: Level Gauging CPU for use in zone 1 hazardous locations.

DFV101: Combined register & level gauging CPU for use in zone 1 hazardous locations.

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart

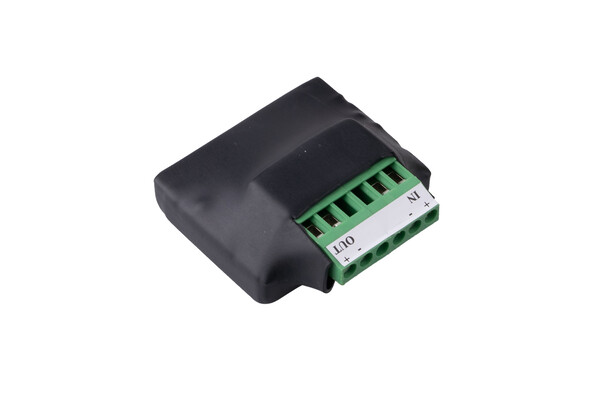

DCC100 Power filter conditioner
