Turbine Inc. LPG Turbine Meters



Liquip are the exclusive  Australia/New Zealand distributor for USA based Turbines Inc's LPG metering product line.

Turbines, Inc., is a leader in the design and manufacture of accurate turbine flow metering solutions. Their flow meters are field-proven to deliver performance in volatile environments with unmatched reliability, greater efficiency and higher value.

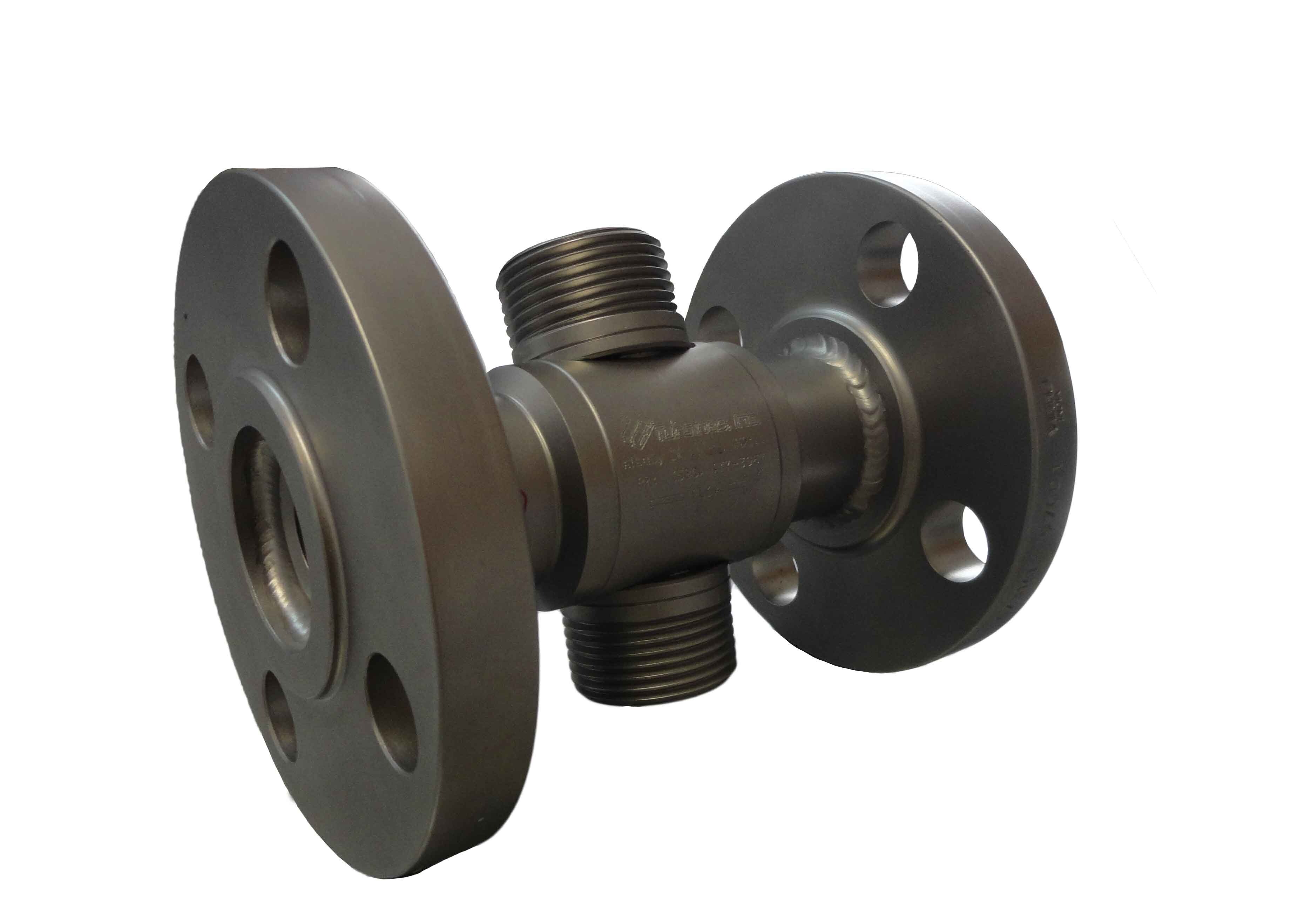

HA Series - High Accuracy LPG meters

Turbines’ High Accuracy turbine flow meters are built with
extremely tight tolerances only achievable through precision manufacturing and stringent quality control.

Features & Benefits
  • Australian NMI approved for use with Liquip’s electronic registers (DFV series).
  • Suitable for use in applications where hosereel flowrates between 15 - 710 LPM are required.
  • Customers now have a choice of meter for LPG use thanks to Turbine’s mounting footprint which allows for direct drop in replacement of other meters.

Recommended products for replacement

    Technical Information

    Calibration
    +/- 0.5% over standard flow range.

    Repeatability
    +/- 0.1% over standard flow range.

    Linearity
    +/- 0.5% over flow range.

    Operating temperature
    -267°C to +230°C (for other temperatures consult factory).

    End Connection
    Flanged 300 lb (same mounting as many similar LPG
    meters on the market for direct drop in replacement).

    Flow Rate
    HA0100-F150: 15 to 510 LPM.
    HA0150-F150: 30 to 710 LPM.

    Ordering Information

    HA SERIES METERS

    1" TURBINE METERS

    IECEx APPROVED COILS
    HA0100-F150IECEXZ: Turbine Kit 1” 150# Flanged S/S

    Complete with IECEX Coils & Enclosures.

    HA0100-F300IECEXZ: Turbine Kit 1” 300# Flanged S/S
    Complete with IECEX Coils & Enclosures.

    STANDARD COILS
    HA0100-F150Z: Turbine Kit 1” 150# Flanged S/S
    Complete with STD Coils & Enclosures.

    HA0100-F300Z: Turbine Kit 1” 300# Flanged S/S
    Complete with STD Coils & Enclosures.

    1½” TURBINE METERS

    IECEX APPROVED COILS
    HA0150-F150IECEXZ: turbine Kit 1½” 150# Flanged S/S complete with IECEX Coils & Enclosures.

    HA0150-F300IECEXZ: Turbine Kit 1½” 300# Flanged S/S complete with IECEX Coils & Enclosures.

    STANDARD COILS
    HA0150-F150Z: Turbine Kit 1½” 150# Flanged S/S complete with STD Coils & Enclosures.

    HA0150-F300Z: Turbine Kit 1½” 300# Flanged S/S complete with STD Coils & Enclosures.

    SPARE PARTS

    HA-901430: Standard Magnetic pickup coil for Turbine Inc HA Series (1 piece).

    HA-901447: IECEx approved Magnetic pickup coil for Turbine Inc HA Series (1 piece).

    HA-Y-3-EX: 1” NPT 90° Explosion-proof coil enclosure with cap for Turbines Inc HA Series.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Item Description
    Add Item into Enquiry Cart
    1" TURBINE METERS
    HA0100-F150IECEXZ TURBINE 1" 150# FLANGED S/S COMPLETE WITH IECEX COILS AND ENCLOSURES
    HA0100-F150Z TURBINE 1" 150# FLANGED S/S COMPLETE WITH STD COILS AND ENCLOSURES
    HA0100-F300IECEXZ TURBINE KIT 1" 300# FLANGED S/S COMPLETE WITH IECEX COILS & ENCLOSURES
    HA0100-F300Z TURBINE KIT 1" 300# FLANGED S/S COMPLETE WITH STD COILS & ENCLOSURES
    1½” TURBINE METERS
    HA0150-F150IECEXZ TURBINE 1½" 150# FLANGED S/S COMPLETE WITH IECEX COILS AND ENCLOSURES
    HA0150-F150Z TURBINE 1½" 150# FLANGED S/S COMPLETE WITH STD COILS AND ENCLOSURES
    HA0150-F300IECEXZ TURBINE KIT 1½" 300# FLANGED S/S COMPLETE WITH IECEX COILS & ENCLOSURES
    HA0150-F300Z TURBINE KIT 1½" 300# FLANGED S/S COMPLETE WITH STD COILS & ENCLOSURES
    SPARE PARTS
    HA-901430 Standard Magnetic pickup coil for Turbine Inc HA Series (1 piece).
    HA-901447 IECEx approved Magnetic pickup coil for Turbine Inc HA Series (1 piece).
    HA-Y-3-EX 1” NPT 90° Explosion-proof coil enclosure with cap for Turbines Inc HA Series.
