Air Actuators

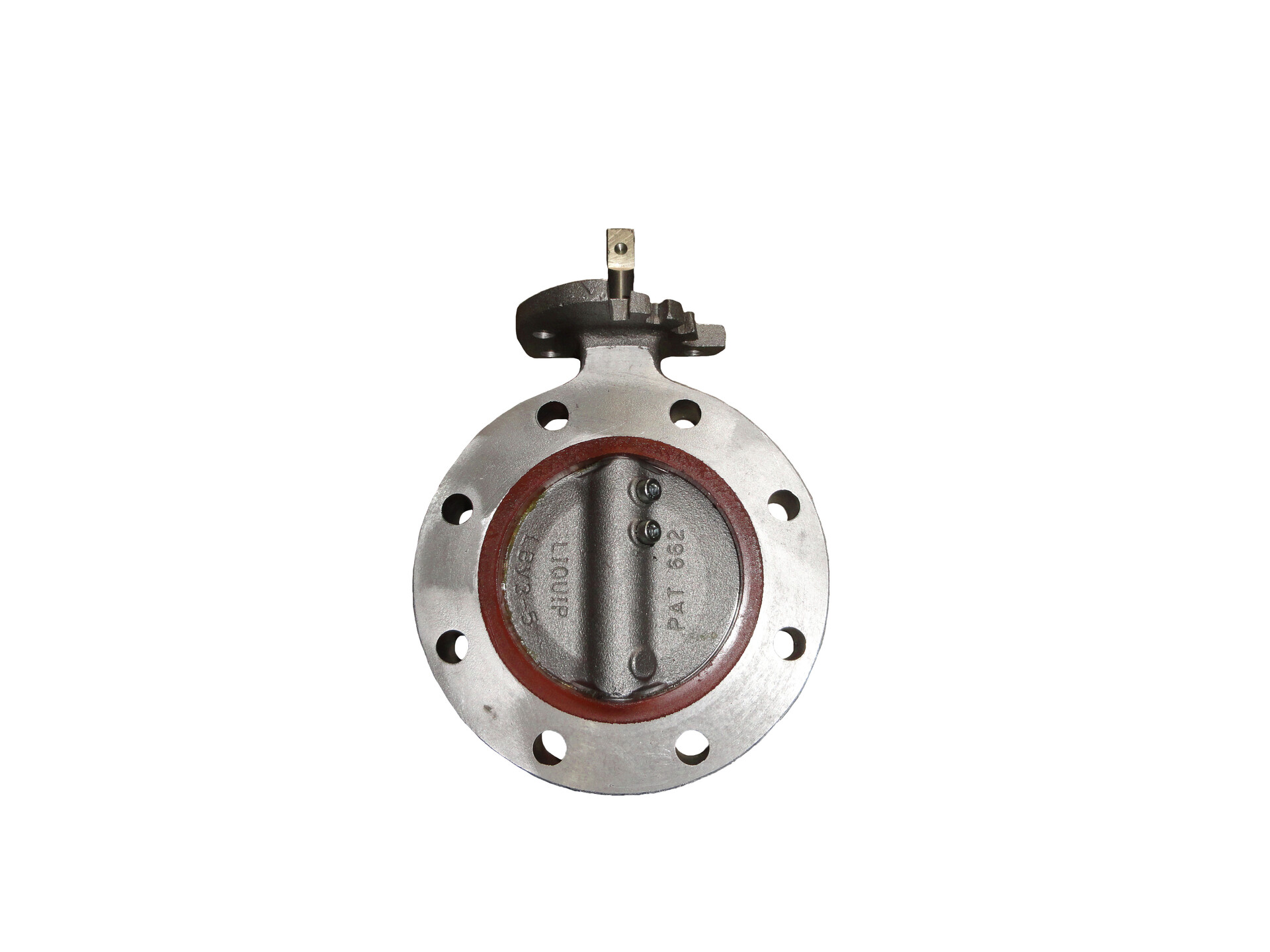

The LBV3-LA (3”) and LBV4-LA (4”) butterfly valves are machined to be fitted with either a double acting or spring return pneumatic actuator.

The LBV3-LA, LBV4-LA and pneumatic actuators can be purchased separately or as part of a ‘Z-Kit’, which includes a 3” or 4” machined butterfly valve and either a double acting or spring return air actuator, plus mount kit. These Z-kits are supplied unassembled.

These actuated butterfly valves can be operated in conjunction with a manifold (DM104) or a product transfer pipe.

Features & Benefits
  • Double acting or spring return air actuators available.
  • High performance in a compact design.
  • High torque value.

Recommended products for replacement

    Categories
    Technical Information

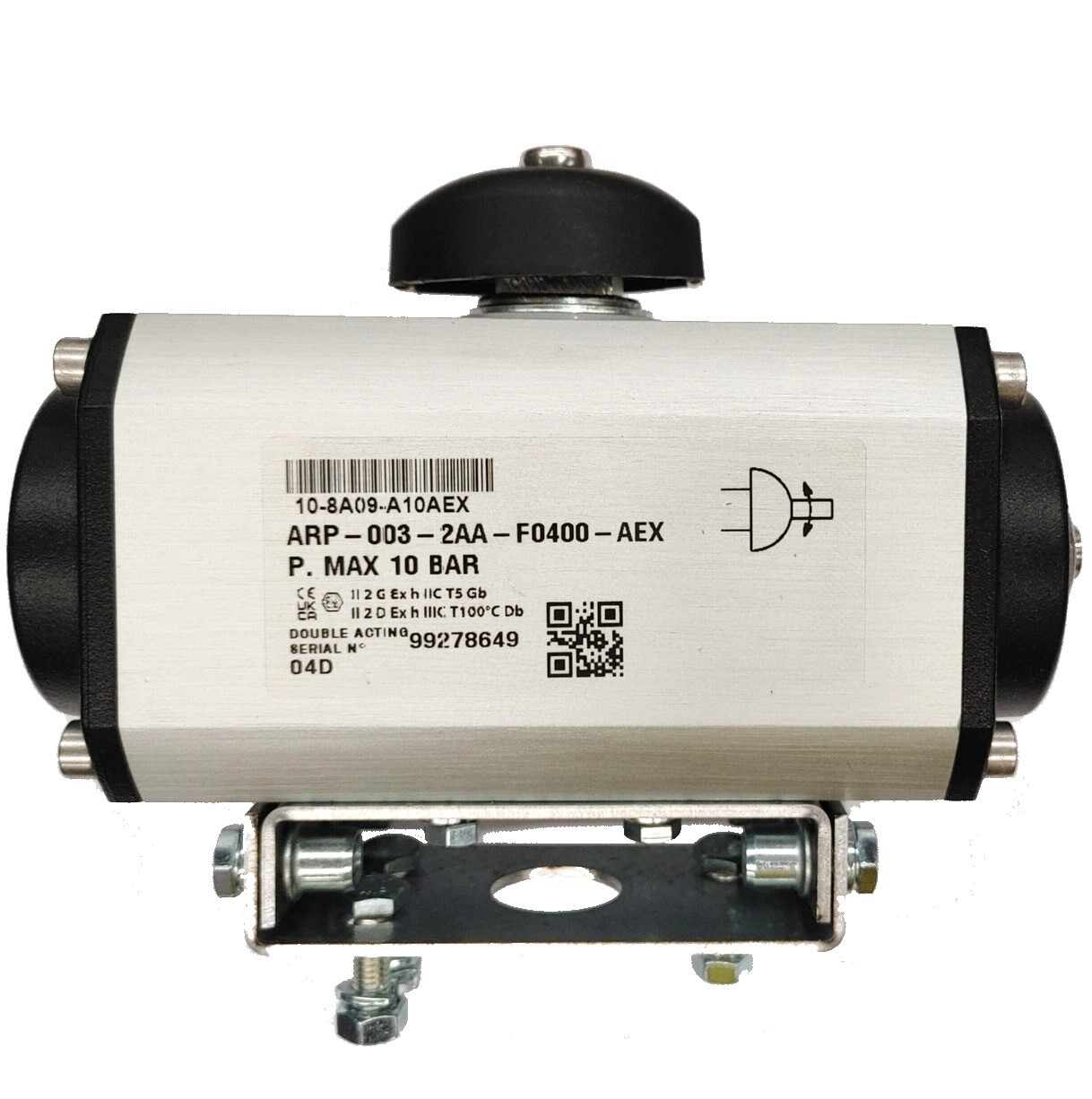

    Air Actuator (LBV-AA)
    Dimensions
    172.6mm x 105.2mm x 82.7mm.

    Supply Pressure Air
    250 kPa - 800 kPa.

    Temperature
    -10°C to 80°C.

    Minimum pressure to actuate
    2.5 bar to open and close (providing 14Nm of
    torque).

    Weight
    1.99kg.

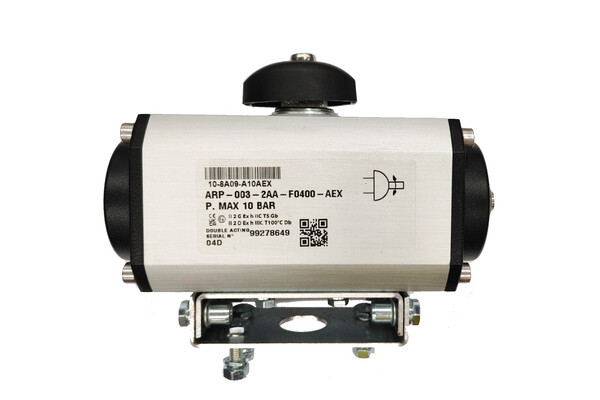

    Spring Return Actuator (LBV-AASR)
    Dimensions
    242.0mm x 136.9mm x 109.2mm.

    Supply Pressure
    450 kPa - 800 kPa.

    Temperature
    -10°C to 80°C.

    Minimum pressure to actuate
    4.5 bar.

    Weight
    4.4 kg.


    Ordering Information

    LBV-AA: Air Actuator.

    LBV-AASR: Spring Return Air Actuator.

    LBV3-LA: 3” machined butterfly valve.

    LBV3-AAZ: 3” Butterfly Valve & Air Actuator.

    LBV3-AASRZ: 3” Butterfly Valve & Spring Return Actuator. (not suitable for use with 4" manifold systems).

    LBV4-LA: 4” machined butterfly valve.

    LBV4-AAZ: 4” Butterfly Valve & Air Actuator.

    LBV4-AASRZ: 4” Butterfly Valve & Spring Return Actuator.

    Associated Equipment

    BF3: 75mm TTMA aluminium flange (also available in mild & stainless steels).

    0656: 75mm TTMA NBR cork gasket.

    4287: 75mm TTMA Klingerite gasket.

    0656V: 75mm TTMA Viton gasket.

    BF4: 100mm TTMA aluminium flange (also available in mild & stainless steel).

    0657V: 100mm TTMA Viton gasket.

    4248: 100mm TTMA Klingerite gasket.
