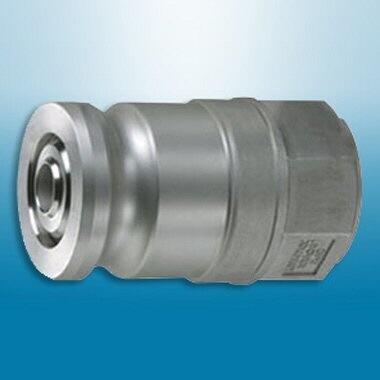

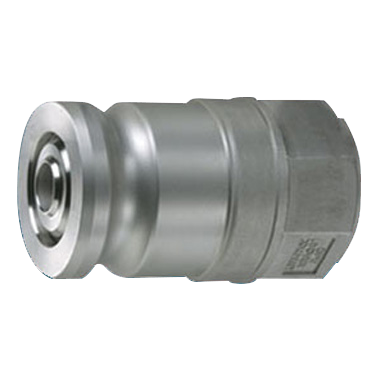

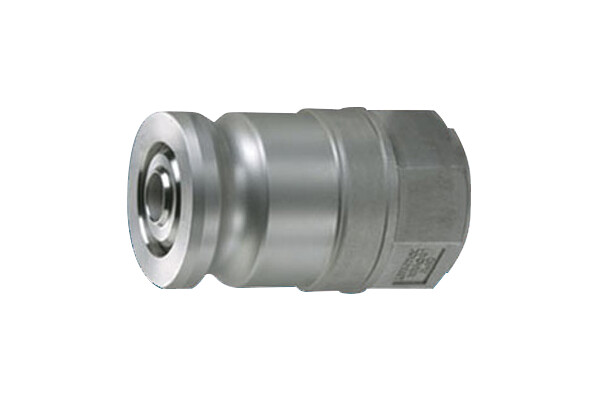

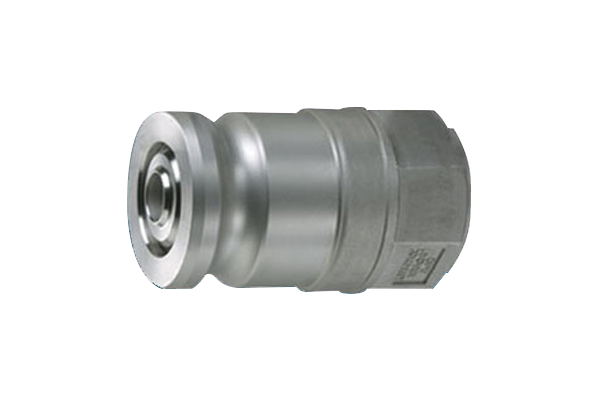

1600AN Series Kamvalok Adaptor



The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok® Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.

Why Use Kamvaloks?

Kamvalok Applications

Features & Benefits
  • Available in 1 ½”, 2” & 3” Sizes
  • Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel)
  • Female Threads – Can be fitted to either a male pipe end or to a hose fitting
  • Spring-Loaded Poppet Design – Assures fast closing and a tight seal
  • Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
  • Single Piece Design – Eliminates a possible leak path.
  • Spill Prevention – Poppet-actuated design can only be opened with a Kamvalok® coupling; designed to provide a tight seal when closed.
  • Reliability of Operation – The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long-life operation.
  • Optimum Flow Rate – Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence.

Recommended products for replacement

    Technical Information

    Available sizes
    Available in 1½”, 2" and 3” Sizes.

    Housing Materials
    Available in aluminium, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel).

    Seal Materials
    Range of seals including: Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®.

    Thread
    Female Threads – Can be fitted to either a male pipe end or to a hose fitting.

    Dimensions



      1 1/2" 2" 3"
    A 4-3/4" 4-15/16" 6-17/32"
    B 2-1/2" 3-1/4" 4-1/2"
    C 1-1/2" 2" 3"
    D 2-21/32" 3-1/4" 4-7/8"

    Repair Kits

    Coming soon

    Parts Breakdown

    Coming soon

    Temperature/Pressure Chart

    chart-1700dl-d2000-temp-pressure

    Flow Chart

    Coming soon

    Temperature Chart

    Coming soon

    Kamvalok Operation

    Approvals

    AAR Number Description
    E129504 1600AN Series Kamvalok Adpater – Threaded
    E129505 1600ANF Series Kamvalok Adapter – Flanged
    E129507 634B/733DCL Series Kamlok/Autolok Dust Caps



    CRN Number Region Description
    OA4911.52 Alberta 1.5”, 2”, 3” Aluminum and SST Kamvalok
    OA4911.5R1 Ontario 1.5”, 2”, 3” Aluminum and SST Kamvalok

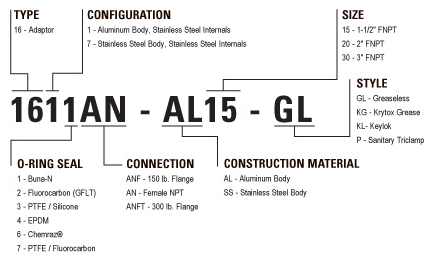

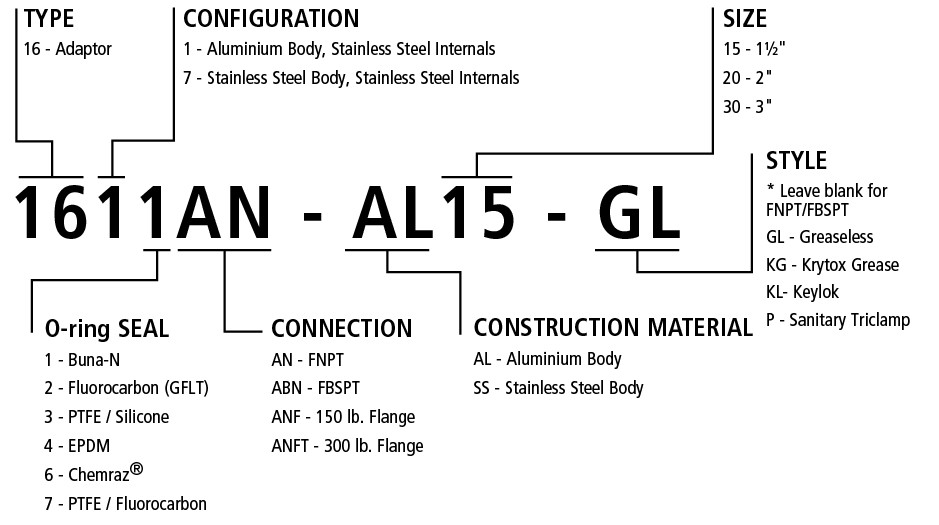

    Ordering Information

    Common Models

    1612ABN-AL15: 1½" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
    1611ABN-AL20: 2" Kamvalok Adaptor, Aluminium, Buna, BSPT thread.

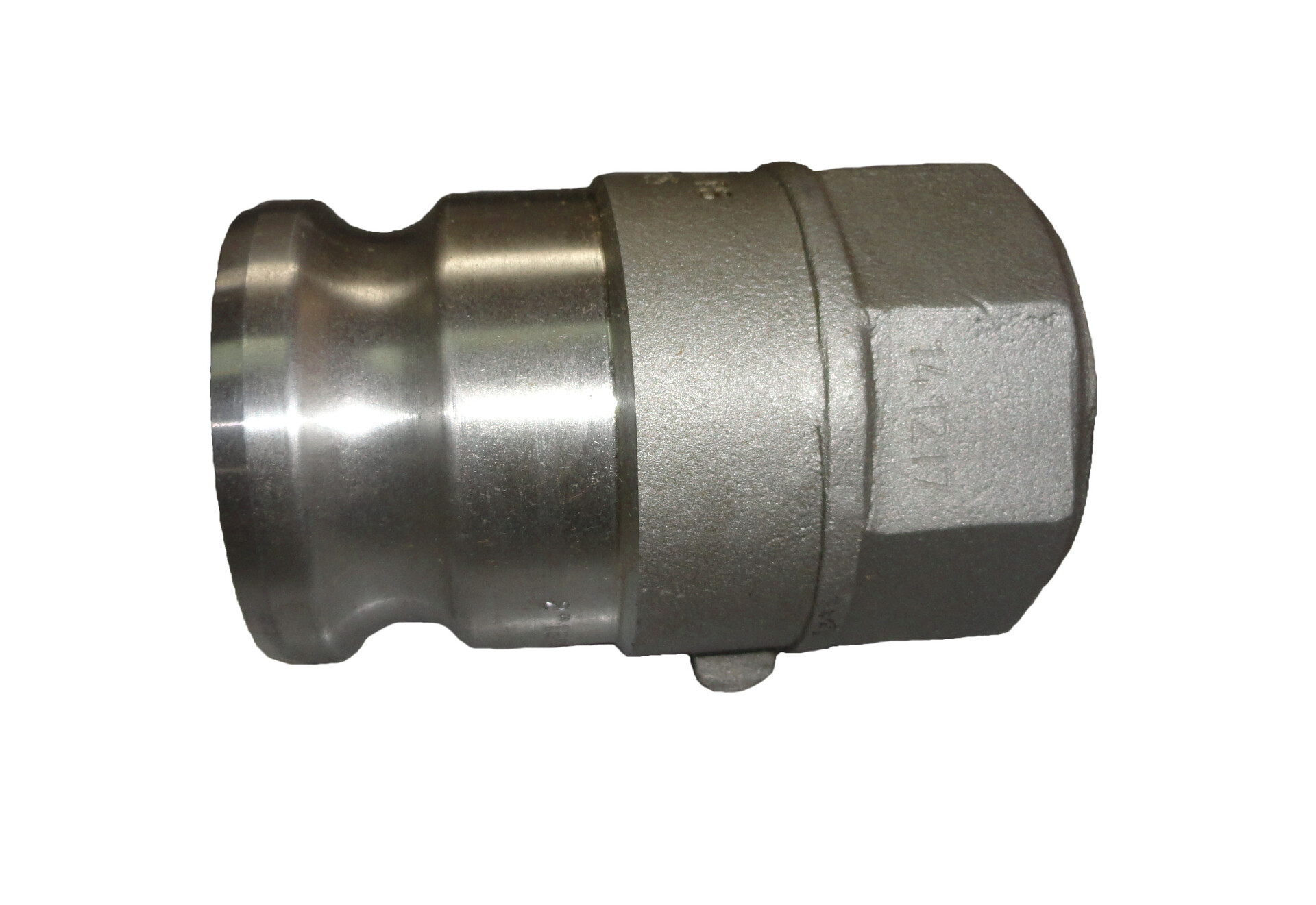

    1612ABN-AL20:
    2" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
    1612AN-AL20: 2" Kamvalok Adaptor, Aluminium, Viton, FNPT thread.
    1613ABN-AL20:
    2" Kamvalok Adaptor, Aluminium,  TFE/SIL, BSPT thread.
    1612ABN-AL30: 3" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.

    1672ABN-SS15: 1½" Kamvalok Adaptor, SST, Viton, BSPT thread.
    1672AN-SS20: 2" Kamvalok Adaptor, SST, Viton, FNPT thread.
    1672ABN-SS20: 2" Kamvalok Adaptor, SST, Viton, BSPT thread.
    1672AN-SS30: 3" Kamvalok Adpator, SST, Viton, FNPT thread.
    1673ABN-SS30: 3" Kamvalok Adaptor, SST, PFTE, BSPT thread.

    Full Range

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    1611ABN-AL20 2" Kamvalok Adaptor, Aluminium, Buna, BSPT thread.
    1612ABN-AL15 1½" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
    1612ABN-AL20 2" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
    1612ABN-AL30 3" Kamvalok Adaptor, Aluminium, Viton, BSPT thread.
    1612AN-AL20 2" Kamvalok Adaptor, Aluminium, Viton, FNPT thread.
    1613ABN-AL20 2" Kamvalok Adaptor, Aluminium, TFE/SIL, BSPT thread.
    1672ABN-SS15 1½" Kamvalok Adaptor, SST, Viton, BSPT thread.
    1672ABN-SS20 2" Kamvalok Adaptor, SST, Viton, BSPT thread.
    1672AN-SS20 2" Kamvalok Adaptor, SST, Viton, FNPT thread.
    1672AN-SS30 3" Kamvalok Adpator, SST, Viton, FNPT thread.
    1673ABN-SS30 3" Kamvalok Adaptor, SST, PFTE, BSPT thread.
