Pantograph Loading Arms

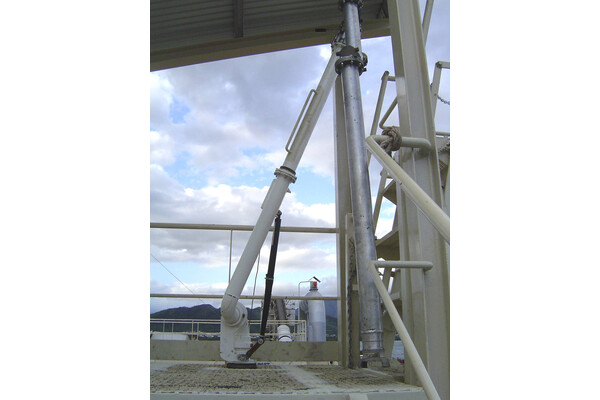

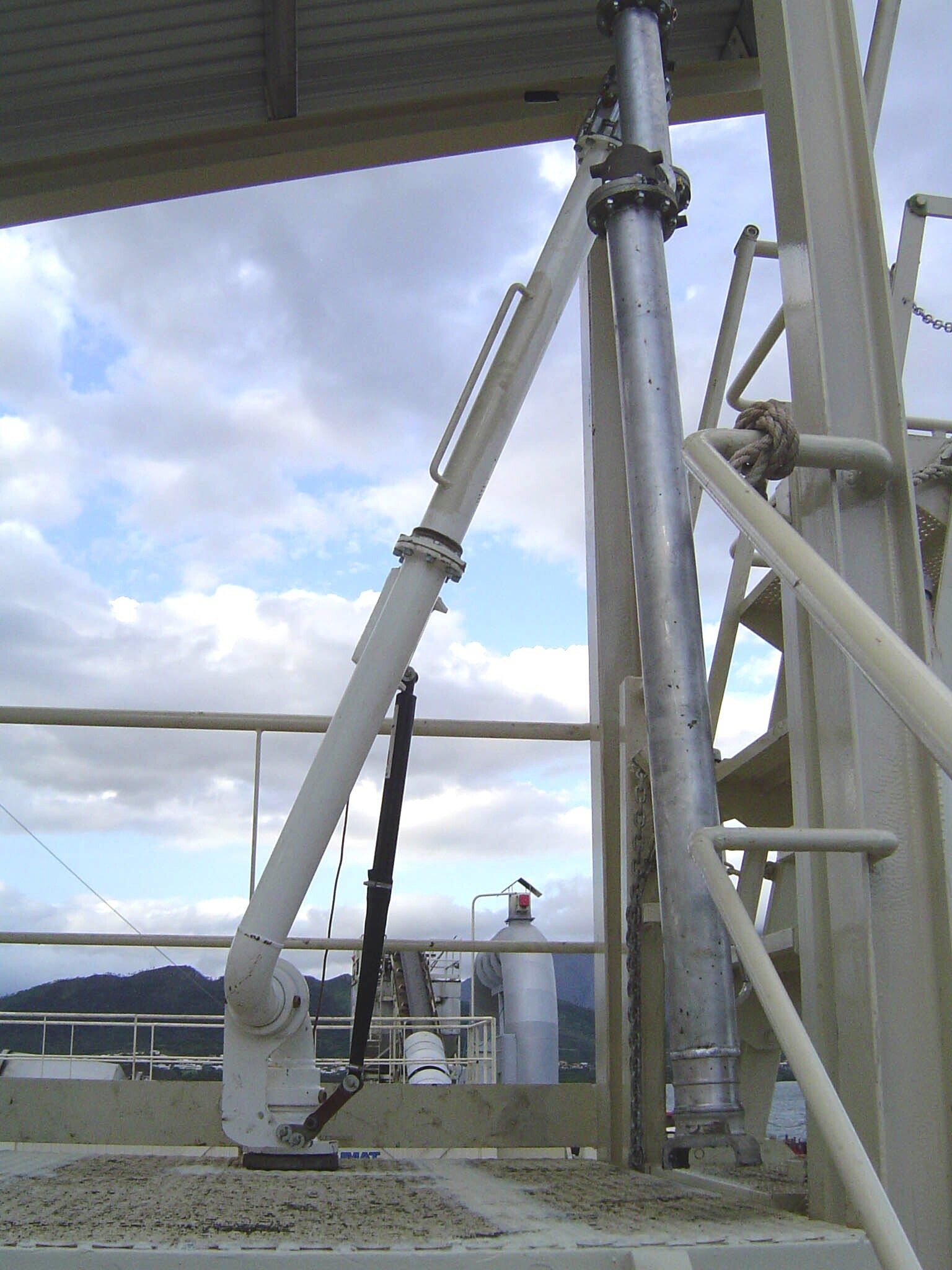

Pantograph top loading ams are a very commonly used style of top load arm all around the world.

Liquip specialise in offering balanced pantograph arms for superior strength and stability. Pantograph arms are a simple and affordable design for medium duty applications.

Features & Benefits
  • Long reach arms for ease of loading.
  • Unique design allows for high flow rates to be achieved.
  • Easily access a single sided loading bay.
  • Vacuum breakers are available to assist drainage of the loading arm.
  • Uses Liquip's unique gas strut "Velvet Touch" technology.

Recommended products for replacement

Categories
Technical Information

Configuration
Up to 4 arms per bay (5 or 6 arm bays are possible, but consult Liquip for details).

Horizontal reach
Up to 2,600mm (longer horizontal reach is possible but dependent on design). Contact Liquip for assistance.

Flow Rates
Typical flow rates are up to 1,500LPM.

Ordering Information

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the Liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

Pantograph loading components

  • Balance Assembly.
  • Gas Struts.
  • Loading Valve.
  • Intermediate Swivels.
  • Remote handle.
  • Spools.
  • Drop spear.

Options:

  • Position indicating brackets.
  • Rotation limiter.
  • Diffuser.
  • Spear mounted overfill protection sensor.
  • Up/down stops.
  • Butterfly Valves.
  • Sightglasses.
  • Riser Pipes.
