Hatch Weather Covers - HWC451 Series



Liquip's hatch weather covers mount onto the manhole and protect against the ingress of water into compartments and deter unauthorised access to the compartment hatches.

Recommended products for replacement

Features & Benefits
  • Composite Anti Static material.
  • Complies with AS2809.
  • Australian double drop tested.
  • Simple stainless steel split pins allow for easy removal for maintenance.
  • Quick release rubber clamp allows for quick opening and closing of the cover.
  • Cover has a cut out for the vapour vent (AVV vent) to connect to the vapour coaming.
  • Compatible with the VOH451 series of hatches.
Technical Information

Operation
Liquip hatch weather covers are hinged on one end with an over-centre rubber clamp latch on the opposite end.

To allow full access to the hatch cover, unhook the clamp and lift the cover.

Adjustment or Service
Latching end is self-centring.

Materials
Cover - Composite Anti Static material.
Clampband & fasteners - Zinc plated mild steel.
Hinge bracket on cover - Cast aluminium.

Mounting
HWC451 has an integrated clampband which replaces the standard clampband to secure the VOH hatch.

Weight
3.8kg.

Ordering Information

HWC451: Hatch Weather Cover Assembly suit VOH451 without AVV cut out.

HWC451C: Hatch Weather Cover Assembly suit VOH451 with AVV cut out.

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart

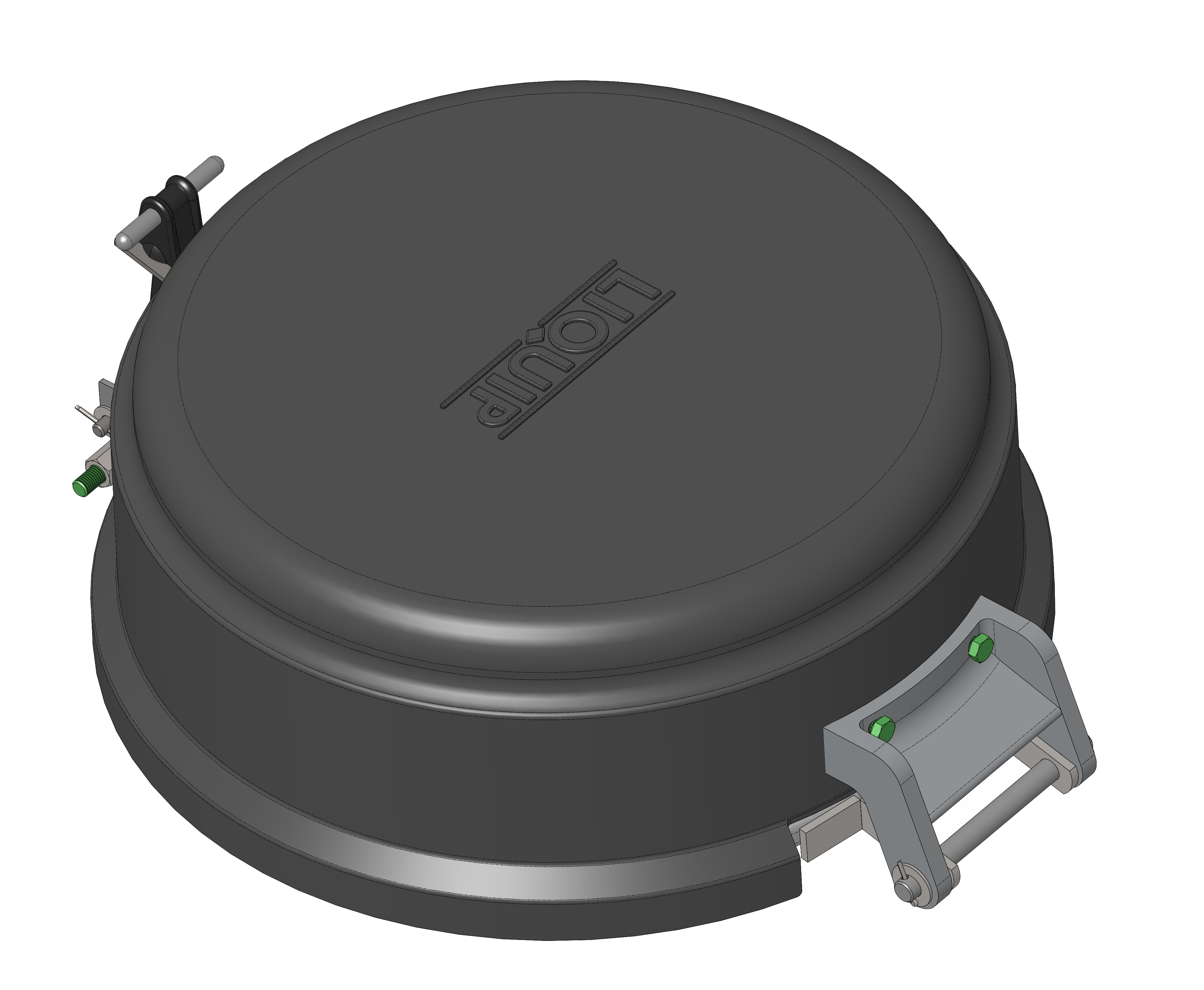

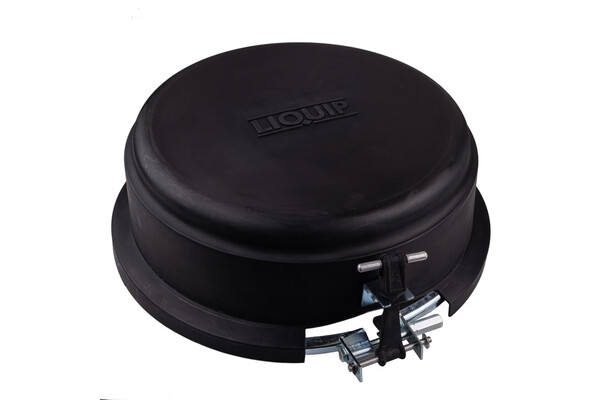

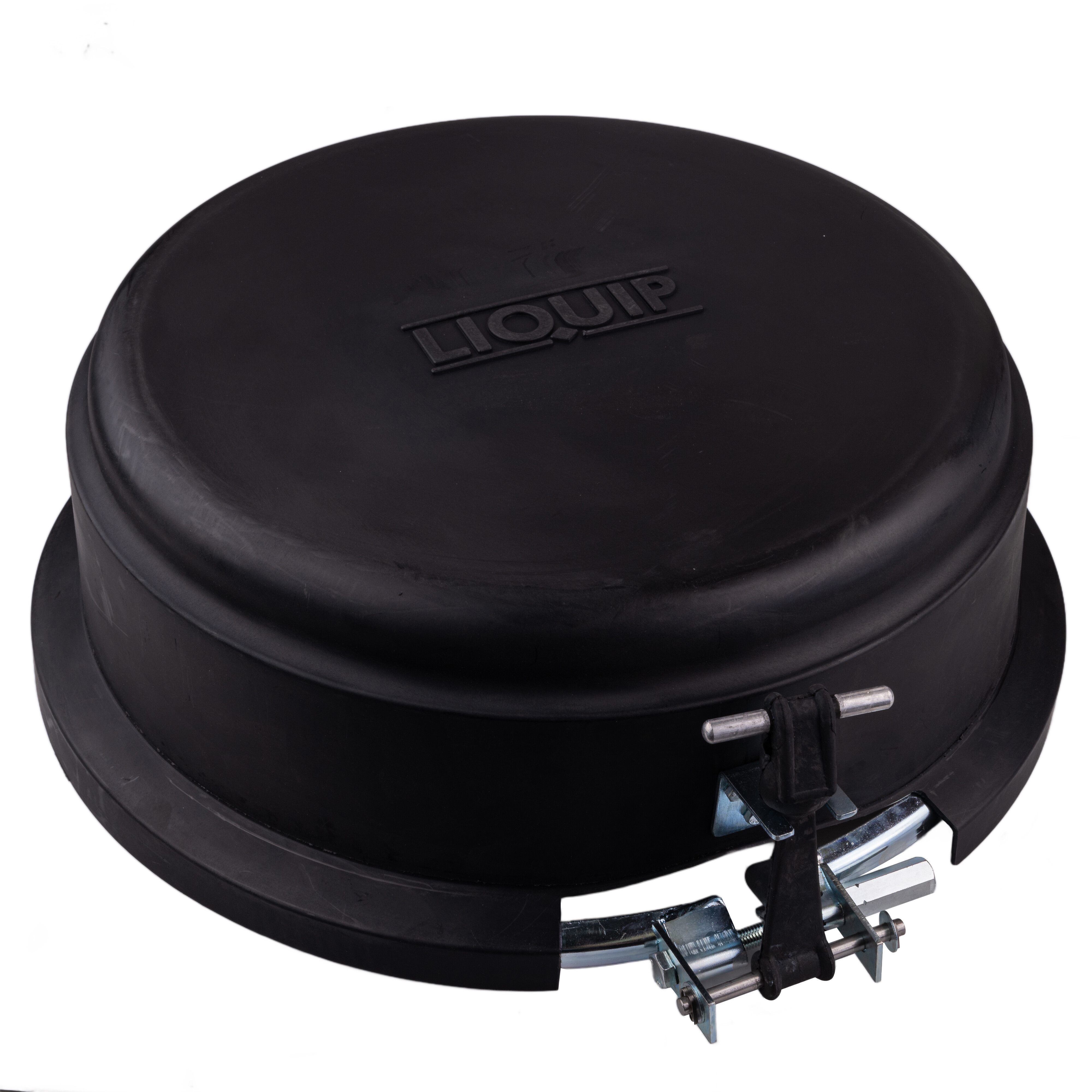

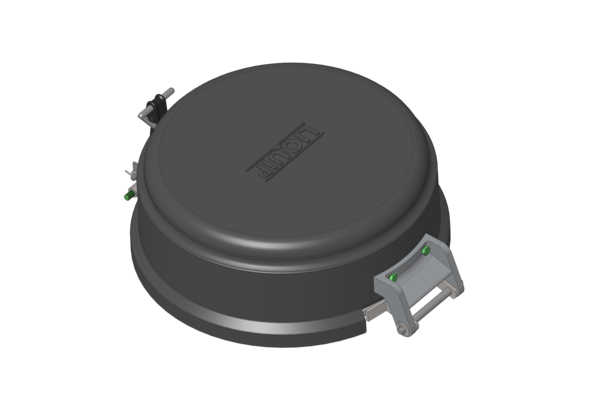

Hatch Weather Cover - HWC451 with cut out shown HWC451 Hatch Weather Cover Assembly suit VOH451 without AVV cut out.

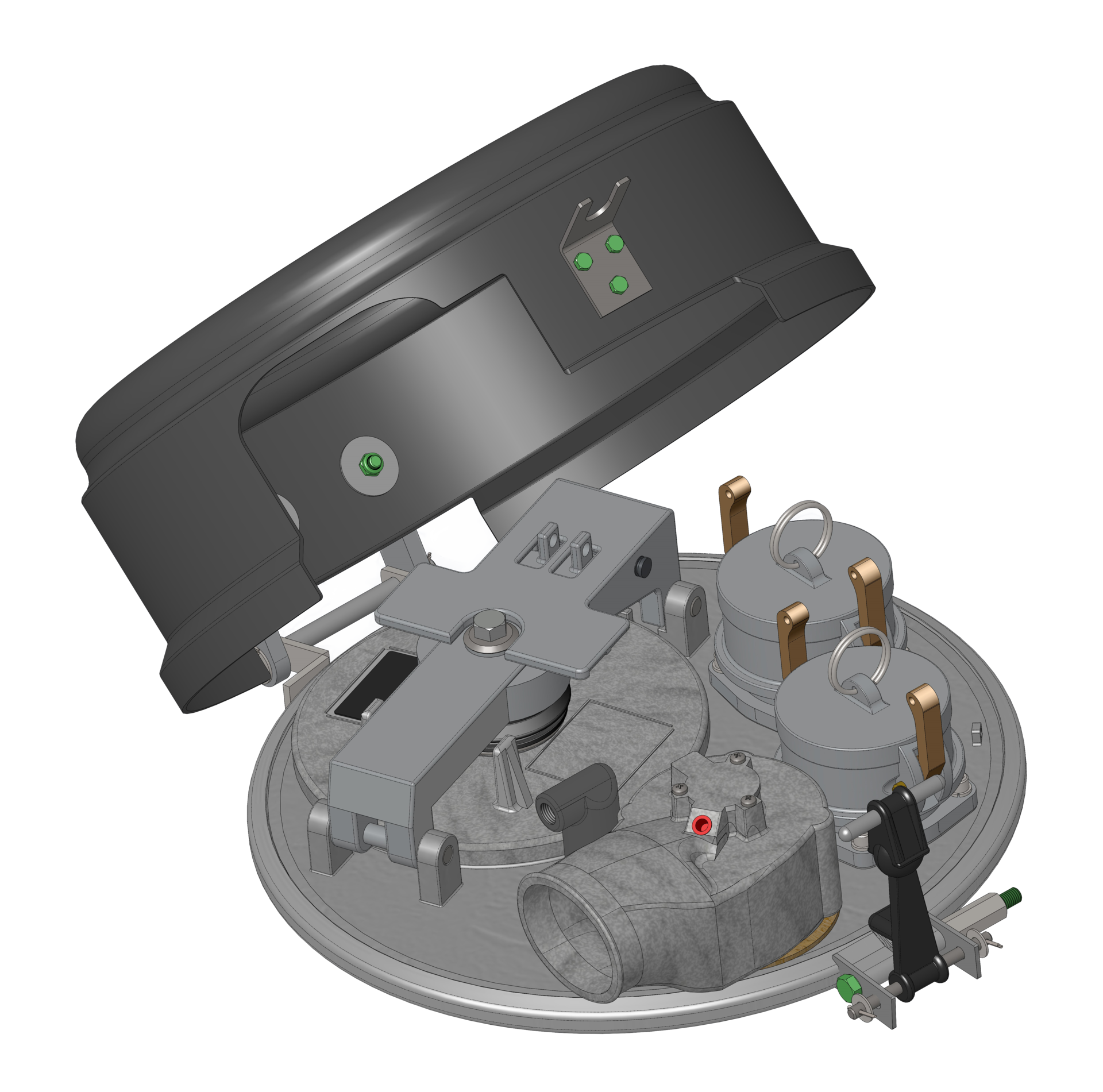

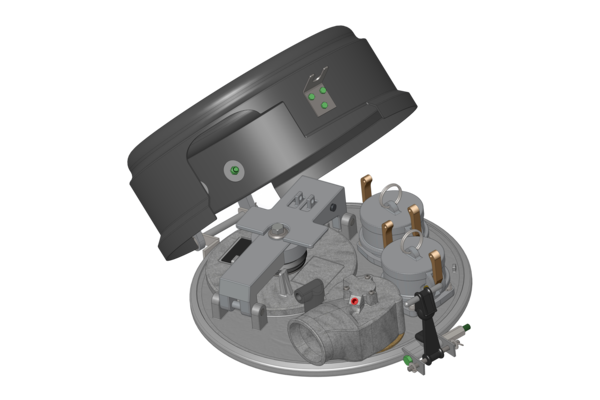

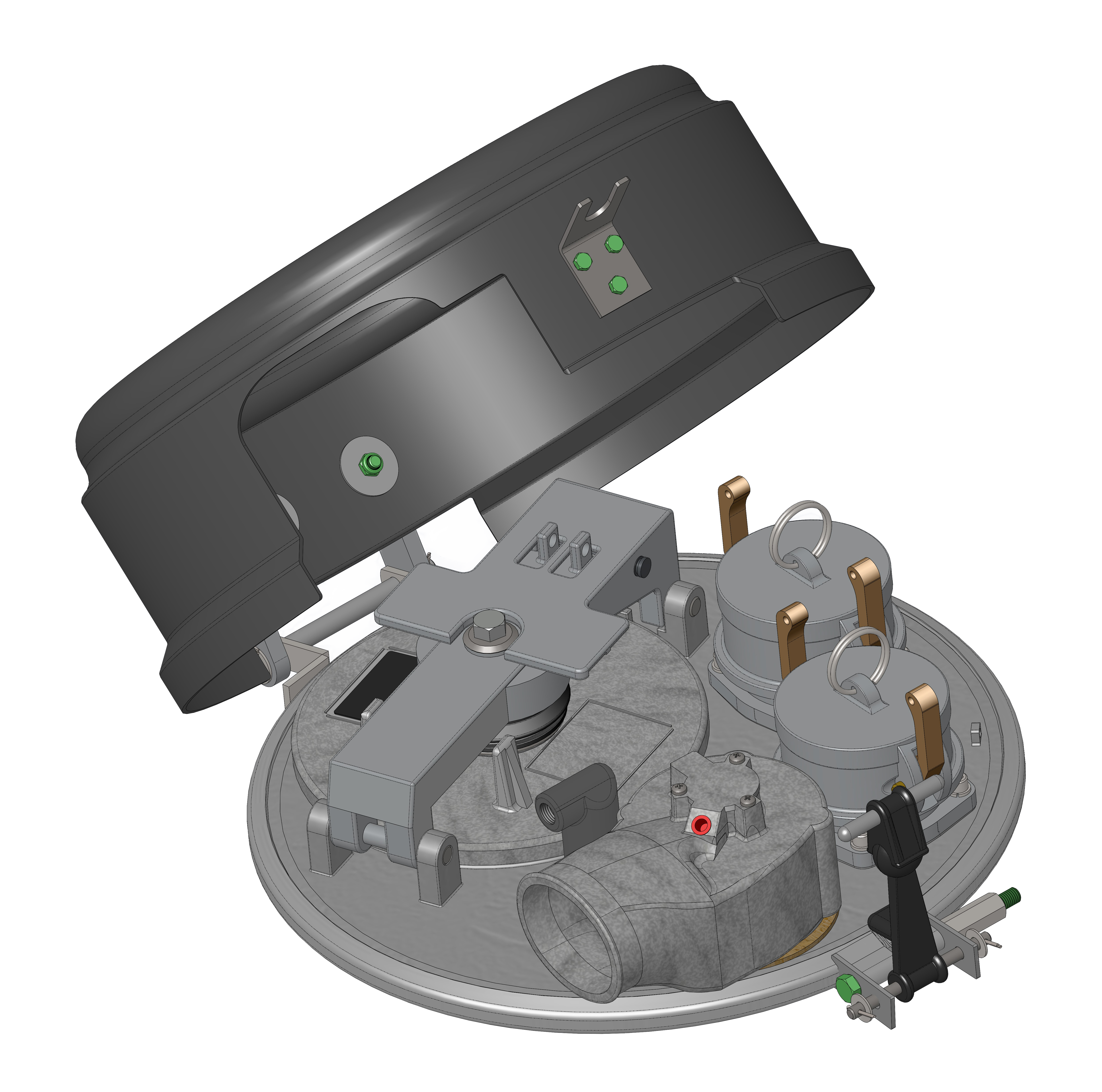

Hatch Weather Cover - HWC451 on VHO451 series hatch HWC451C Hatch Weather Cover Assembly suit VOH451 with AVV cut out. (hatch and accessories not included)
