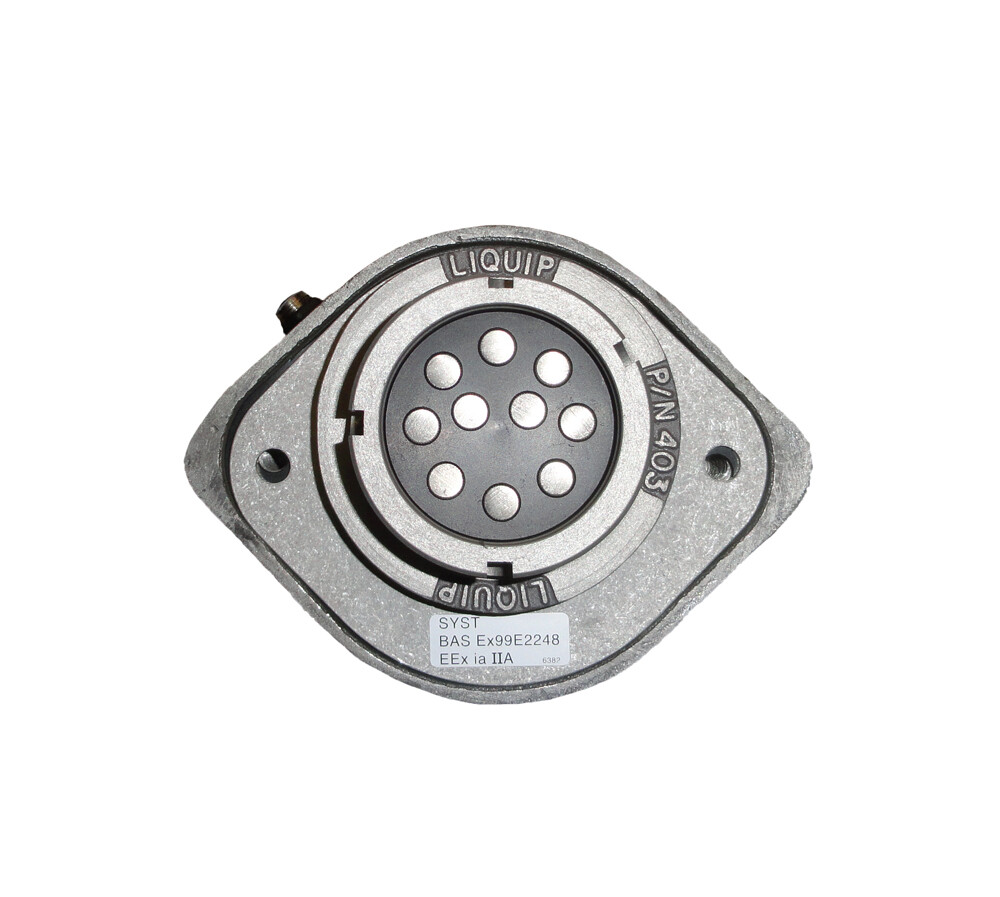

Truck Plug with Electrical Pressure Switch



Liquip offers truck plugs with added pressure switch and ground assurance to suit 2 wire and 5 wires overfill systems with 3 or 4 pin bayonet fastening (J-slots).

A pneumatic pressure switch has been built into a standard truck socket so that the latest generation of tankers can use this switch to automatically link into the pneumatic logic and ensure the correct pressure keeps the system operating.

The design of Liquip's truck plugs is unique in that it ensures grounding of the tanker to the gantry by using the mounting bolts inside the truck plug.

Features & Benefits
  • Pressure switch can be used to prevent loading until all connections are made.
  • 3 and 4 bayonet style J-slots fixing to industry standard.
  • 10 pin as standard.
  • Allows for overfill protection with added ground assurance.
  • Sufficient room to easily install and mount dummy probe as required in 2 wire systems.

Recommended products for replacement

    Technical Information

    Materials
    -Aluminium nose-cone, hard anodised.
    -Stainless steel pins and terminator.
    -Acetal mounting block.
    -Aluminium body and cover plate.
    -PVC cap. Order separately, see below.

    Mounting
    Mounting by 2 stainless steel bolts 8mm dia via acetal insulating bushes.

    3 and 4 bayonet fixing to industry standard.

    Conduit ports 1/2” NPT (straight) thread, two options. 10 pin as standard.

    Weight
    1.3kg.

    Ordering Information

    ITP113: truck plug with electrical pressure switch and 3 pin bayonet fastening

    ITP114: truck plug with electrical pressure switch and 4 pin bayonet fastening (use also for 2 pin).

    ITP103: 3 pin bayonet fastening with pneumatic interlock.

    ITP104: 4 pin bayonet fastening with pneumatic interlock.

    Associated Equipment

    5069: Truck Plug Socket Dust Cap - Blue.

    DP305: 5 Channel Dummy Probe for 2 wire systems.

    DP307: 7 Channel Dummy Probe.

    LDP202: Aluminium 2 wire Overfill Probe.

    LDP205: Aluminium 5 wire Overfill Probe.

    GP100 Series: Overfill Gantry Plugs.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    ITP103 3 pin bayonet fastening with pneumatic interlock.
    ITP104 4 pin bayonet fastening with pneumatic interlock.
    ITP113 truck plug with electrical pressure switch and 3 pin bayonet fastening

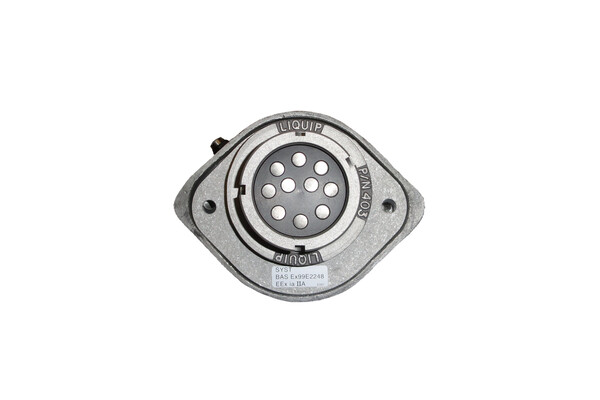

    ITP114 truck plug with electrical pressure switch and 4 pin bayonet fastening (use also for 2 pin).
