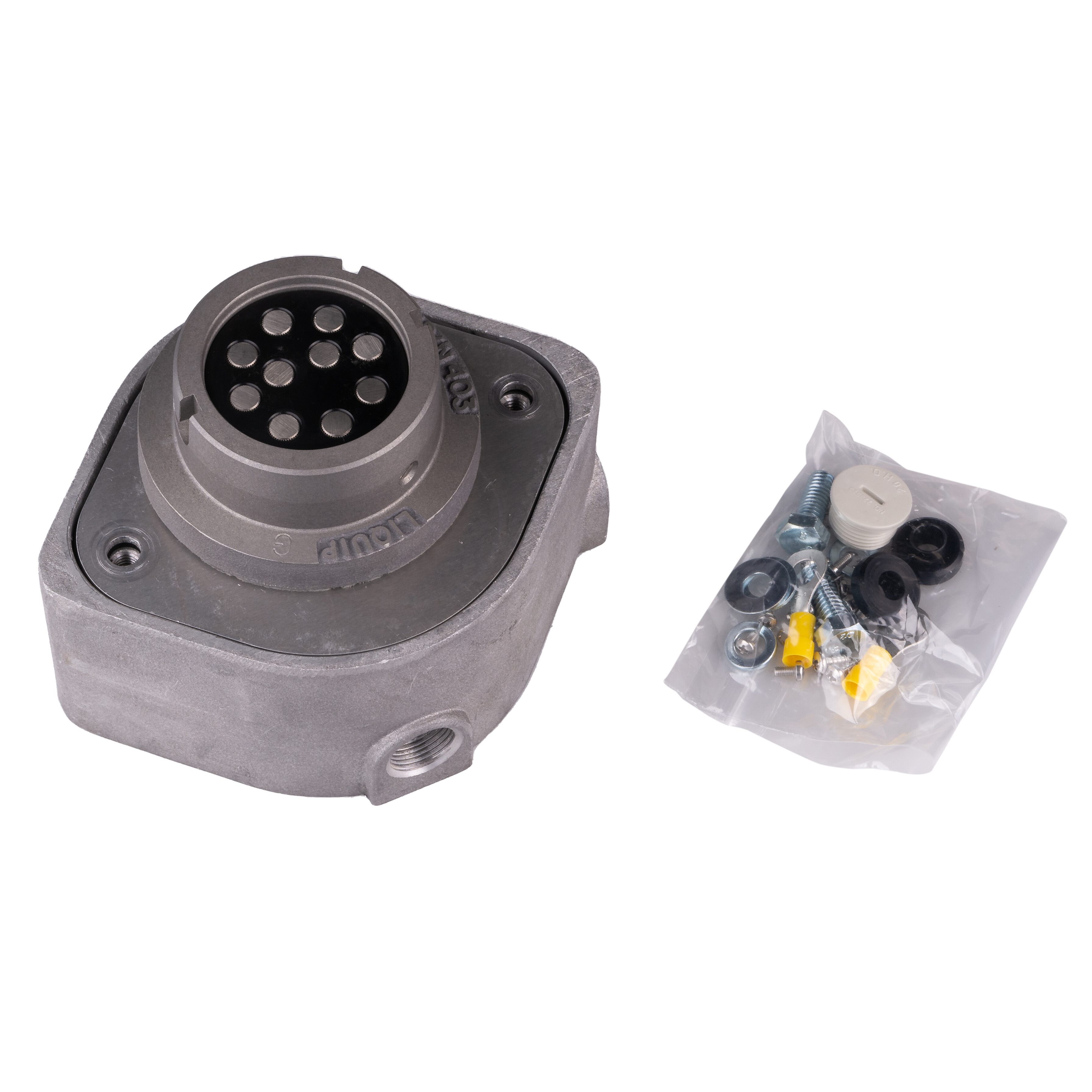

TP103: truck plug with 3 slot bayonet fastening.

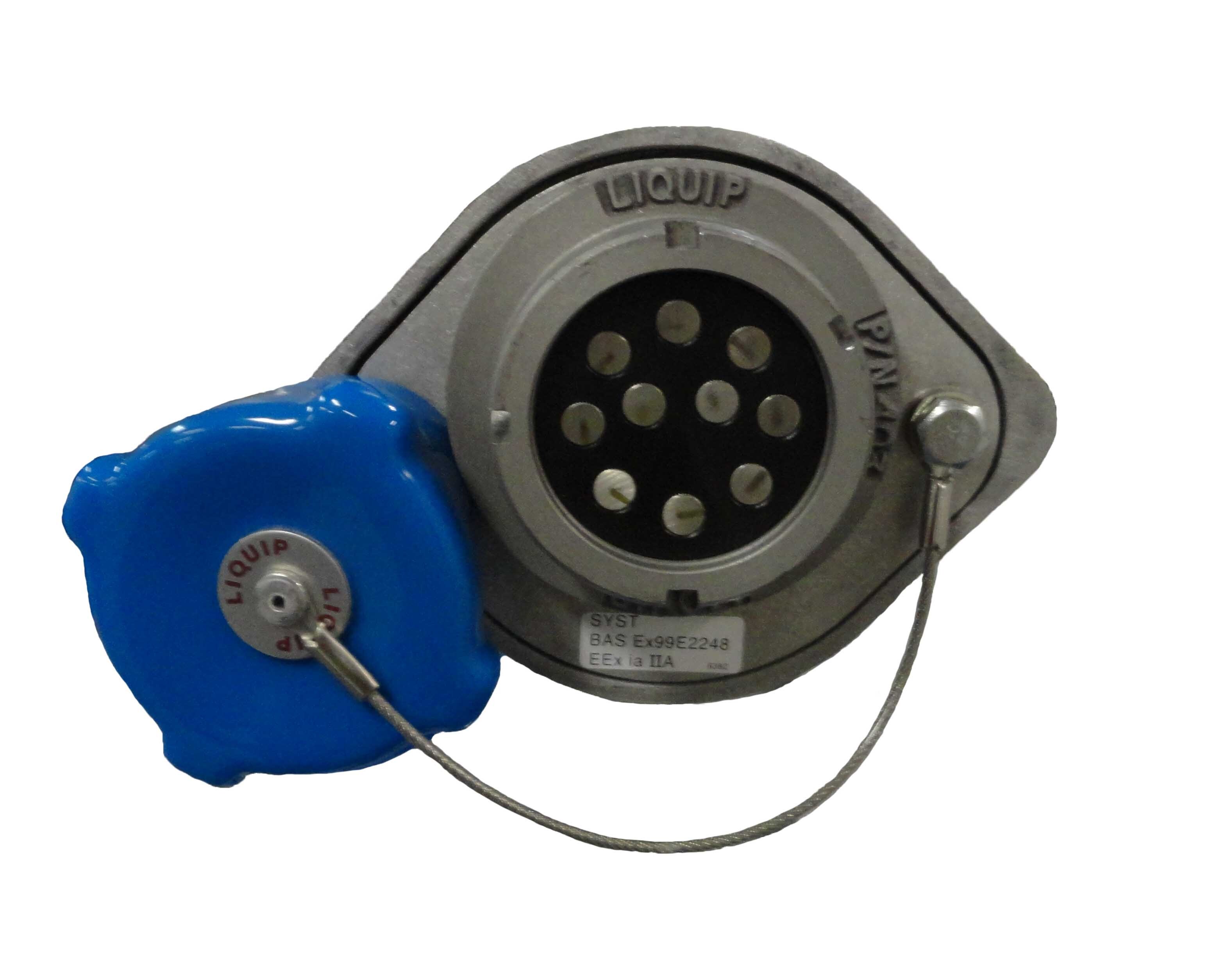

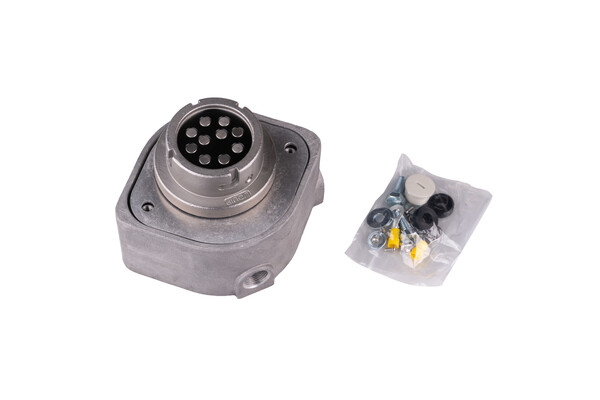

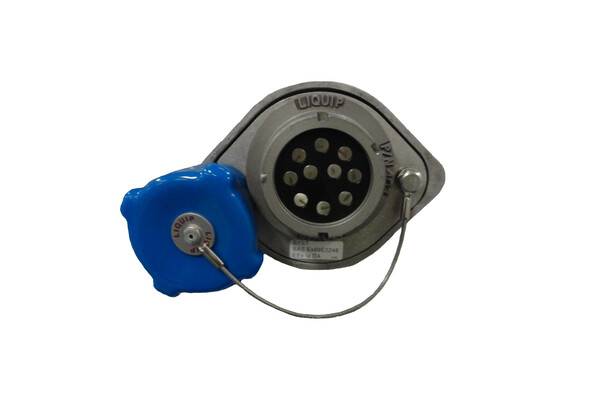

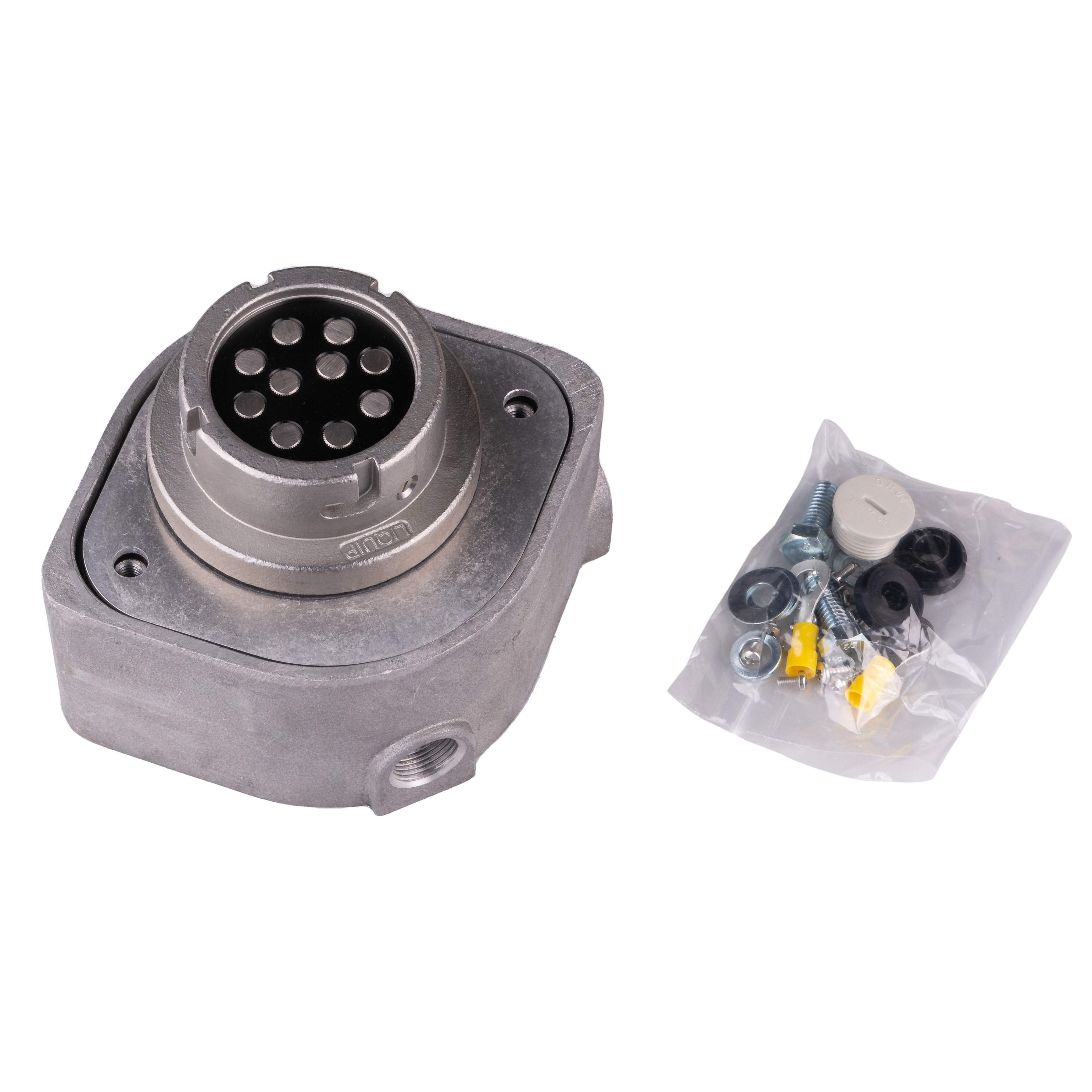

TP104: truck plug with 4 slot bayonet fastening (use also for 2 slot applications).
Truck Plugs
Liquip offers truck plugs with added ground assurance to suit 2 wire and 5 wire overfill systems with 3 or 4 pin bayonet fastening (J-slots).
The industry standard 10 pin overfill protection plug is interchangeable with others of the same type and incorporates no-cost wiring connectors which ensure the tanker is bonded to the gantry so long as the plug body is correctly mounted. This dissipates static electricity and prevents sparks due to differences in potential.
The design of the Liquip truck plug is unique in that it ensures grounding of the tanker to the gantry by using the mounting bolts inside the truck plug.
The TP104 series of truck plugs features a hard-coated nose ring and J-slots for longer service life.
Features & Benefits
- 3 and 4 bayonet style J-slots to industry standards.
- 10 pin as standard.
- Allows for overfill protection with added ground assurance.
- Sufficient room to easily install and mount dummy probe as required in 2 wire systems.
- Stainless Steel nose ring and J-slots for longer service life.
- Offers compatibility with virtually all terminals built to EN13922 or API RP 1004.
- Face plate mounting and gasket design prevents water ingress.
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
 |
TP103 | Truck plug with 3 slot bayonet fastening. | |
 |
TP104 | Truck plug with 4 slot bayonet fastening (use also for 2 slot applications). |
