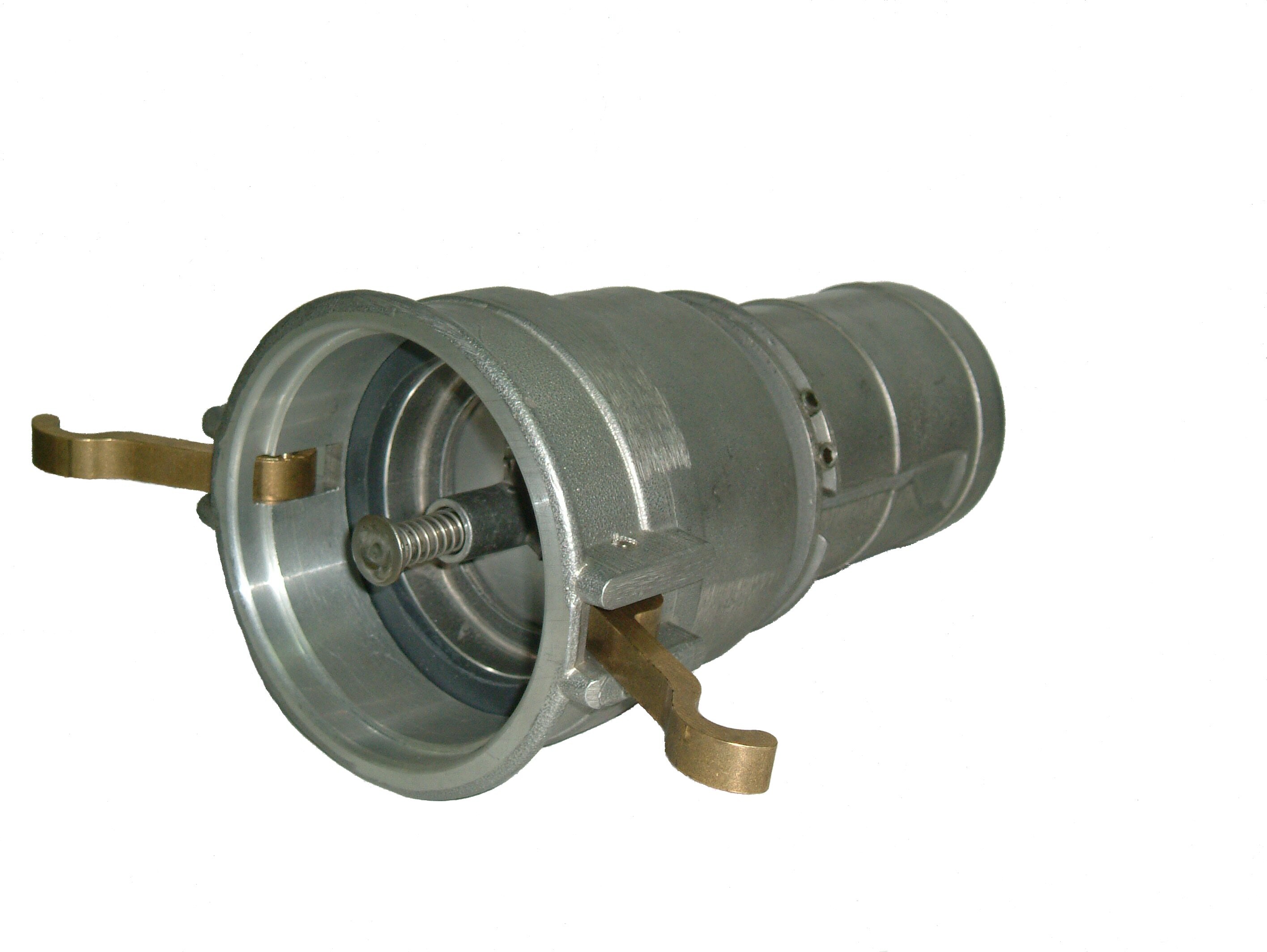

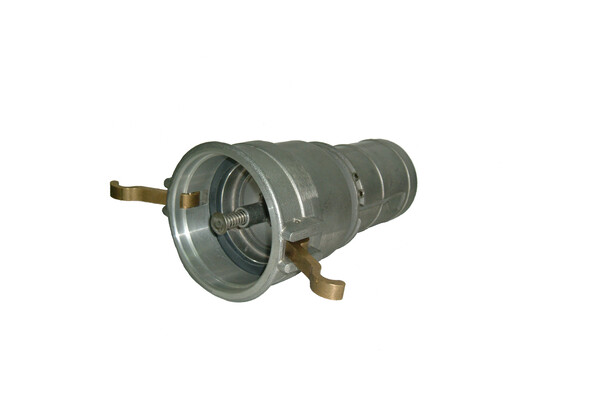

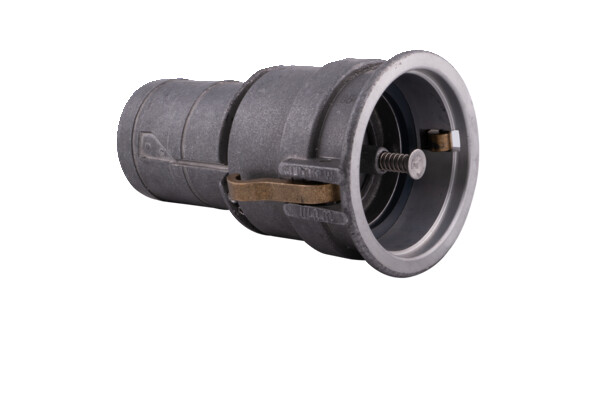

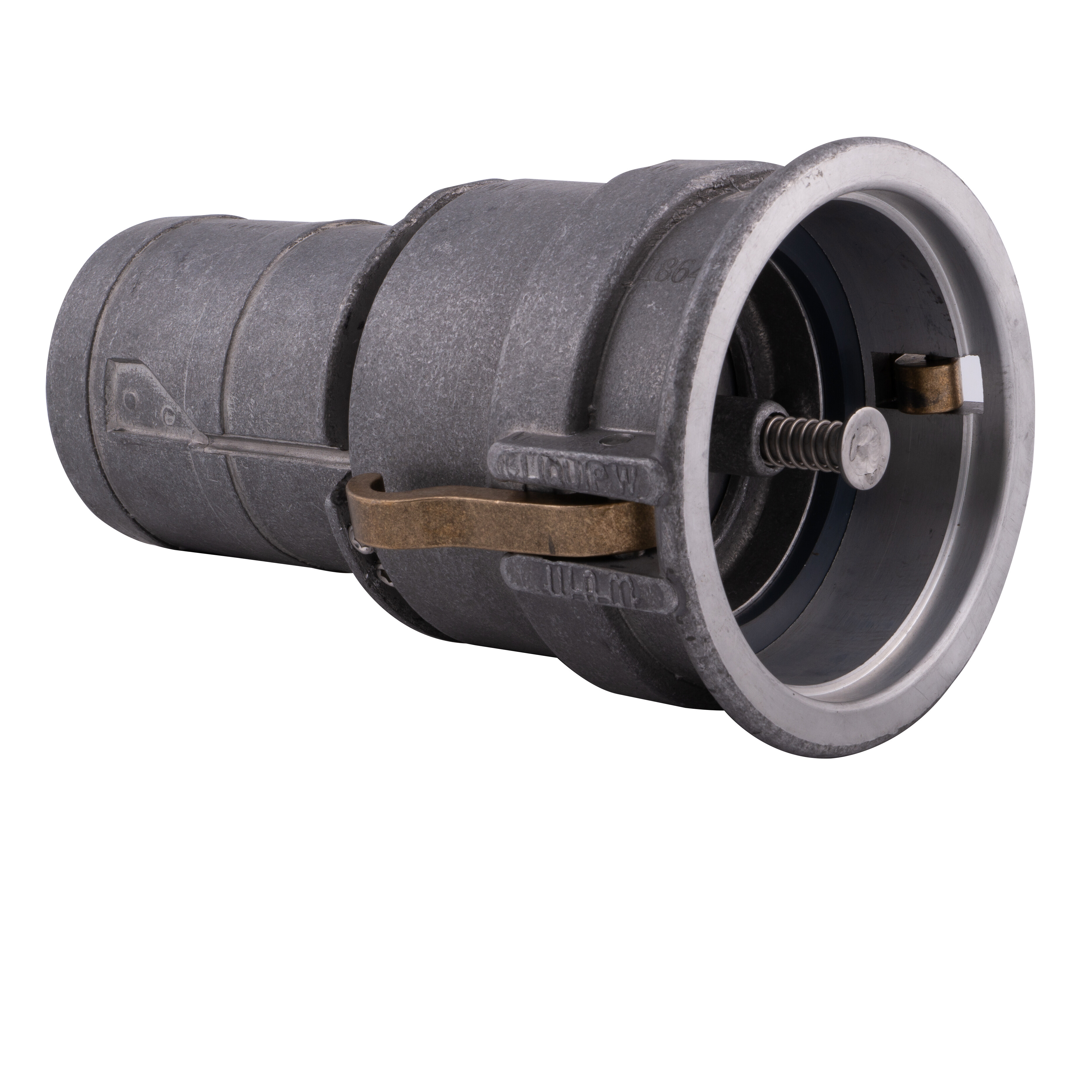

Vapour Coupler - VCF075W
Vapour couplers allow for vapour transfer between tanker trucks and loading/unloading tanks.
Liquip's vapour couplers automatically open when connected to a compatible vapour adaptor and automatically seal when disconnected.
Liquip offers a 100mm female camlock to 100mm male hosetail vapour coupler that can be used for vapour transfer between the tank truck and loading/unloading tank.
The VCF075W complies with AS5602:2009 and is a Ø75mm equivalent flow area and a spring loaded coupler that automatically opens when coupled with a compatible adaptor.
Features & Benefits
- Low pressure drop.
- Unique poppet design provides lower pressure drops than standard poppets at high flows rates.
- Spring loaded poppet retains vapours until coupled to the male vapour adaptor.
- Automatically opens and closes when connected to male adaptor.
- Universal 4" (100mm) camlock connection.
- Ø75mm equivalent flow area
- 100mm hose tail.
