Adaptors

Liquip offers a range of vapour recovery adaptors which provide users with a safe and efficient method for handling and transferring of product vapour.

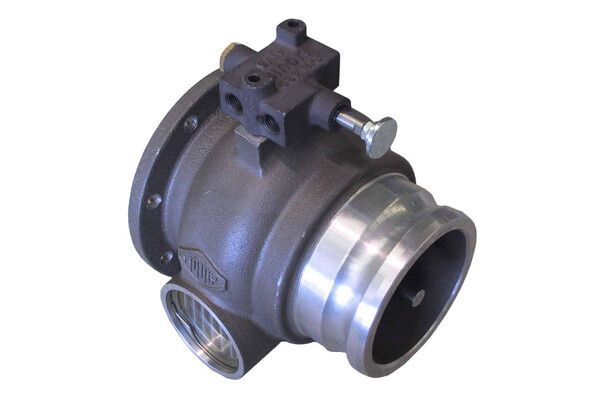

VCM450 Series
The VCM450 provides high flow rates into multiple compartments with minimal pressure drop across the adaptor and can be supplied with a proximity switch holder.

When connected to a female vapour coupler the adaptor poppet is pushed inwards to allow vapour flow and the coupler also pushes the striker plate of the adaptor forward to provide an electrical signal that the vapour recovery system is connected.

VCM3 Series
The VCM3 series is a poppet sealed cam and groove connection for truck vapour return lines.

The VCM3 series has an aluminium body with a 100mm (4") TTMA flange mounting. The seals are Viton and the shaft runs in a delrin bush.

A standard camlock will not fit into this adaptor, only an approved vapour coupler will fit.

NOTE: VCM3 series for use in Australia and NZ only.

Features & Benefits

High flow rates and low pressure drop.
Lightweight and study aluminium construction.
Designed to work with flow rates of up to 600m3/hour (10,000 litres per minute) at 20^oC.
Automatic opening and closing.
All aluminium construction with stainless steel springs and Viton poppet seal.
Ability to add pneumatic or proximity switch (sold separately).
Sightglass for visual check of product in the vapour line - VCM450 only.
Universal connection - 100mm camlock.
Universal mounting - 100mm (4") TTMA flange.
Drain plug - VCM450 only.

Technical Information
Ordering Information
Associated Equipment
Resources

Technical Information

Pressure
Poppet opens under external pressure of 4-6 kPa for vacuum relief.

Pressure drop less than 4 kPa at 6,000 litres/min flow of free air across coupled connection.

Selectivity
Nosecone is standard 4” NATO camlock with interference selectivity ring to prevent wrong connection.

NOTES: VCM450 is not suitable for use with AS 5602 compliant tankers which require interference selectivity ring for vapour adaptors (use VCM3 variants).

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart

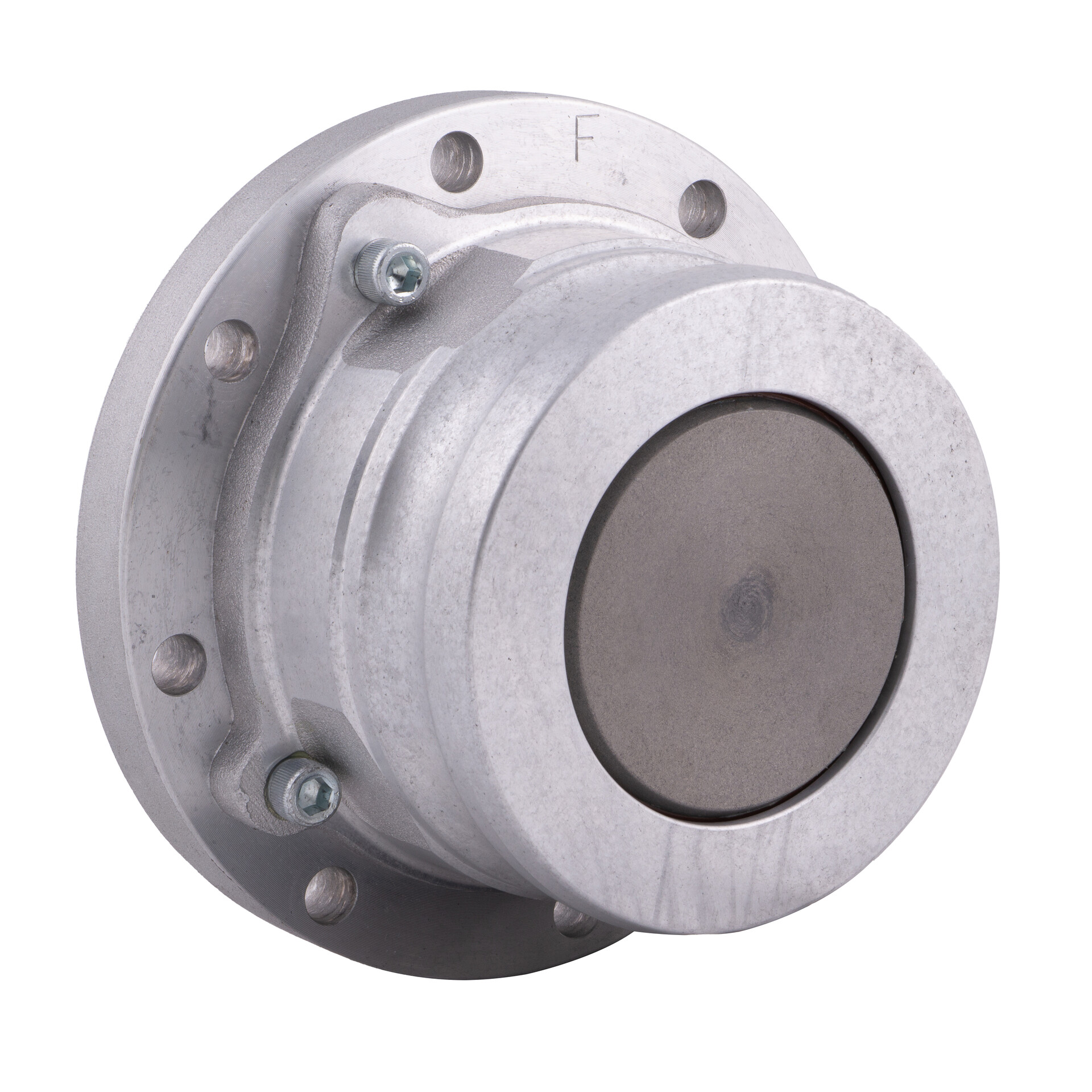

	VCM3-F	Al Vapour adaptor 100mm Male to 100mm TTMA flange.
	VCM3P	Vapour adaptor with proximity switch holder.

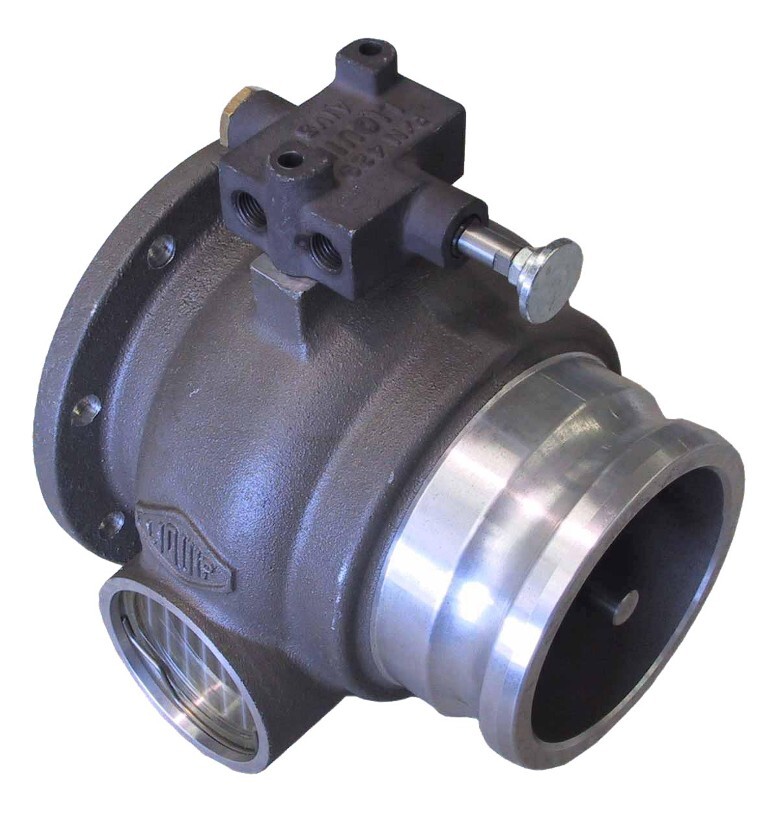

	VCM450	Vapour adaptor 100mm (4") flow through.
