R Series Lightweight Hosereels



Liquip’s all new R-Series drum style hosereels provide the perfect balance of strength and reduced weight to allow for increased payload capacity.

Liquip hosereels are designed for tough conditions and the R-Series is no exception. Beyond incorporating Liquip’s proven technologies that work flawlessly in high pressure applications, Liquip’s efforts were concentrated on re-engineering the hosereel design to reduce weight whilst withstanding the harshest operating environments and offering exceptional quality and usability.

Featuring an all new stainless steel manifold, aluminium base frame, drum and cheek plates, and a self aligning bearing, it’s clear that no stone has been left unturned during the development of the R-Series reel.

Features & Benefits
  • Lightweight design for increased payload capacity.
  • 38mm flow path throughout.
  • The stainless steel manifold and 1½“ BSPT gooseneck allow for multiple product compatibility.
  • The aluminium exterior eliminates the need for additional painting or coatings.
  • Manifold, shafts and seal components can be easily accessed from the outside providing ease of service and maintenance.
  • R-series can be manually, hydraulically or pneumatically operated.
  • Liquip's pneumatic motor can be effectively operated using Liquip's control valve (P/N -9953)
  • Mounting positions allow for easy retrofitting when replacing prior Liquip HR series hosereels.
  • A range of drum lengths available with the same hose capacity as their predecessors.
  • Left or Right hand configurable to ensure flexibility during installation.
  • Supplied as standard with an anti-rotation lock to prevent hose unravelling.
  • All reels are Australian made and supported through Liquip’s distribution network.
  • Standard Gooseneck is 1½" BSPT and can be reduced as required.
  • Suitable For (use RxxxHPLPG for LPG applicaitons).:



Recommended products for replacement

    Technical Information
    Base Horeel
    Max allowable working pressure 2,100 kPa
    Periodic Service Annually - check O-rings and replace as required.
    Mounting 4 x M10 Bolts - see mounting footprint in datasheet.
    Inlet and Outlet 1½” BSPT as Standard.

    Reducers can be used to suit the following diameter hose:
    25mm (1”)
    32mm (1¼”)
    38mm (1½“) (standard)
    Rewind Options Manual, Hydraulic or Pneuamtic (air).
    Drum widths and weights (less motors) 310mm (12”) - 19kg
    460mm (18”) - 20kg
    610mm (24”) - 21kg
    Materials

    Stainless steel 304: manifold, gooseneck and wetted components.

    Aluminium: cheek plates and drum.

    Nitrile seals (Viton seals available on request).

    310HP Hose Capacity Hose size Capacity
    ¾"  62
    1" (with beads) 39 (11)
    1¼" (with beads) 24 (9)
    1½" (with beads) 22 (4)
    460HP Hose Capacity Hose size Capacity
    ¾"  93
    1" (with beads) 64 (18)
    1¼" (with beads) 35 (14))
    1½" (with beads) 33 (5)
    610HP Hose Capacity Hose size Capacity
    ¾"  137
    1" (with beads) 88 (25)
    1¼" (with beads) 53 (21)
    1½" (with beads) 48 (8)
    Pneumatic Motor
    Min pressure 400 kPa (4 Bar/60psi)
    Hosereel Speed 55 RPM - AR310HP
    61 RPM - AR460HP / AR 610HP
    Air Tank Size 200 Litres
    Max Air Consumption 1100 (Nl/min) at 620 kPa - AR310HP
    1,600 (Nl/min) at 620kPa - AR460HP/AR610HP
    Hydraulic Motor
    Max Inlet pressure 17,500 kPa (175bar/538 psi)
    Max Fluid Flowrate 60LPM
    FT1251538 Flow Control Valve 210 bar Working Pressurre
    30LPM Recommended Max Flow Rate
    5412 Hydraulic Control Valve 4 Spool only, 45LPM rated flow
    Manual Rewind
    Winding Force Requirement 15kg (force)
    Ordering Information



    Rewind Mechanism, Goosenecks, Motor and Control Assemblies

    Category Item Description
    Goosenecks R310HP-4 Gooseneck S/S - 1½” BSPT

    Pneumatic Rewind

    5383 Pneumatic motor for AR310HP
    9950 Pneumatic motor for AR460HP and AR610HP
    R310HP-26 5383 Pneumatic motor with gearbox assembly to suit AR310HP series hosereels
    R310HP-26L 9950 Pneumatic motor with gearbox assembly to suit AR460HP/
    AR610HP series hosereels
    9953 Air Valve - Pull hand lever to suit penumatic R series hosreel
    Hydraulic Rewind 1295 Hydraulic motor Danfoss
    5412 Hydraulic control valve (Motor Spool 2000psi relief spring centred dented to port A)
    FT1251538 Flow Control Valve ⅜ Adjustable
    Manual Rewind R310HP-31

    Manual crank handle and gearbox assembly

    R310HP-34

    Handle Assembly only

    Associated Equipment

    R-Series Hosereel LPG Spec: RxxxHPLPG

    Cartwheel/Catherine type hosereels - Standard: AHR250 series.

    Aviation Drum style hosereels: AHR250D series (suit 2” and 2½” hoses).

    Recommended hose: Continental/Elaflex/Alfagomma suction or delivery hose.

    Recommended swivels: Liquip SJ series swivels or OPW swivels.

    Industrial nozzles:
       210L0104LLIQUIP: NOZZLE 1¼” BSPP C/W SPOUT OPW 210 SERIES HIGH FLOW
       210L0105LLIQUIP: NOZZLE 1½” BSPP C/W SPOUT OPW 210 SERIES HIGH FLOW

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    HOSEREELS ASSEMBLIES - HYDRAULIC READY
    LIQR310HP R310HP 310mm (12”) - Hydraulic Rewind - High Pressure hosereel comes with motor mount bracket

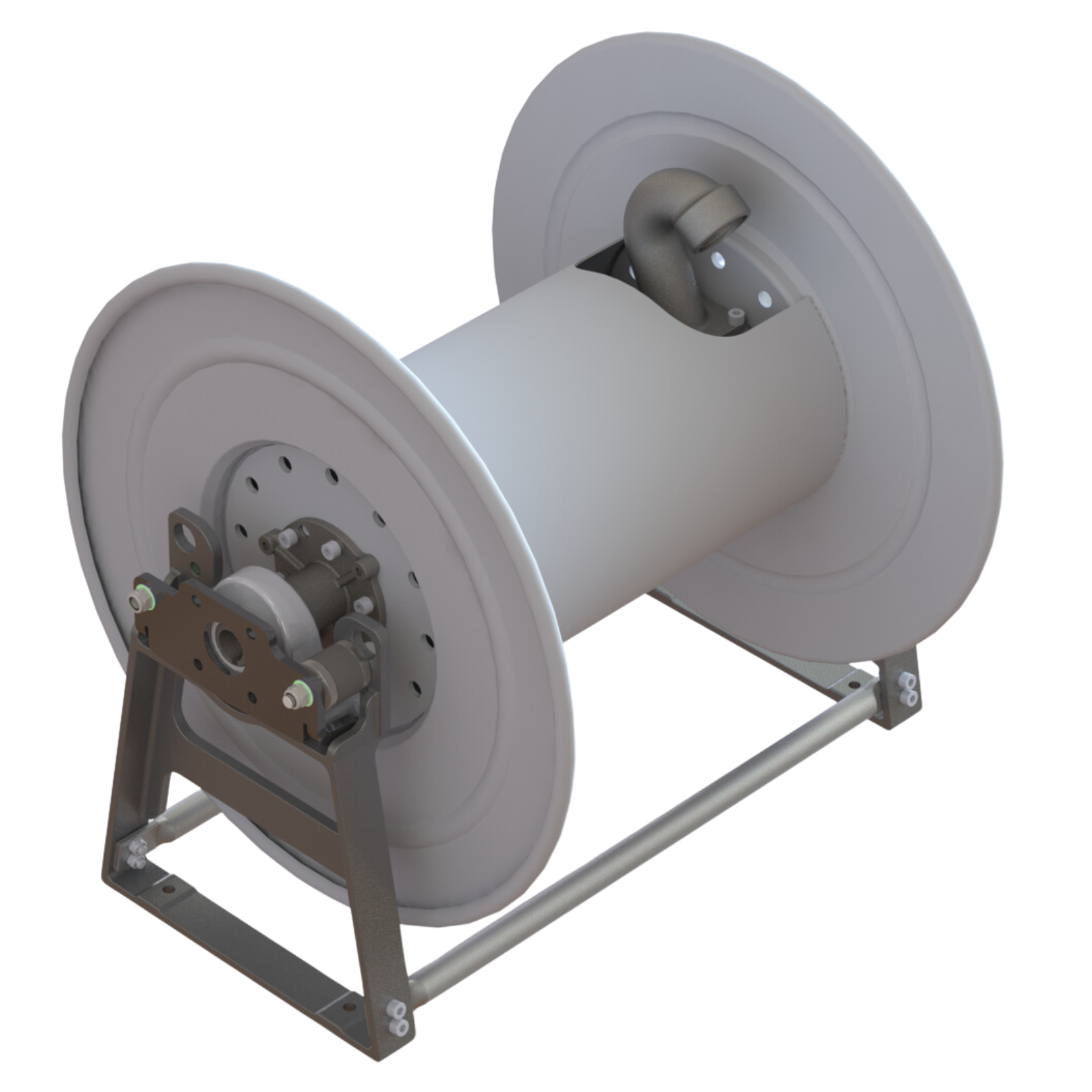

    R460HP R460HP 460mm (18”) - Hydraulic Rewind - High Pressure hosereel comes with motor mount bracket.

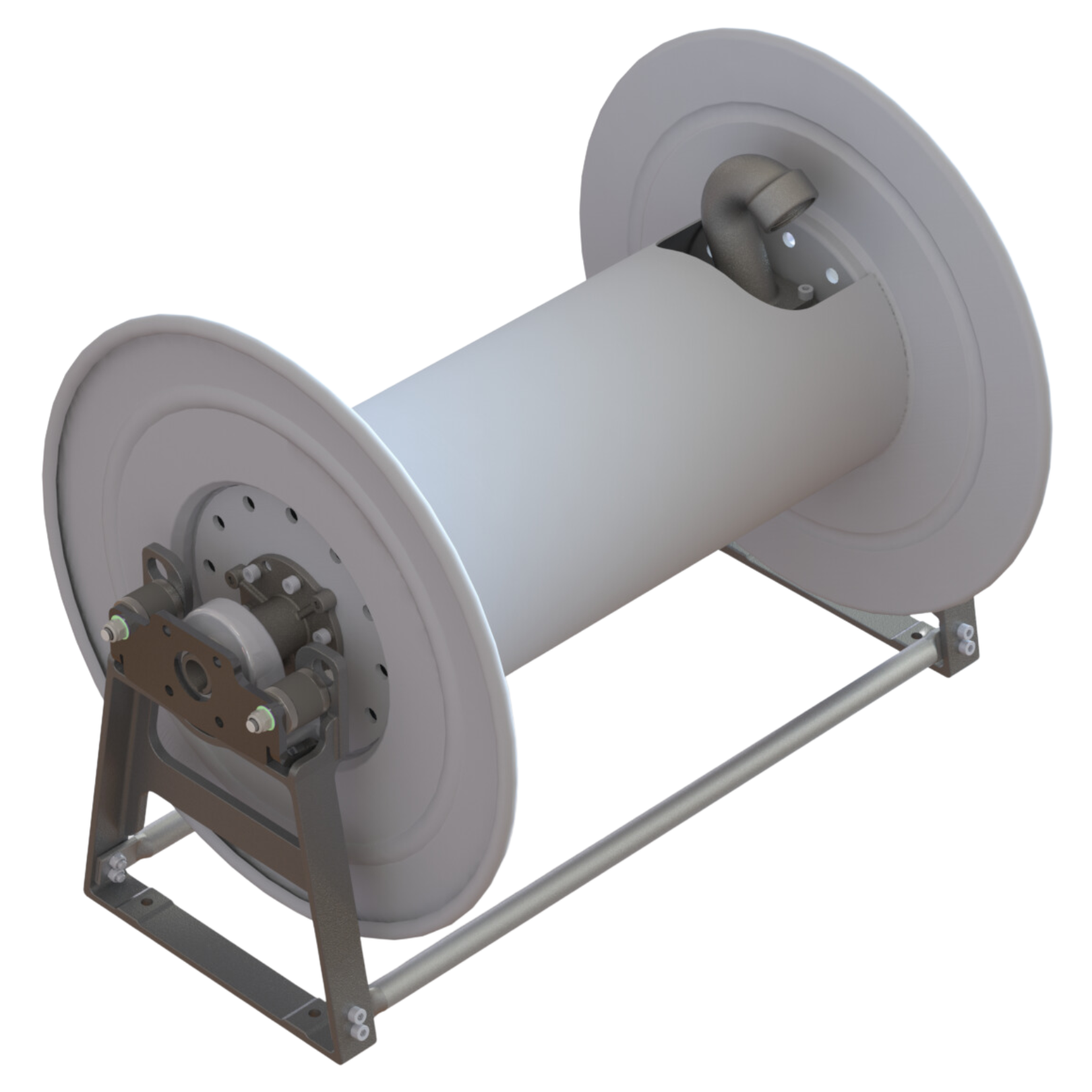

    R610HP R610HP 610mm (24”) - Hydraulic Rewind - High Pressure hosereel comes with motor mount bracket.
    HOSEREELS ASSEMBLIES - HYDRAULIC REWIND

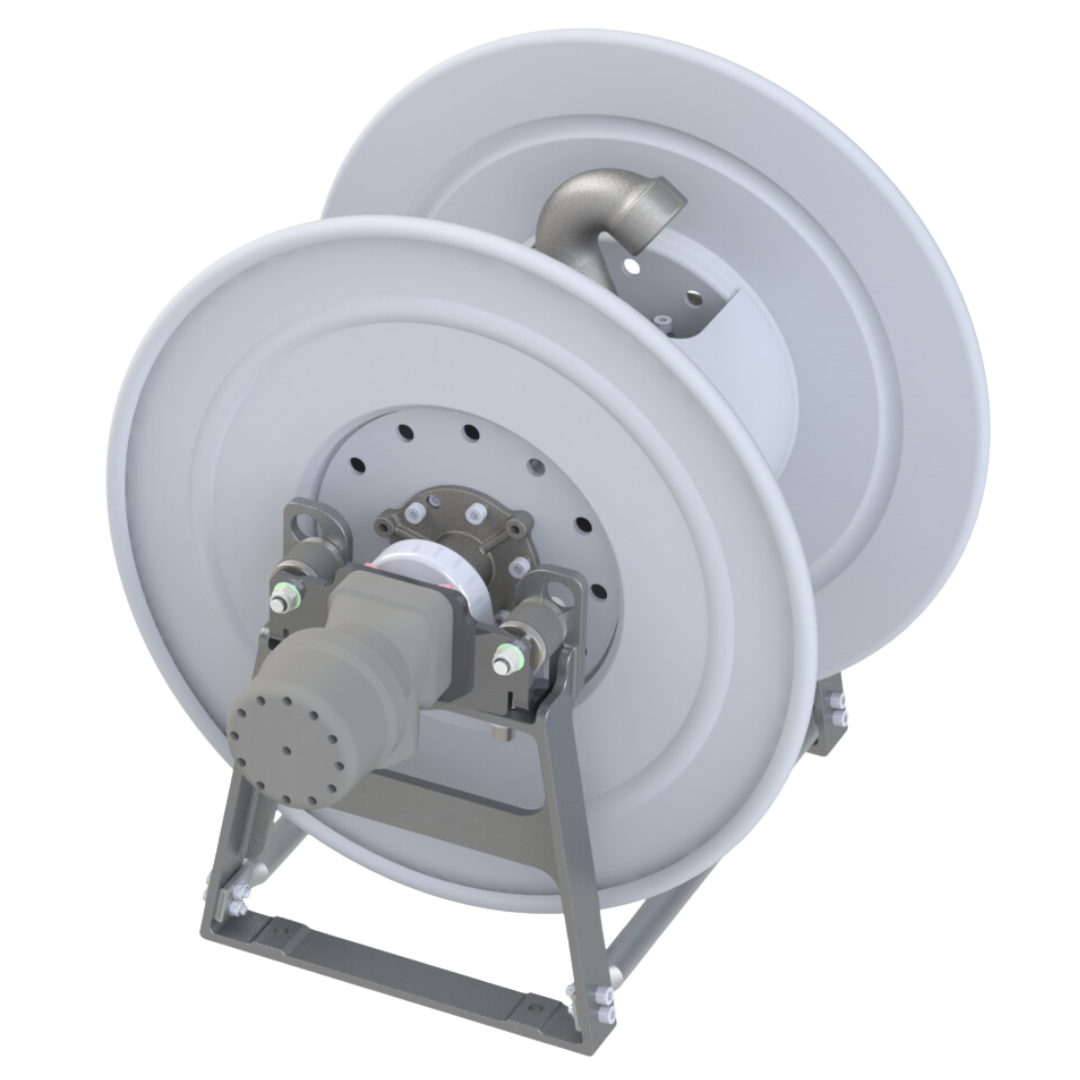

    HR310HPZ 310mm (12”) - Hydraulic Rewind - High Pressure hosereel comes with 1295 motor.

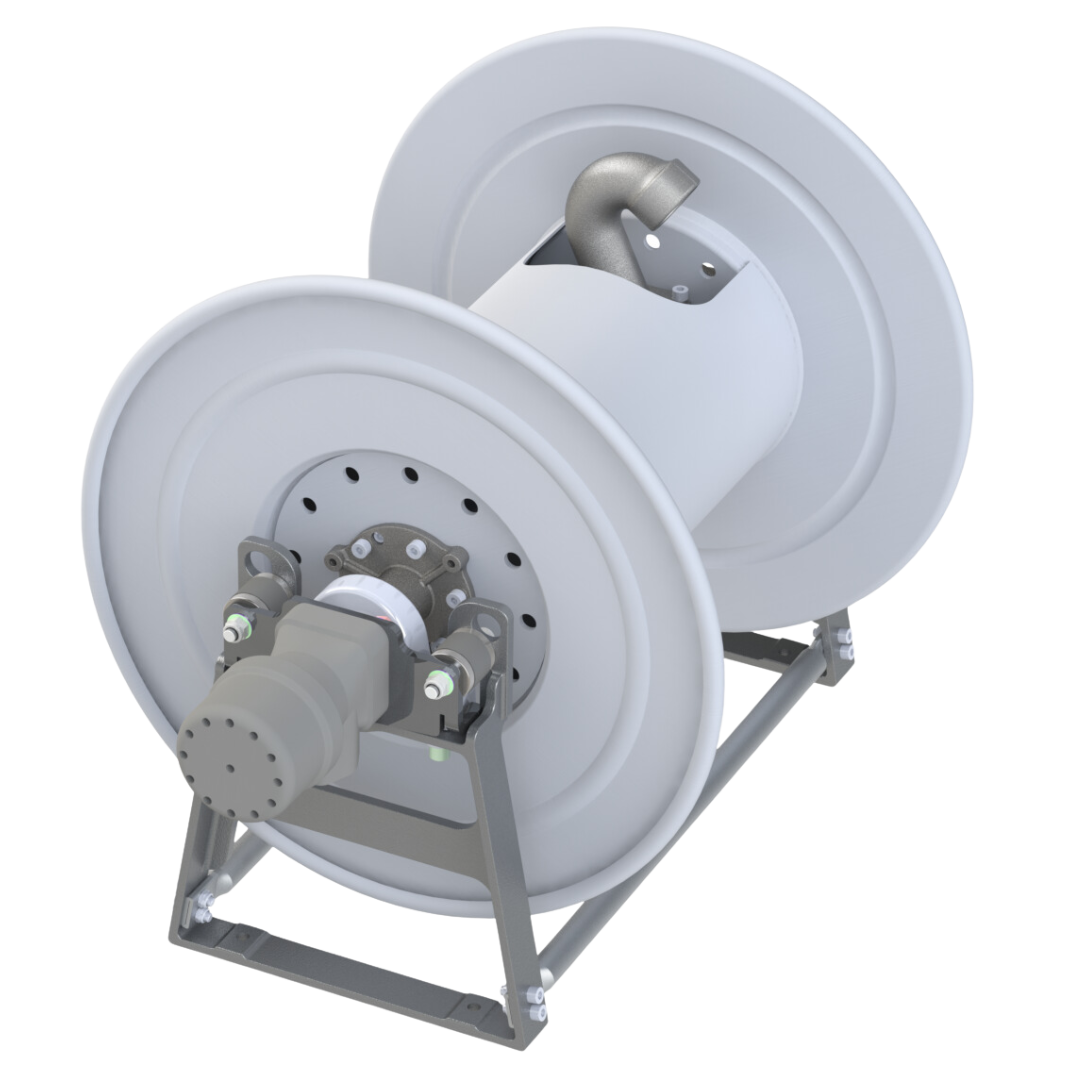

    HR460HPZ 460mm (18”) - Hydraulic Rewind - High Pressure hosereel comes with 1295 motor.

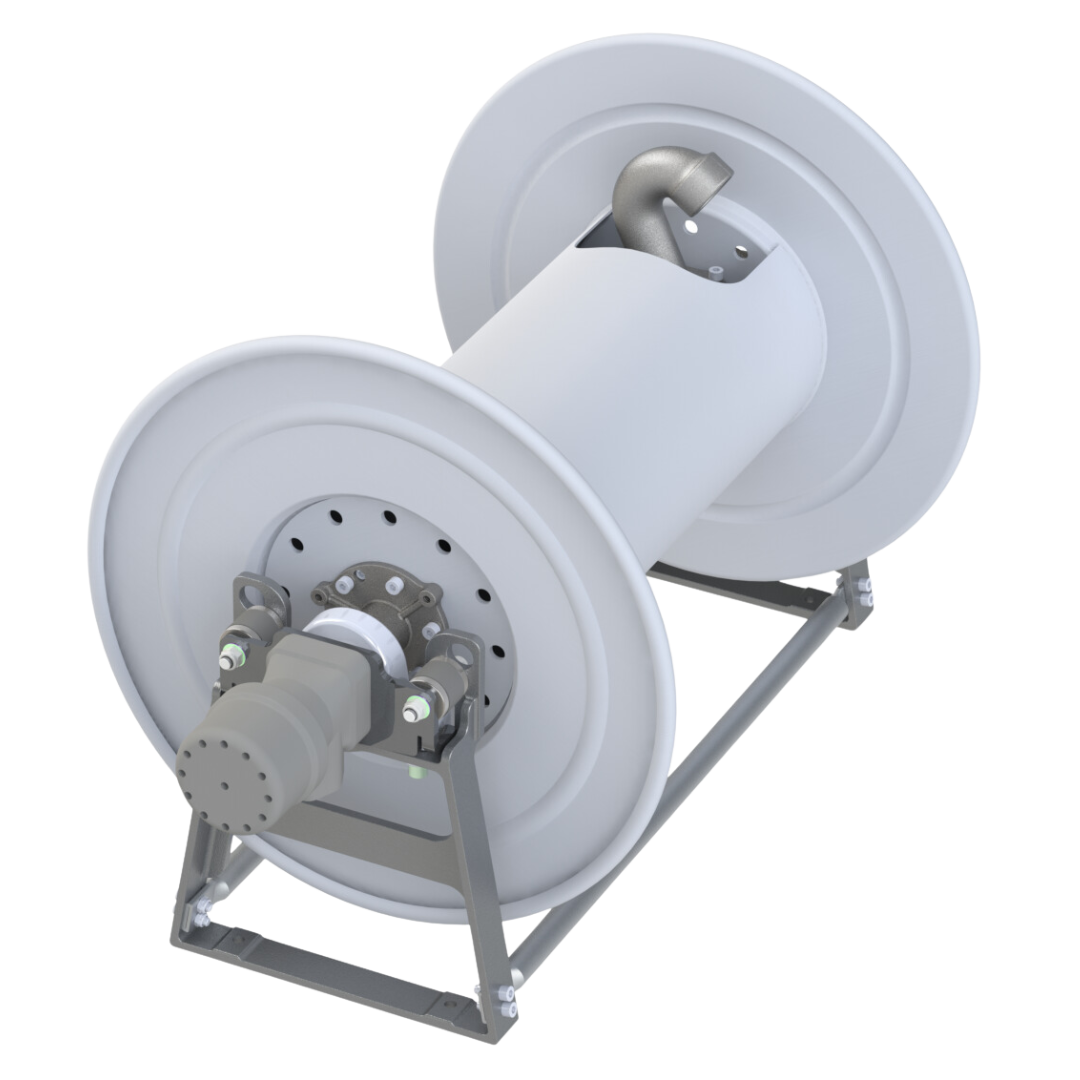

    HR610HPZ 610mm (24”) - Hydraulic Rewind - High Pressure hosereel comes with 1295 motor.
    HOSEREELS ASSEMBLIES - MANUAL REWIND

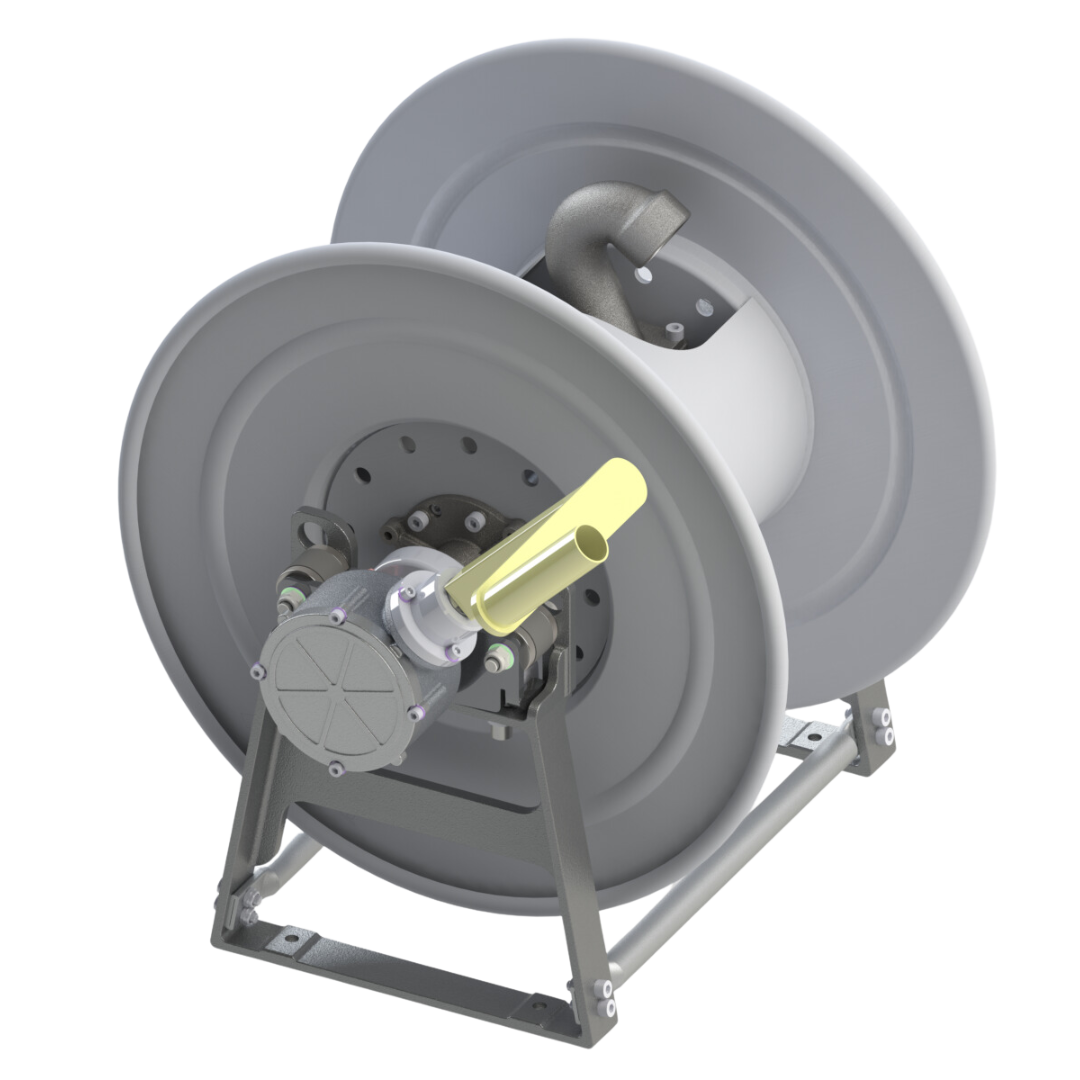

    FR310HP 310mm (12”) - Hydraulic Rewind - High Pressure hosereel - manual rewind

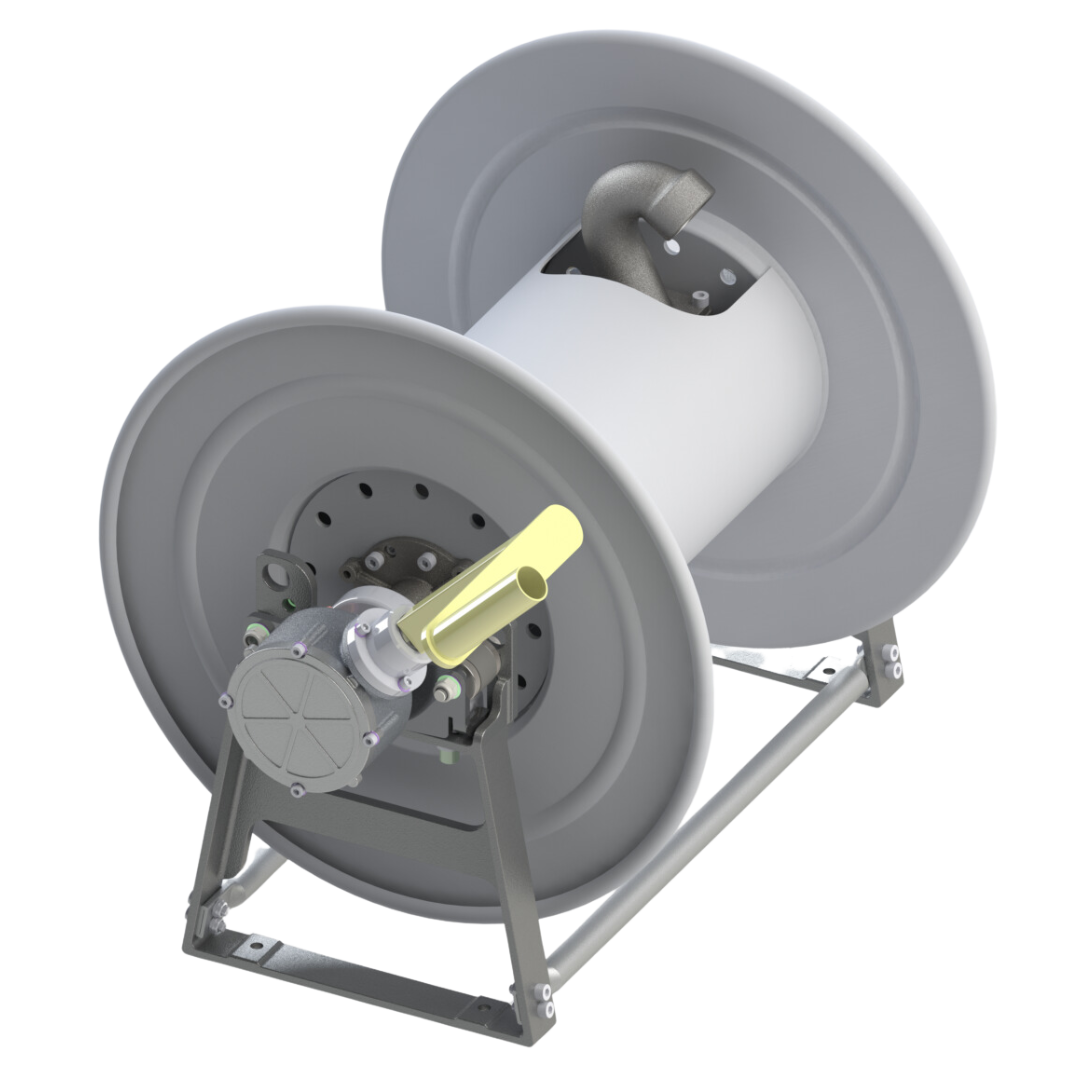

    FR460HP 460mm (18”) - Hydraulic Rewind - High Pressure hosereel - manual rewind

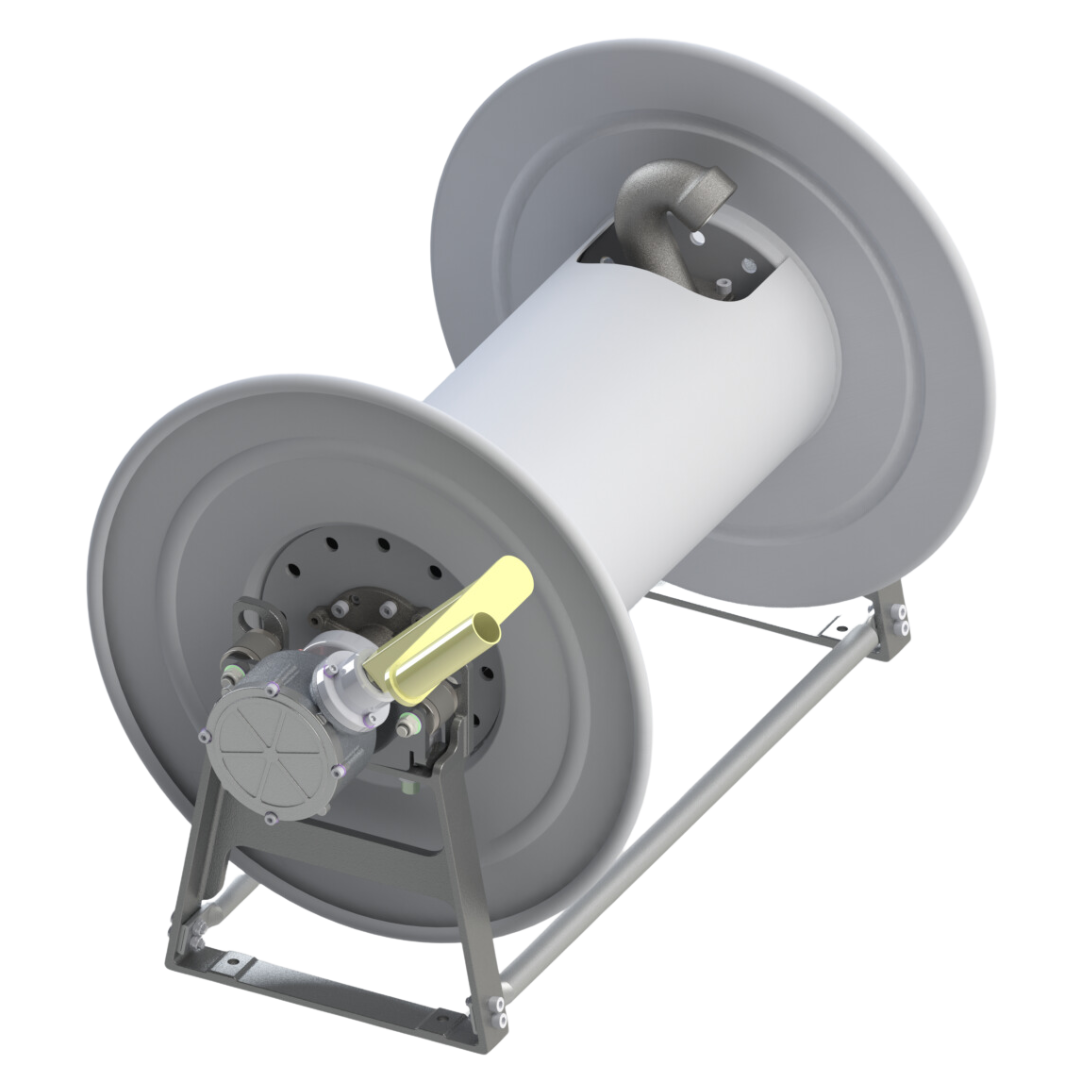

    FR610HP 610mm (24”) - Hydraulic Rewind - High Pressure hosereel comes - manual rewind
    HOSEREELS ASSEMBLIES - PNEUMATIC REWIND

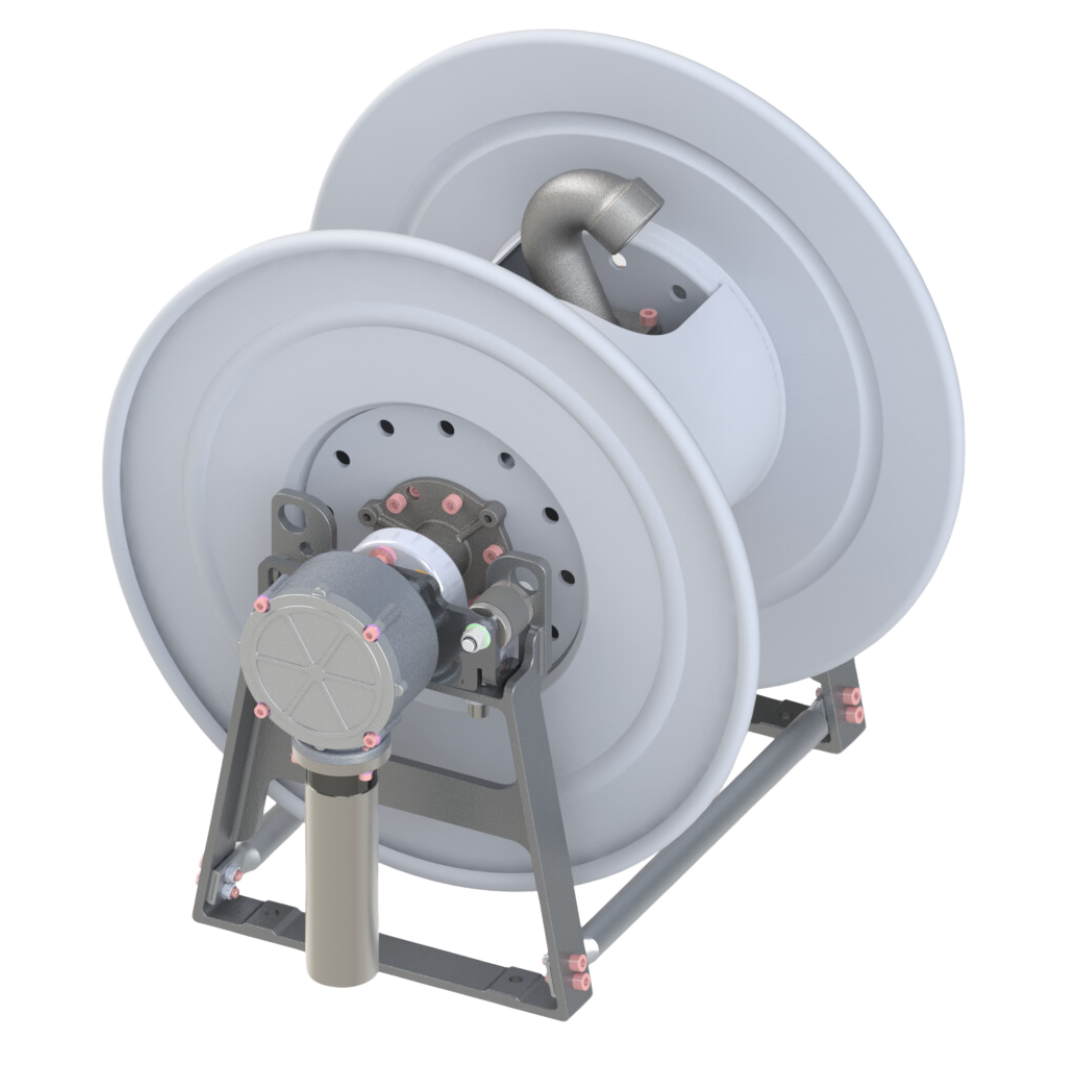

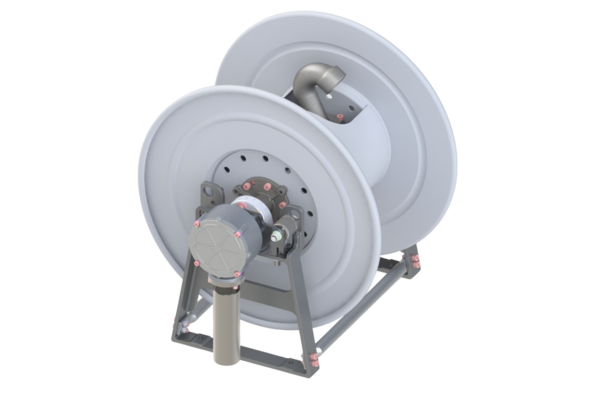

    AR310HP 310mm (12”) - Hydraulic Rewind - High Pressure hosereel with pneumatic motor

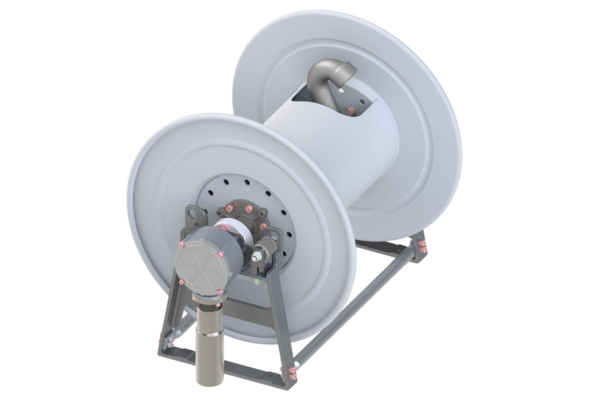

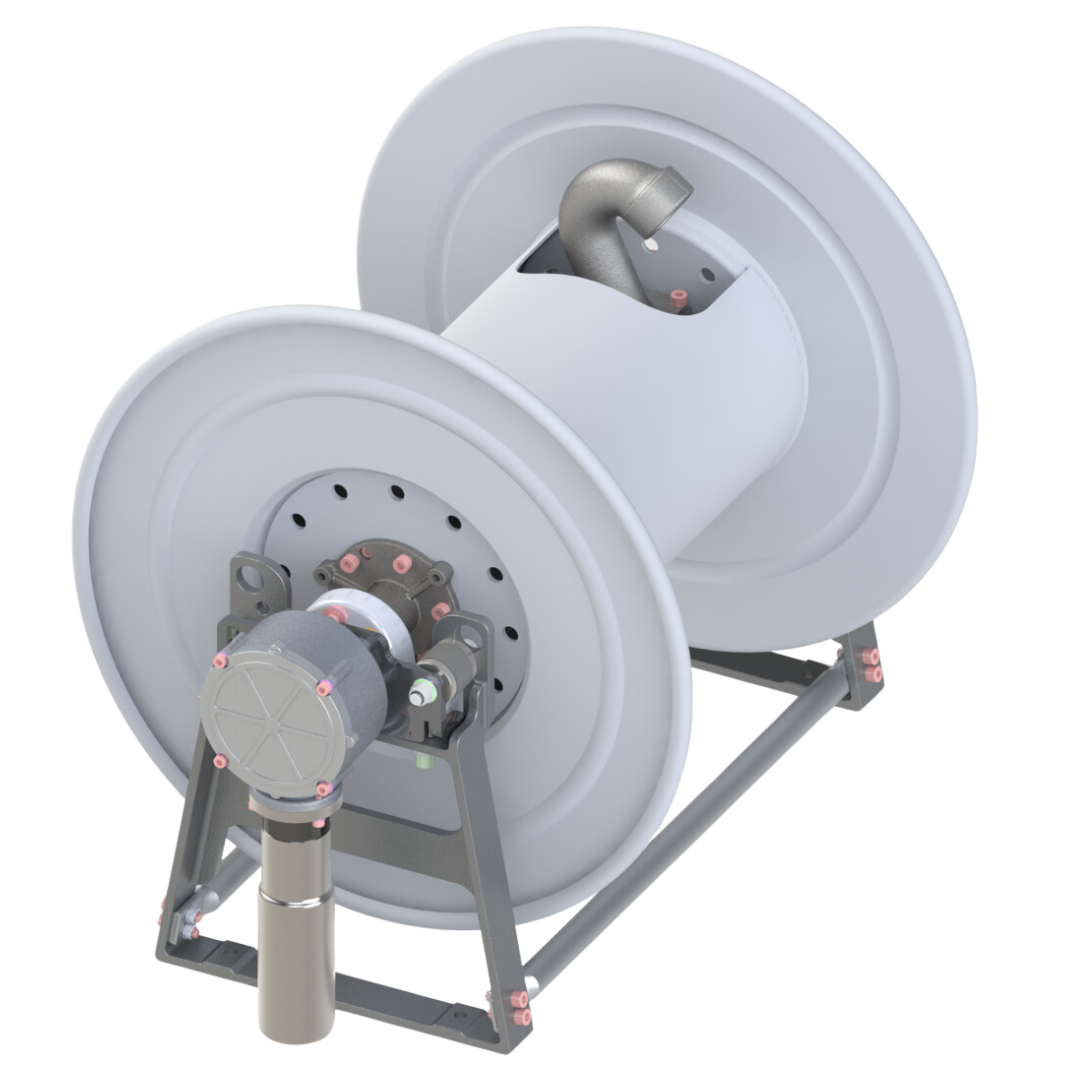

    AR460HP 460mm (18”) - Hydraulic Rewind - High Pressure hosereel with pneumatic motor

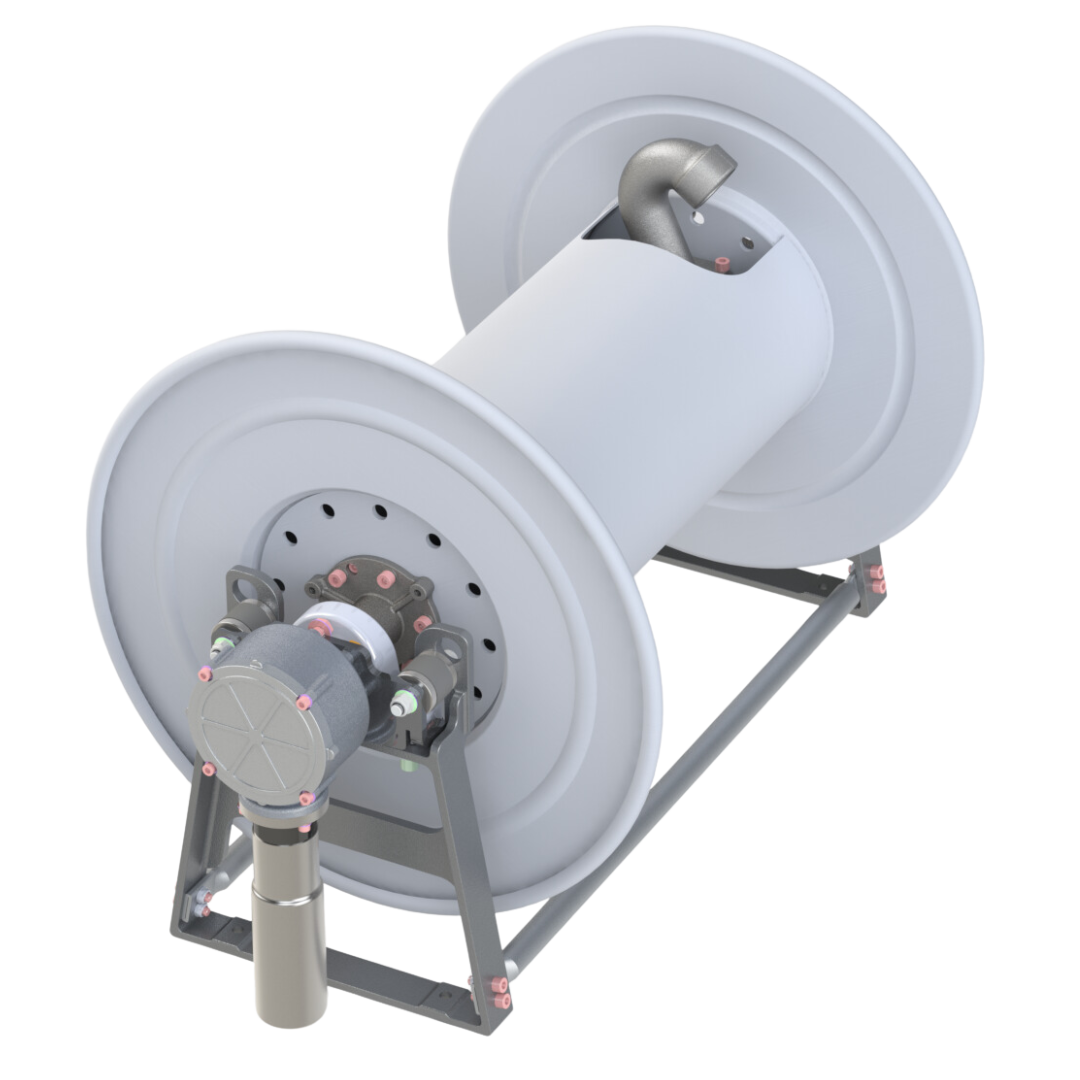

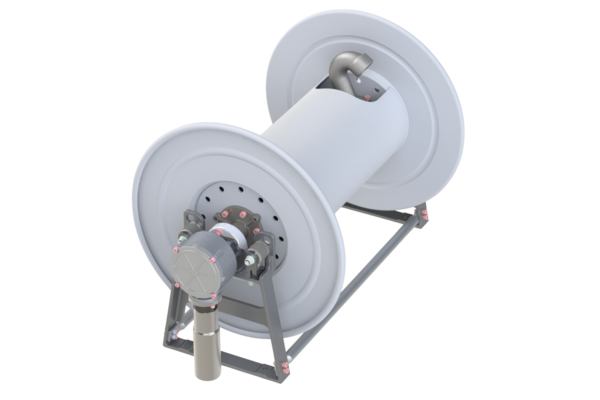

    AR610HP 610mm (24”) - Hydraulic Rewind - High Pressure hosereel comes with pneumatic motor
    MOTORS, GOOSENECKS AND CONTROL ASSEMBLIES

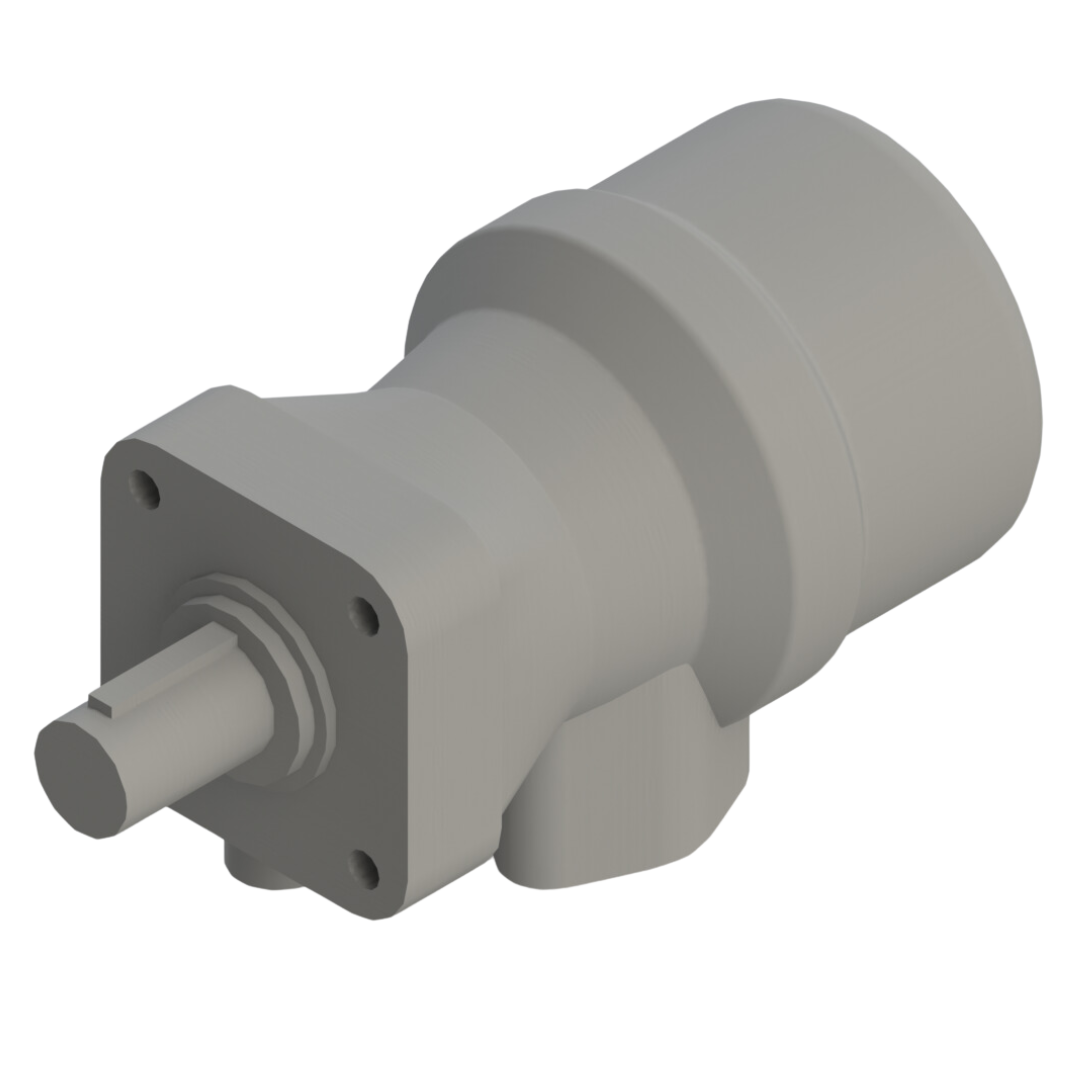

    1295 Hydraulic Motor DANFOSS (for hosereels)

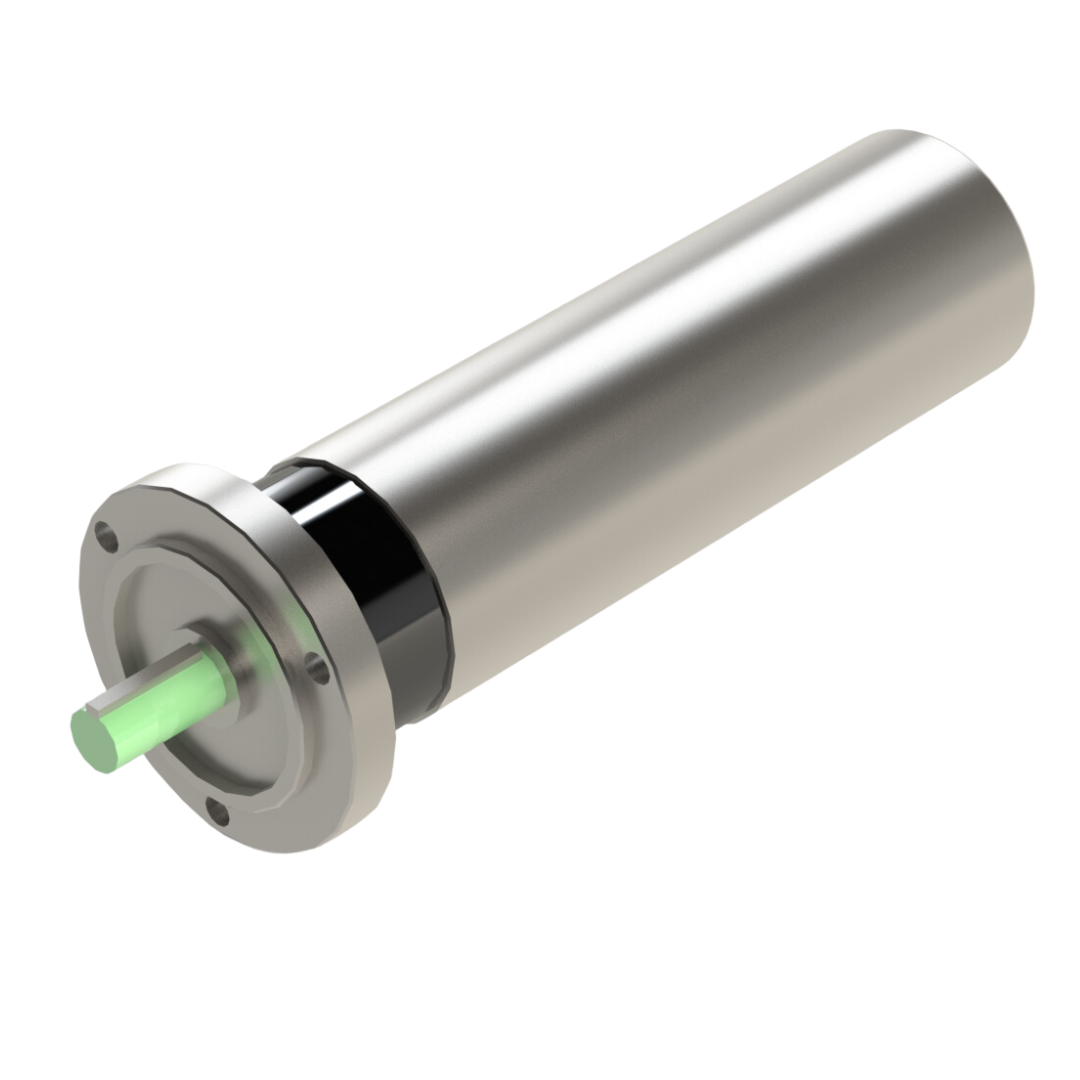

    5383 Pneumatic motor for AR310HP

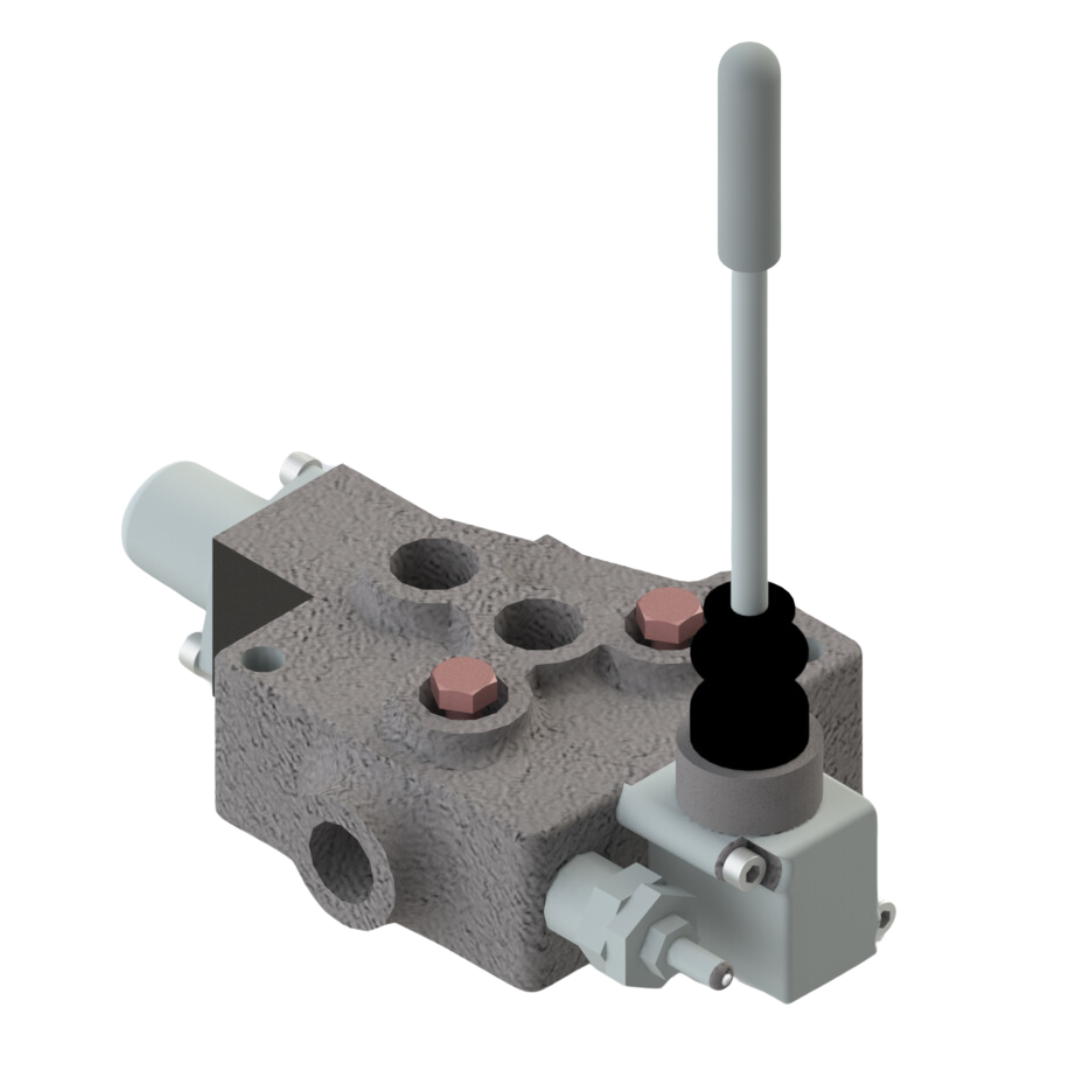

    5412 5412 Hydraulic control valve (Motor Spool 2000psi relief spring centred dented to port A)

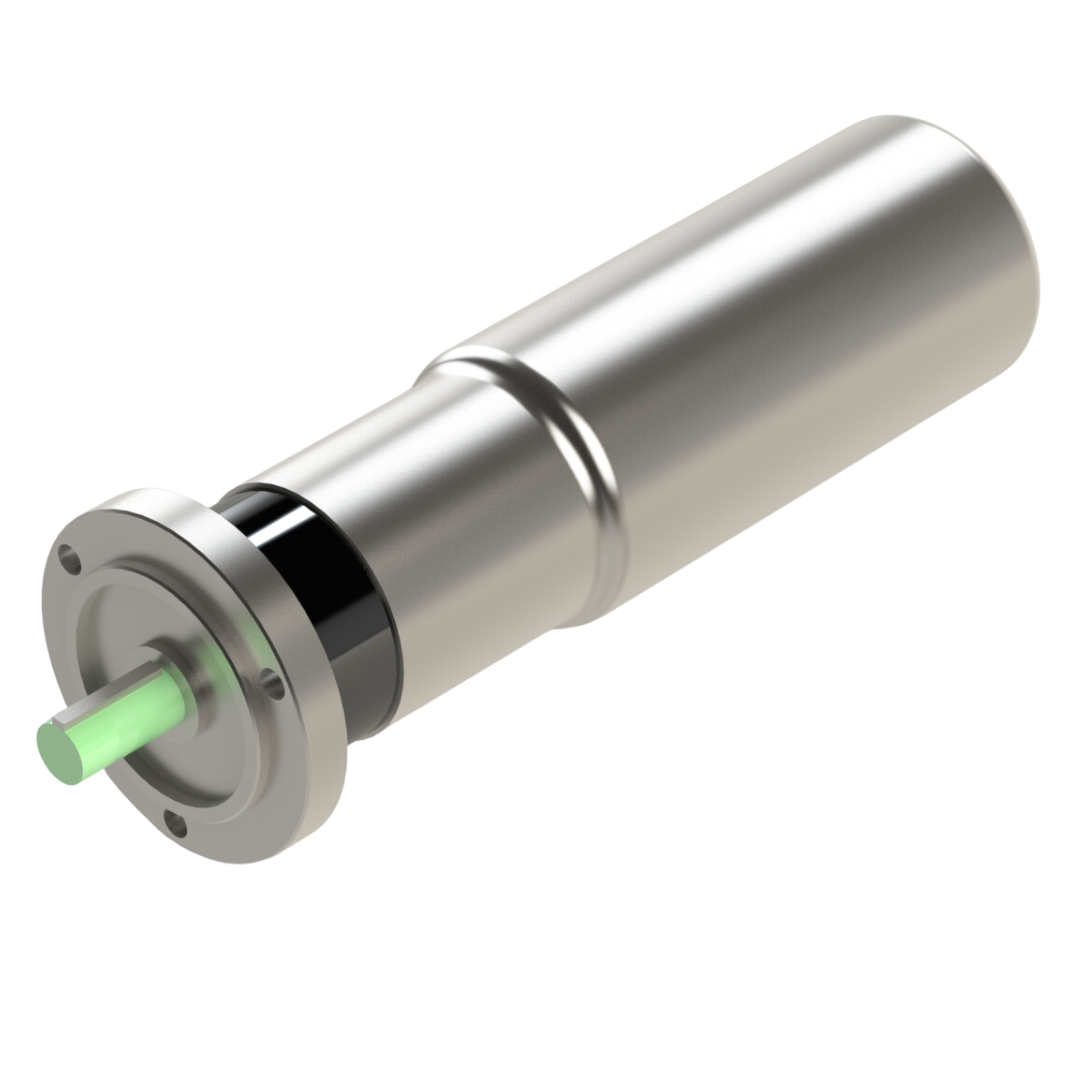

    9950 Pneumatic motor for AR460HP and AR610HP

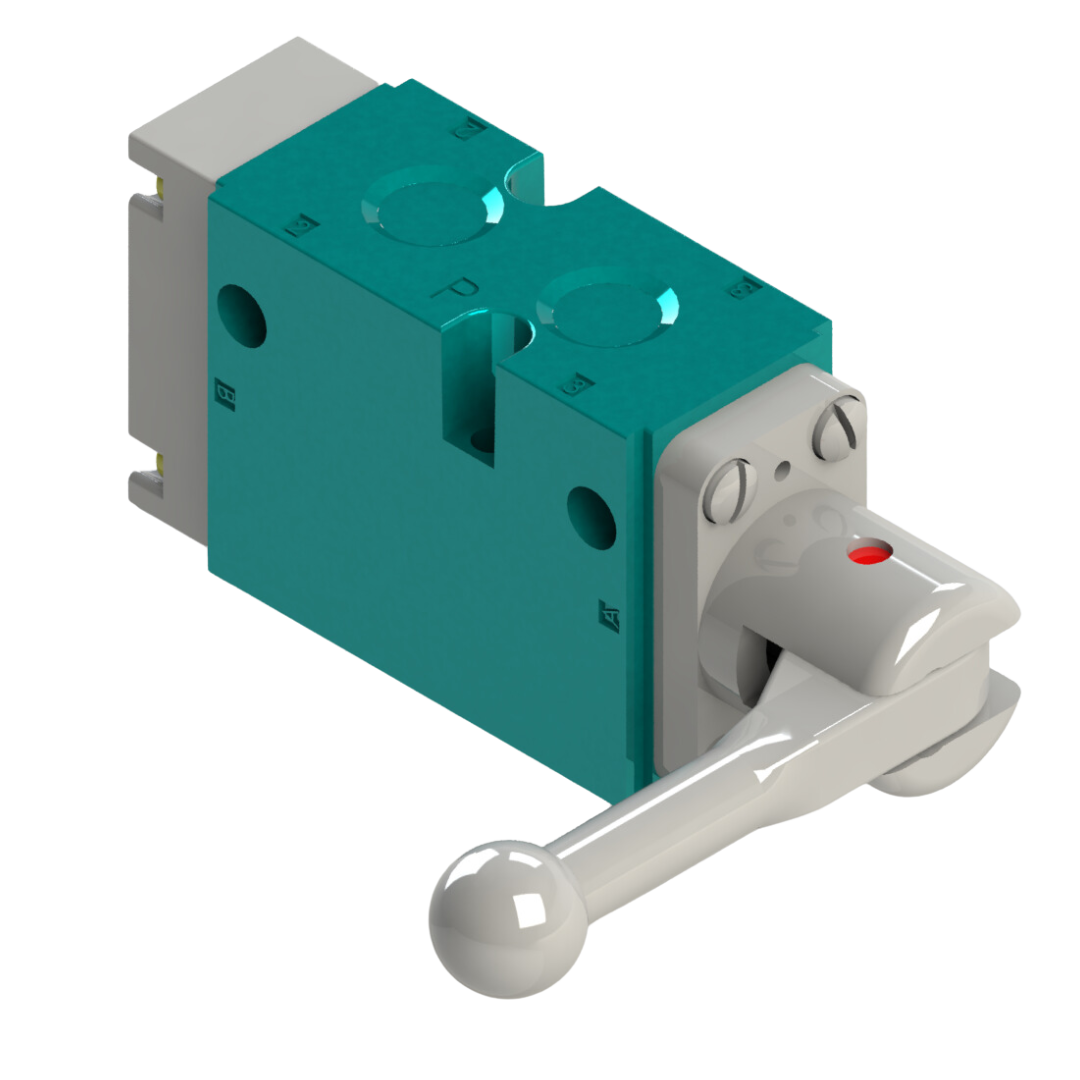

    9953 Air Valve - Pull hand lever to suit penumatic R series hosreel

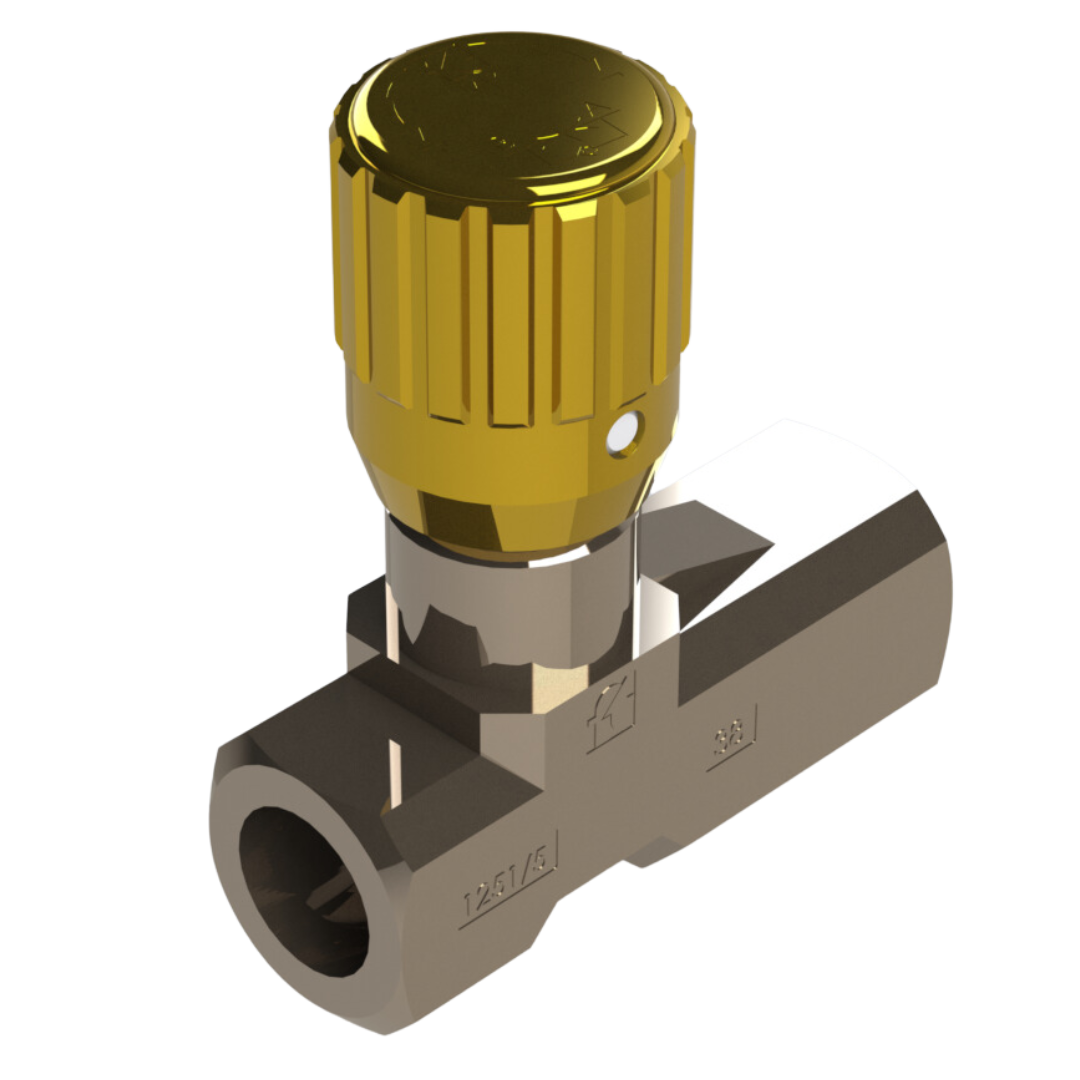

    FT1251538 FT1251538 Flow Control Valve ⅜ Adjustable

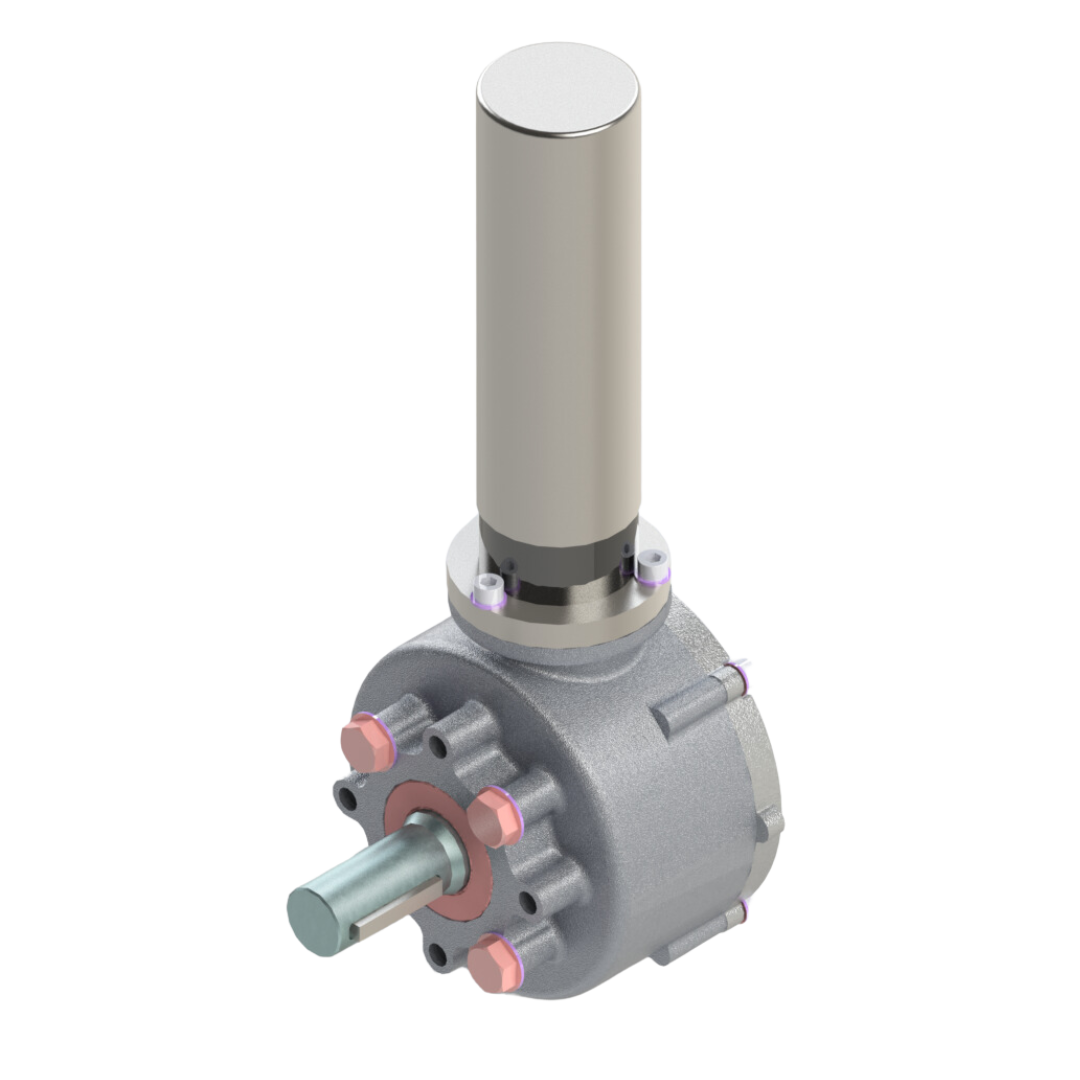

    R310HP-26 5383 Pneumatic motor with gearbox assembly to suit AR310HP series hosereels

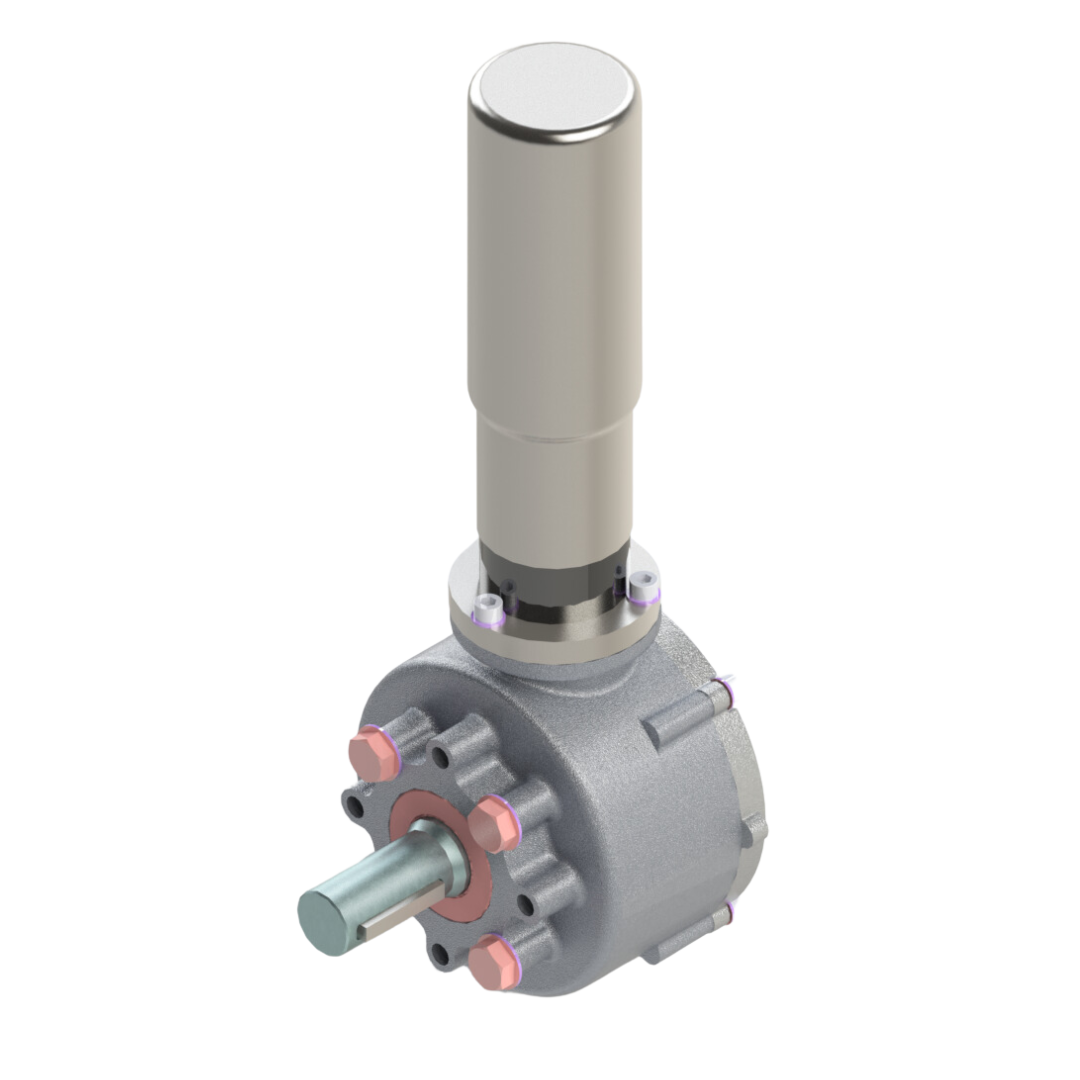

    R310HP-26L 9950 Pneumatic motor with gearbox assembly to suit AR460HP/ AR610HP series hosereels

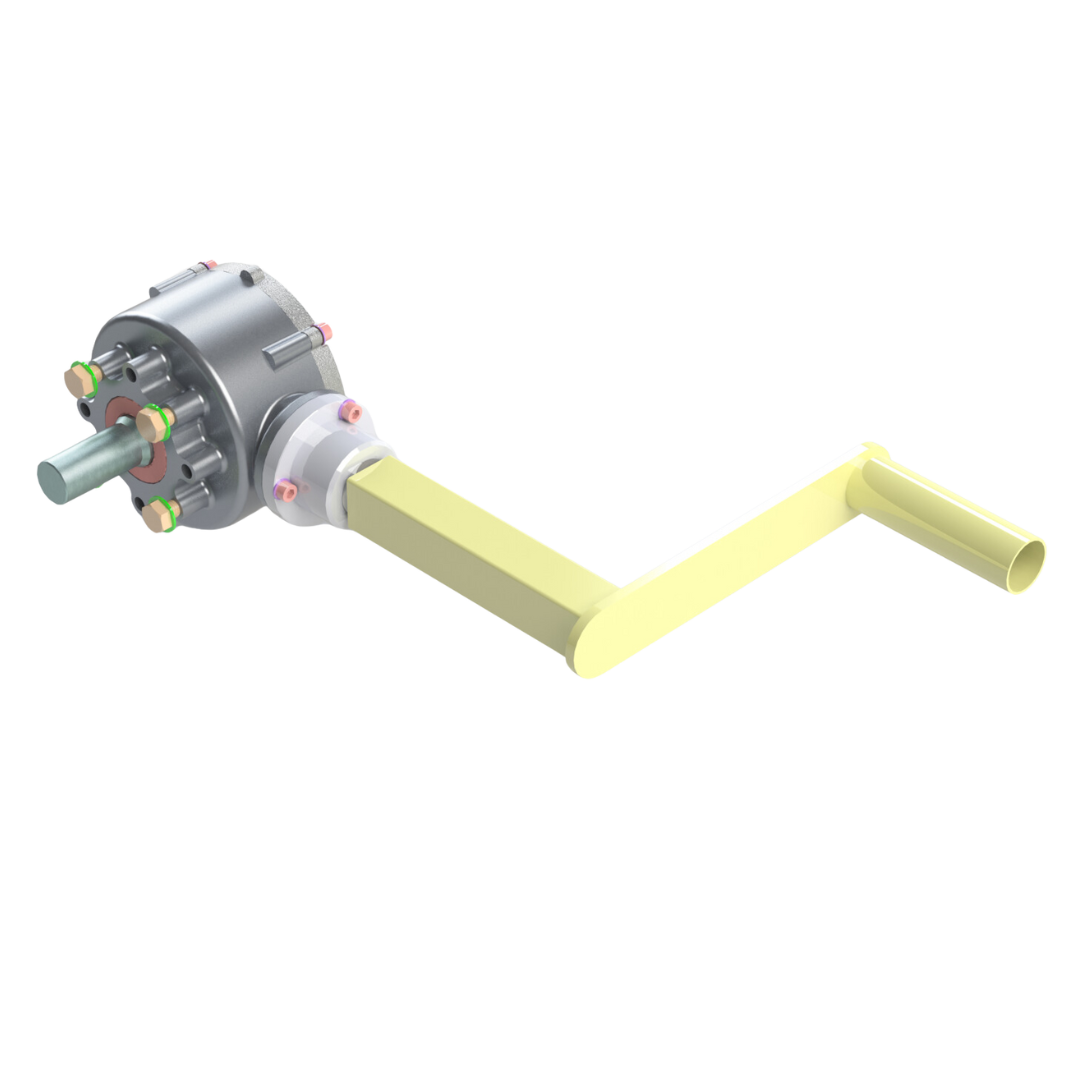

    R310HP-31 Manual crank handle and gearbox assembly

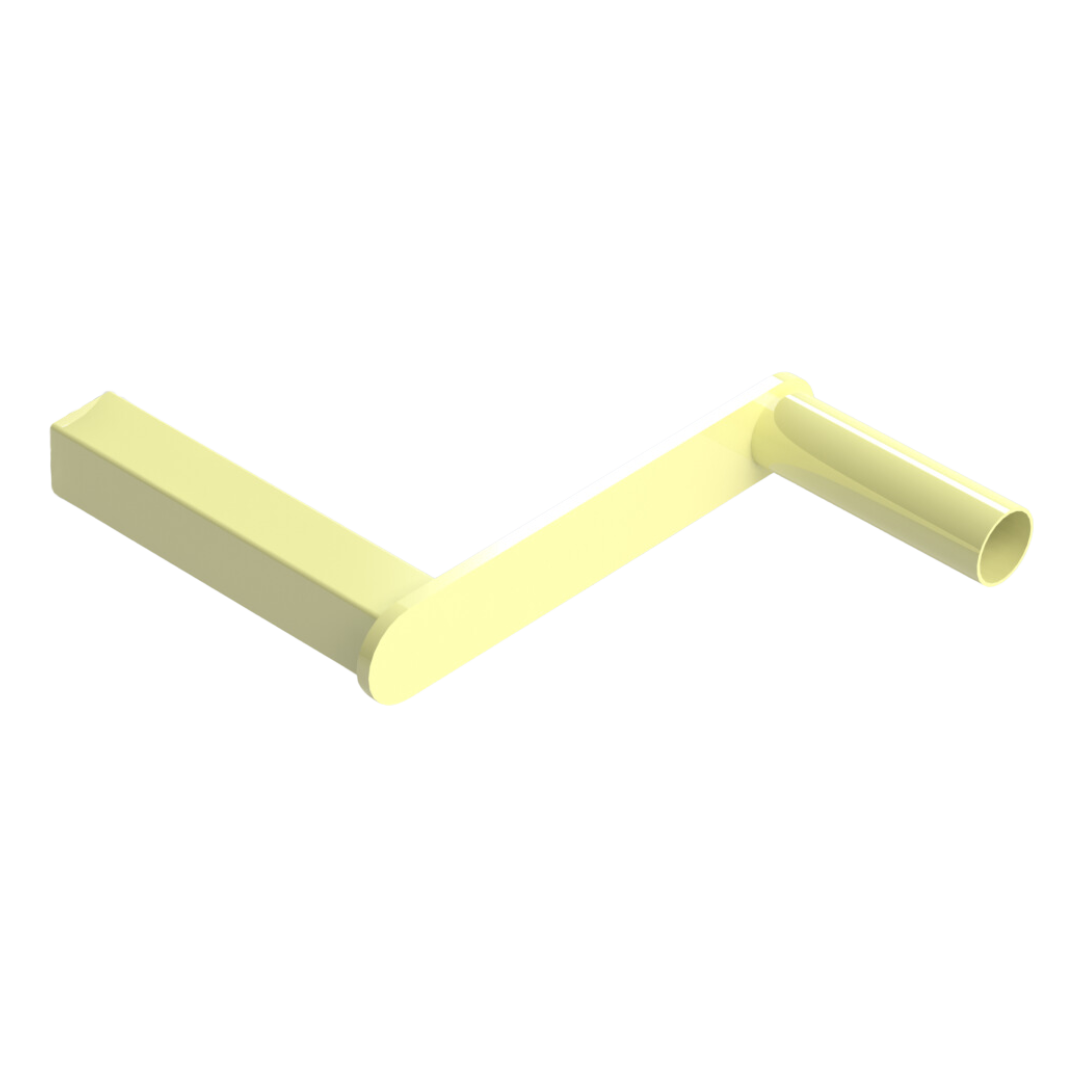

    R310HP-34 Handle Assembly only

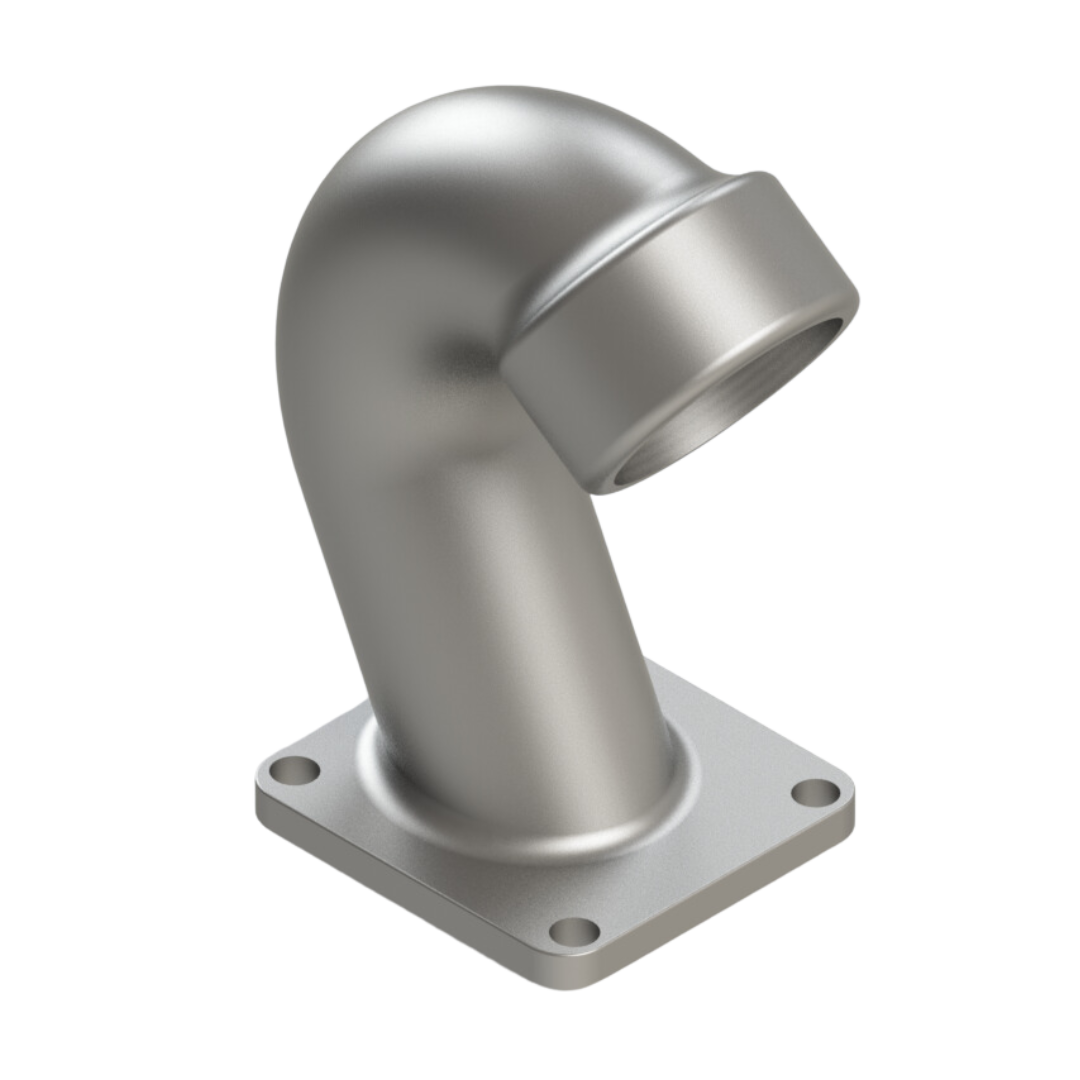

    R310HP-4 Gooseneck S/S - 1½” BSPT
