Stainless Steel Flexible Connectors

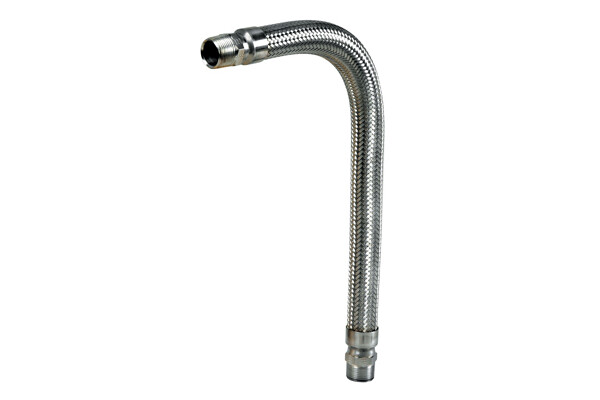

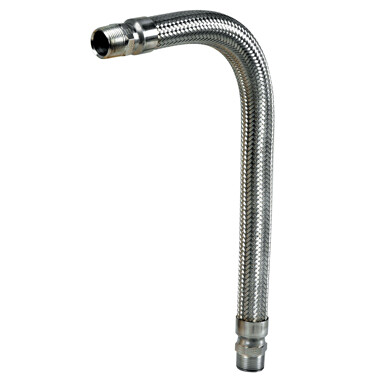

Stainless Steel Flexible Connectors provide flexibility in the installation and operation of fuel piping systems. Flexible Connectors can be used as a convenient means of connecting piping to pumps and dispensers and throughout the piping systems where connections and changes of direction are necessary. Flexible Connectors dampen the effect of ground and/or piping movement.

All stainless steel construction ensures long service life and corrosion protection. Flexible Connectors are rated for 150 psig (10 bar) working pressure, as well as for full vacuum service. Compatible with diesel, gasoline, methanol, ethanol and MTBE. Available as Male by Male and Male Swivel by Male, Male 90º and Easy Clamp Connectors.

NAFTA approved, can be used in any country.

Features & Benefits
  • Maximum working pressure: 150 PSIG (10 bar)
  • Service temperature range: –320° F to 1500° F
  • Minimum burst pressure: 750 PSIG (52 bar)
  • Inherent hoop strength of convoluted hose allows full vacuum service

Recommended products for replacement

    Categories
    Technical Information

    Materials
    Hose:     322 Stainless Steel..
    Wire Braid: 304 Stainless Steel.
    Pipe Nipples: SCH. #80 Stainless Steel.
    Swivel: Viton®/Buna Seals.

    Approvals

    Ordering Information

    Ordering Specifications - Male x Male


    Max. Angular Bending (Degree)
    Max. Lateral Offset
    Min. Bend Radius
    Model No.
    NPT Thread Size
    Length
    Hose O.D.
    Static Pos.
    Intermit. Flexing
    Static Install.
    Intermit. Flexing
    Static Install.
    Intermit. Flexing
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    FC075-MM12
    .75
    19.1
    12
    304.8
    1.0
    25.4
    100º
    55º
    2.0
    50.8
    1.2
    30.5
    4.5
    114.3
    8
    203.2
    FC10-MM12
    1
    25.4
    12
    304.8
    1.3
    33.0
    70º
    45º
    1.4
    35.6
    0.9
    22.9
    5.5
    139.7
    9
    228.6
    FC10-MM18
    1
    25.4
    18
    457.2
    1.3
    33.0
    135º
    85º
    4.5
    114.3
    2.1
    53.3
    5.5
    139.7
    9
    228.6
    FC10-MM24
    1
    25.4
    24
    609.6
    1.3
    33.0
    180º
    125º
    8.6
    218.4
    2.1
    53.3
    5.5
    139.7
    9
    228.6
    FC15-MM12
    1.5
    38.1
    12
    304.8
    2.25
    57.2
    90º
    35º
    1.5
    38.1
    .75
    19.1
    4
    101.6
    11
    279.4
    FC15-MM14
    1.5
    38.1
    14
    355.6
    2.25
    57.2
    90º
    35º
    1.5
    38.1
    .75
    19.1
    4
    101.6
    11
    279.4
    FC15-MM18
    1.5
    38.1
    18
    457.2
    2.25
    57.2
    150º
    55º
    4.0
    101.6
    1.5
    38.1
    4
    101.6
    11
    279.4
    FC15-MM24
    1.5
    38.1
    24
    609.6
    2.25
    57.2
    180º
    85º
    8.0
    203.2
    2.75
    69.9
    4
    101.6
    11
    279.4
    FC15-MM30
    1.5
    38.1
    30
    762.0
    2.25
    57.2
    180º
    115º
    12.0
    304.8
    2.75
    69.9
    4
    101.6
    11
    279.4
    FC20-MM12
    2
    50.8
    12
    304.8
    2.72
    69.1
    75º
    30º
    1.5
    38.1
    0.60
    15.2
    5
    127.0
    12
    304.8
    FC20-MM14
    2
    50.8
    14
    355.6
    2.72
    69.1
    75º
    30º
    1.5
    38.1
    0.60
    15.2
    5
    127.0
    12
    304.8
    FC20-MM18
    2
    50.8
    18
    457.2
    2.72
    69.1
    120º
    50º
    3.0
    76.2
    1.5
    38.1
    5
    127.0
    12
    304.8
    FC20-MM24
    2
    50.8
    24
    609.6
    2.72
    69.1
    180º
    75º
    7.0
    177.8
    3.0
    76.2
    5
    127.0
    12
    304.8
    FC20-MM36
    2
    50.8
    36
    914.4
    2.72
    69.1
    180º
    105º
    12.0
    304.8
    3.0
    76.2
    5
    127.0
    12
    304.8
    FC30-MM18
    3
    76.2
    18
    457.2
    3.97
    100.8
    70º
    35º
    2.0
    50.8
    1.0
    25.4
    8
    203.2
    16
    406.4
    FC30-MM24
    3
    76.2
    24
    609.6
    3.97
    100.8
    110º
    55º
    4.8
    121.9
    2.5
    63.5
    8
    203.2
    16
    406.4


    Ordering Specifications - Male Swivel x Male


    Max. Angular Bending (Degree)
    Max. Lateral Offset
    Min. Bend Radius
    Model No.
    NPT Thread Size
    Length
    Hose O.D.
    Static Position
    Intermit. Flexing
    Static Install.
    Intermit. Flexing
    Static Install.
    Intermit. Flexing
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    FC15-SWM12
    1.5
    19.1
    12
    304.8
    2.25
    57.2
    90°
    35°
    1.5
    38.1
    0.75
    19.1
    4
    101.6
    11
    279.4
    FC15-SWM14
    1.5
    25.4
    14
    355.6
    2.25
    57.2
    90°
    35°
    1.5
    38.1
    0.75
    19.1
    4
    101.6
    11
    279.4
    FC15-SWM18
    1.5
    25.4
    18
    457.2
    2.25
    57.2
    150°
    55°
    4.0
    101.6
    1.50
    38.1
    4
    101.6
    11
    279.4
    FC15-SWM24
    1.5
    25.4
    24
    609.6
    2.25
    57.2
    180°
    85°
    8.0
    203.2
    2.75
    69.9
    4
    101.6
    11
    279.4
    FC20-SWM12
    2
    38.1
    12
    304.8
    2.72
    69.1
    75°
    30°
    1.5
    38.1
    0.60
    15.2
    5
    127.0
    12
    304.8
    FC20-SWM14
    2
    38.1
    14
    355.6
    2.72
    69.1
    75°
    30°
    1.5
    38.1
    0.60
    15.2
    5
    127.0
    12
    304.8
    FC20-SWM18
    2
    38.1
    18
    457.2
    2.72
    69.1
    120°
    50°
    3.0
    76.2
    1.50
    38.1
    5
    127.0
    12
    304.8
    FC20-SWM24
    2
    38.1
    24
    609.6
    2.72
    69.1
    180°
    75°
    7.0
    177.8
    3.0
    76.2
    5
    127.0
    12
    304.8

    • Contact customer service for special sizes or other applications such as female threads, swivels and elbow fittings.
    • In North America call 800-422-2525. International call 513-870-3315.

    Note: Stainless Steel Flexible Connector models listed above are for use in NAFTA countries only, such as Canada and Mexico.
