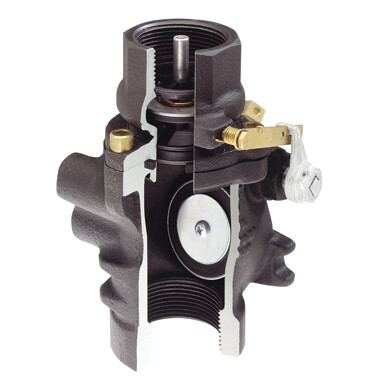

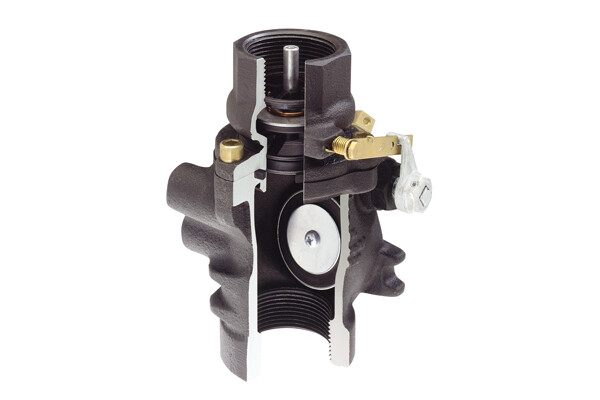

10 Series Emergency Shut-Off Valves



OPW 10 Series Emergency Shut-off Valves are installed on fuel supply lines beneath dispensers at grade level to minimize hazards associated with collision or fire at the dispenser. If the dispenser is pulled over or dislodged by collision, the top of the valve breaks off at the integral shear groove, activating poppets and shutting off the flow of fuel. Single-poppet models shut off supply flow, while double-poppet models shut off supply as well as prevent release of fuel from the dispenser’s internal piping. The base of the emergency valve is securely anchored to the concrete dispenser island through a stabilizer bar system within the dispenser sump or pan to ensure proper shearing action.

The valve base is secured to the stabilizer bar using a three-point boss mount system or a U-Bolt Kit (not included) 10UBK-015 (1-1/2") and 10URK-0200 (2 sold separately). Valve inlet (bottom) connections are female pipe threads and outlet (top) connections are available with female threads, male threads or a union fitting. Other options include suction system models with a normally closed secondary poppet which maintains prime, and models with external threads on the inlet body which connect to secondary containment systems.

Recommended products for replacement

Categories
Features & Benefits
  • High Flow Capacity – The primary poppet is held out of the flow stream while the secondary poppet is held normally open to minimize head loss across the valve and to protect the poppet seals from damage and erosion. True 1-1/2" (4 cm) and 2" (5 cm) body sizes ensure maximum flow.
  • Fire Protection – A fusible link trips the valve closed at 165° F to shut off fuel supply to the dispenser.
  • Main Poppet Seat Integral to the Top Assembly – Having the main poppet seat as an integral part of the valve top assures a new, clean seating surface is installed each time the top is replaced. This design also ensures that the integrity of the seal between the valve top and bottom is verified during line testing and allows full inspection of the main poppet when the top is removed.
  • Duragard®-Coat Finish – Provides superior corrosion resistance.
  • Reliable Shut-off – A stainless steel main spring, a Teflon®-coated brass packing nut, and a copper/nickel/ chrome-plated brass stem are designed to prevent tar build-up and corrosion from interfering with poppet operation after long periods of normal service without activation.
  • Integral Test Port – A 3/8" (9.5 mm) Test Port allows the piping system to be air-tested without breaking any piping connections.
  • Patented Thermal Relief Valve – Relieves excessive pressure over 25 psi caused by thermal expansion of fuel in the dispenser piping system in the event of fire (double-poppet models only).
  • Low-Profile Tops – Female and Union-top double-poppet valves have a low-profile top to allow upgrading from OPW single-poppet valves without changing existing piping.
  • Multiple Mounting Options – Valves are boss-mounted to stabilizer bars in sumps and pans or mounted to bars embedded in the island with optional U-Bolt kits 10UBK-015 (not included). Versatile Combination Body (boss mount/U-Bolt mount) models are available to accommodate most mounting applications with one valve style.
  • Underwriters Laboratories – Listed for use with gasoline and 85% and 100% methanol. All OPW 10 Emergency Shut-Off Valves meet requirements of UL STANDARD 842.
  • Compatible with 85% ethanol (E85)
Technical Information

Materials

Top: Cast iron.
Body: Cast iron.
Disc: M-19.
Carrier: Zinc-plated steel.
Stem: Copper-nickel-chrome-plated brass.
Poppet spring: Stainless steel.
Seal: M-19 O-ring.
Packing Nut: Brass, Teflon®-coated.
Inlet and outlet thread: 1 1/2" (4 cm) NPT (British threads available).
With black Duragard® E-coating

Important Notice

When mounting the OPW 10 Series Emergency Shut-off Valves, the anchoring system employed must withstand a force greater than 650 ft. pounds per valve. NFPA Code 30A, Automotive and Marine Service Station Code, requires that the automatic closing feature of emergency shut-off valves be checked at least once per year by manually tripping the hold-open linkage. OPW recommends the use of PISCES® Stabilizer Bar Support System for proper mounting of 10 Series Valves.

Notice

As per NFPA 30A, electrical supply to the submersible pump must always be disconnected before servicing meters, dispensers or emergency shut-off valves.

Ordering Information
Female Threaded Top (Outlet) Connection Valves
Model No.
Body Size
Connection Threads
Poppet Configuration
Application
Replacement Top
in.
cm
10BF-5725
1-1/2
4
NPT
Single
Pressure
10RFT-5750
10BFP-5726
1-1/2
4
NPT
Double
Pressure
10FTP-5701
10RF-2001
2
5
NPT
Single
Pressure
10RFT-5742
10RFP-2002
2
5
NPT
Double
Pressure
10RFTP-5752
Male Threaded-Top (Outlet) Connection Valves
Model No.
Body Size
Connection Threads
Poppet Configuration
Application
Replacement Top
in.
cm
10BM-5825
1-1/2
4
NPT
Single
Pressure
10RMT-5850
10BHMP-5830
1-1/2
4
NPT
Double
Pressure
10RMTP-5851
10SBHMP-5830
1-1/2
4
NPT
Double
Suction
10SHMTP-5811
10RM-2003
2
5
NPT
Single
Pressure
10RMT-5842
10RMP-2004
2
5
NPT
Double
Pressure
10RMTP-5852

Union-Top (Outlet) Connection Valves
Model No.
Body Size
Connection Threads
Poppet Configuration
Application
Replacement Top
in.
cm
10BU-5925
1-1/2
4
NPT
Single
Pressure
10RUTC-5975
10BUP-5926
1-1/2
4
NPT
Double
Pressure
10UTCP-5901
10SBUP-5926
1-1/2
4
NPT
Double
Suction
10SUTCP-5911
10RU-2005
2
5
NPT
Single
Pressure
10RUTC-5962
10RUP-2006
2
5
NPT
Double
Pressure
10RUTCP-5972
Note: All BSPP Thread Shear Valves must be ordered through OPW's Europe or Asia office.


Dimensions

1-1/2" Dimensions


10BF
10BFP
10BM
10BHMP
10BU
10BUP
10SBFP
10SBHMP
10SBUP
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
A
6-21/64
161
6-21/64
161
6-13/16
173
7-11/16
195
7-1/4
184
7-1/4
184
B
2-3/4
70
2-3/4
70
2-3/4
70
2-3/4
70
2-3/4
70
2-3/4
70
C
2-11/16
69
2-11/16
69
2-11/16
69
2-11/16
69
2-11/16
69
2-11/16
69
D
1-3/4
44
1-3/4
44
2-1/4
57
3-1/8
79
2-11/16
69
2-11/16
69


2" Dimensions


10RF
10RM
10RU
10RFP
10RMP
10RUP
10RFS
10RMS
10RUS
10RFSP
10RMSP
10RUSP
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
A
8-3/8
213
9-27/32
250
9-13/32
239
8-3/8
213
9-27/32
250
9-13/32
239
B
3-7/64
79
3-7/64
79
3-7/64
79
3-7/64
79
3-7/64
79
3-7/64
79
C
3-1/4
83
3-1/4
83
3-1/4
83
3-1/4
83
3-1/4
83
3-1/4
83
D
3-1/16
78
4-9/16
116
3-7/8
98
3-1/16
78
4-9/16
116
3-7/8
98




PA15 Offset Adaptor

The PA15 Offset Adaptor is designed for adjusting misalignment of pipe in dispenser sumps and suction stubs. The PA15 has a low profile feature, and is designed for maximum flow.


Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart
FEMALE THREADED TOP (OUTLET) CONNECTION VALVES
10BF-5725 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Single), Application(Pressure), Replacement Top(10RFT-5750)
10BFP-5726 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Pressure), Replacement Top(10FTP-5701)
10RF-2001 Body Size(2in / 5cm), Connection Threads(NPT), Poppet Configuration(Single), Application(Pressure), Replacement Top(10RFT-5742)
10RFP-2002 Body Size(2in / 5cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Pressure), Replacement Top(10RFTP-5752)
MALE THREADED-TOP (OUTLET) CONNECTION VALVES
10BHMP-5830 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Pressure), Replacement Top(10RMTP-5851)
10BM-5825 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Single), Application(Pressure), Replacement Top(10RMT-5850)
10RM-2003 Body Size(2in / 5cm), Connection Threads(NPT), Poppet Configuration(Single), Application(Pressure), Replacement Top(10RMT-5842)
10RMP-2004 Body Size(2in / 5cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Pressure), Replacement Top(10RMTP-5852)
10SBHMP-5830 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Suction), Replacement Top(10SHMTP-5811)
UNION-TOP (OUTLET) CONNECTION VALVES
10BU-5925 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Single), Application(Pressure), Replacement Top(10RUTC-5975)
10BUP-5926 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Pressure), Replacement Top(10UTCP-5901)
10RU-2005 Body Size(2in / 5cm), Connection Threads(NPT), Poppet Configuration(Single), Application(Pressure), Replacement Top(10RUTC-5962)
10RUP-2006 Body Size(2in / 5cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Pressure), Replacement Top(10RUTCP-5972)
10SBUP-5926 Body Size(1-1/2in / 4cm), Connection Threads(NPT), Poppet Configuration(Double), Application(Suction), Replacement Top(10SUTCP-5911)
