Special Application Sumps & Extensions

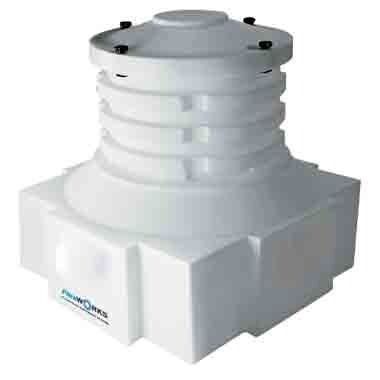

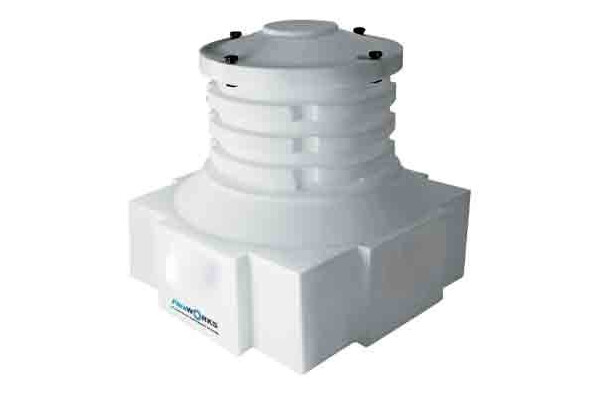

FlexWorks™ Special Application Sumps are installed below-grade and provide a convenient means of housing a multitude of underground piping connections and equipment, including valves, filters, meters and pumps. The PSL-3830 Line Connection Sump has large horizontal flats to accommodate multiple piping entries. The PSL-3630 Tall Mini-Sump has long vertical flats to accommodate applications with varying pipe entry heights. The PSL-2430 Mini-Sump is ideal for connecting long pipe runs in a contained area.
-
Ordering Information
Model # Application Manway Diameter
Dimensions
A Cover
B Height
Dimension C x E
No. of Panels
E Base
Burial Depth
Weight
Max.
Min.
in.
mm
in.
cm
in.
cm
in.
cm
in.
mm
in.
mm
in.
mm
lbs.
kg
PSL-2430 Special Application Sump, 24" x 30" 30
762
27
686
24
914
16 x 10
406 x 254
8
26
660
36
914
26
660
36
16
PSL-3830 In-Line Sump, 38" x 30" 30
762
27
686
36
914
12 x 38
305 x 965
12
38
965
41
1041
29
737
85
38
PSL-3630 Special Application Sump, 36" x 30" 30
762
27
686
36
914
28 x 20
711 x 254
8
26
660
48
1219
40
1016
42
19
Special Application Sump Dimensions
