Flexible Piping Systems for Fuel Oil and Generator Applications

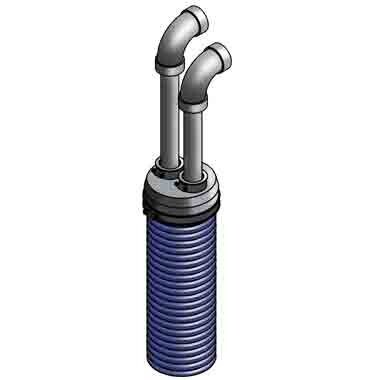

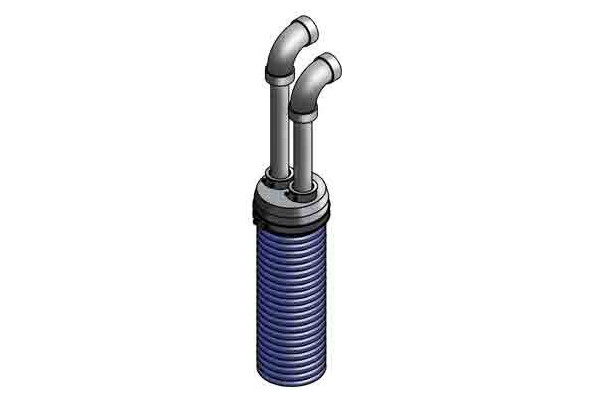

The FlexWorks Fuel Oil Piping System is designed to provide a reliable fuel supply system to generators and boilers from remote fuel tanks. Typical applications include both a 3/4" supply and a 1" overflow return line running from a remote AST or UST to a generator engine or boiler day tank. Both lines are typically inserted into a common FlexWorks Access Pipe to provide retractable access to the fuel lines. See page 10 for fuel oil pipe. OPW will cut fuel oil pipe to length at no charge.

Features & Benefits

AST Applications

Recommended products for replacement

    Technical Information
    Ordering Information

    Ordering Specifications – Specialty Fitting

    Item Number Application

    Weight

    lbs.

    kg

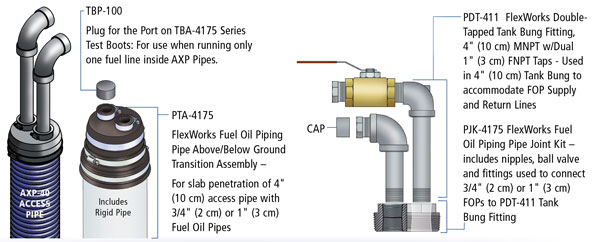

    PDT-411 4" x 1" x 1" Double Tap Bushing 12 5
    PJK-4175 4" x 1" x 3/4" Pipe Joining Kit 10 4.5
    PTA-4175 Transition Assembly 8 3.5
    TBA-4175 4" Fuel Oil Boot Transition Assembly 1 0.5
    TBA-4175A 4" Fuel Oil Boot Transition Assembly with Air Stem 1 0.5
    SBC-2075 Swivel Bolt-On Coupling 3/4" NPT
    SBC-2100 Swivel Bolt-On Coupling 1" NPT
    DEB-4175 3/4" and 1" Double Entry Boot Fitting 3.25 1.47

    Specialty Fittings - 3/4" and 1"

    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    SPECIALTY FITTING

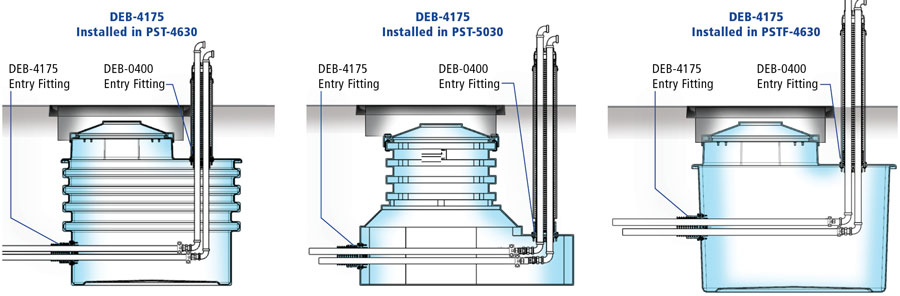

    DEB-4175 Application: 3/4" and 1" Double Entry Boot Fitting
    PDT-411 Application: 4" x 1" x 1" Double Tap Bushing
    PJK-4175 Application: 4" x 1" x 3/4" Pipe Joining Kit
    PTA-4175 Application: Transition Assembly
    SBC-2075 Application: Swivel Bolt-On Coupling 3/4" NPT
    SBC-2100 Application: Swivel Bolt-On Coupling 1" NPT
    TBA-4175 Application: 4" Fuel Oil Boot Transition Assembly
    TBA-4175A Application: 4" Fuel Oil Boot Transition Assembly with Air Stem
