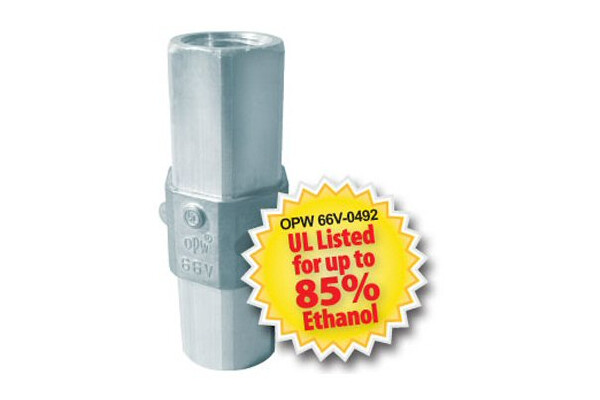

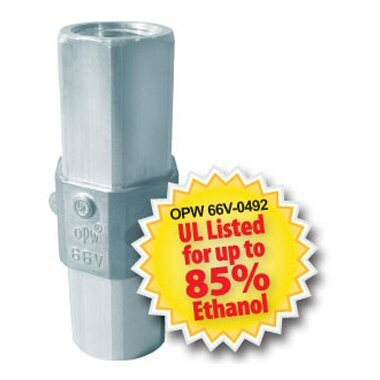

66V Series Breakaways



The OPW 66V Series breakaways are designed and rigorously tested for use in today’s fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation, stopping the flow of fuel from both the dispenser and the separated hose, reducing environmental and health risks of potential spilled fuel.

OPW 66H Series of Hoses

The OPW 66H Hoses are UL approved, steel reinforced hardwall flexible to -40°F. 3/4 inch inside diameter with 3/4 inch male NPT chrome crimped ends. Compatible with fuel blends up to E-15 & B-20. Maximum working pressure 50PSI. Also available in Low Permeation per UL330.

Features & Benefits
  • UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
  • Prevents Costly Damage to Dispensers – Pulls apart at less the designed pull force during drive-offs.
  • Certainty of Operation – Designed for single use, so you know it is replaced instead of re-assembled.
  • Prevents Hazardous and Costly Clean Up – Unique double poppet design closes leak path from both dispenser and separated hose side.

Recommended products for replacement

    Categories
    Technical Information

    Design working pressure

    • 50 psi (3.45 bar) maximum pressure.

         Note:
         OPW 66V Series Breakaways must always be installed with a “straightening” hose with a minimum length of 9" for the ¾" Series and a minimum length of 12" for the 1" Series,
         such as the 66H Series hoses.

    Materials

    • Body: Aluminum

    • Seals: Buna-N and Viton®

    • Weight: See matrix in the Ordering Specifications

    Performance

    Listings & Certifications

    Note: OPW 66V Series Breakaways must always be installed with a "straightening" hose with a minimum length of 9" for the ¾" Series and a minimum length of 12" for the 1" Series, such as the 66H Series hoses.



    Ordering Information
    Item Number

    Size

    Weight

    		 Description - Pull Force

    in.

    mm

    lbs.

    kg
    66V-0300

    3/4 F x 3/4 F (NPT)

    19 F x 19 F

    0.6

    0.27

    		 Valve / No More Than 300 lb.
    66V-030RF**

    3/4 F x 3/4 F (NPT)

    19 F x 19 F

    0.6

    0.27

    		 Valve / No More Than 300 lb.
    66V-0492*

    3/4 F x 3/4 F (NPT)

    19 F x 19 F

    0.6

    0.27

    		 Valve for up to E85 / No More Than 300 lb.
    66V-1300

    1 F x 1 F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 300 lb.
    66V-130RF***

    1 F x 1 F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 300 lb.
    66V-1350

    1 F x 1 F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 350 lb.
    66V-135RF***

    1 F x 1 F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 350 lb.
    66-0075

    3/4 F x 3/4 M (NPT)

    19 F x 19 M

    1.46

    0.66

    		 Valve w/ 9" Hose/300 lb.
    66-1300

    1 F x 1 M (NPT)

    25 F x 25 M

    2.5

    1.13

    		 Valve w/ 12" Hose/300 lb.
    66S-0075

    3/4

    19

    0.2

    0.1

    		 Black Vinyl Scuff Guard Cover
    66S-1300

    1

    25

    0.2

    0.1

    		 Black Vinyl Scuff Guard Cover

    * 66V-0492 is UL Listed for up to 85% Ethanol.

    ** 66V-030RF is UL Listed for up to 25% Ethanol and 20% Biodiesel

    *** 66V-130RF and 66V-135RF are UL Listed for up to 20% Biodiesel

    66V Series 3/4" Instruction Sheet Order Number: H10993PA

    66V Series 1" Instruction Sheet Order Number: H10993PA

    66S Series Instruction Sheet Order Number: H11015PA



    66H Series Hoses - Ordering Specifications

    Item Number Length

    Size

    Weight

    		 Description

    in.

    mm

    lbs.

    kg
    66H-0975 9 inch (23 cm)

    3/4 M x 3/4 M (NPT)

    19 M x 19 M

    0.75

    0.34

    		 Straightening Hose
    66H-0975-LP 9 inch (23 cm)

    3/4 M x 3/4 M (NPT)

    19 M x 19 M

    0.75

    0.34

    Straightening Hose LOW PERMEATION per 3rd Party Approval
    66H-1300 12 inch (30 cm)

    1 M x 1 M (NPT)

    25 M x 25 M

    1.40

    0.63

    		 Straightening Hose
    66H-08575 8.5 feet (2.6 m)

    3/4 M x 3/4 M (NPT)

    19 M x 19 M

    4

    0.1.8

    		 Curb Hose
    66H-08575-LP 8.5 feet (2.6 m)

    3/4 M x 3/4 M (NPT)

    19 M x 19 M

    4

    1.8

    		 Curb Hose LOW PERMEATION per 3rd Party Approval
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    66-0075 Size(3/4 F x 3/4 M (NPT) (in) / 19 F x 19 M (mm)), Weight(1.46lbs / 0.66kg), Description - Pull Force(Valve w/ 9" Hose/300 lb.)
    66-1300 Size(1 F x 1 M (NPT) (in) / 25 F x 25 M (mm)), Weight(2.5lbs / 1.13kg), Description - Pull Force(Valve w/ 12" Hose/300 lb.)
    66S-0075 Size(44654 (in) / 19 (mm)), Weight(0.2lbs / 0.1kg), Description - Pull Force(Black Vinyl Scuff Guard Cover)
    66S-1300 Size(1 (in) / 25 (mm)), Weight(0.2lbs / 0.1kg), Description - Pull Force(Black Vinyl Scuff Guard Cover)
    66V-0300 Size(3/4 F x 3/4 F (NPT) (in) / 19 F x 19 F (mm)), Weight(0.6lbs / 0.27kg), Description - Pull Force(Valve / No More Than 300 lb.)
    66V-030RF Size(3/4 F x 3/4 F (NPT) (in) / 19 F x 19 F (mm)), Weight(0.6lbs / 0.27kg), Description - Pull Force(Valve / No More Than 300 lb.)
    66V-0492 Size(3/4 F x 3/4 F (NPT) (in) / 19 F x 19 F (mm)), Weight(0.6lbs / 0.27kg), Description - Pull Force(Valve for up to E85 / No More Than 300 lb.)
    66V-1300 Size(1 F x 1 F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description - Pull Force(Valve / No More Than 300 lb.)
    66V-130RF Size(1 F x 1 F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description - Pull Force(Valve / No More Than 300 lb.)
    66V-1350 Size(1 F x 1 F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description - Pull Force(Valve / No More Than 350 lb.)
    66V-135RF Size(1 F x 1 F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description - Pull Force(Valve / No More Than 350 lb.)
    66H SERIES HOSES
    66H-08575 Size(3/4 M x 3/4 M (NPT) (in) / 19 M x 19 M (mm)), Weight(4lbs / 0.1.8kg), Length(8.5 feet (2.6 m)), Description(Curb Hose)
    66H-08575-LP Size(3/4 M x 3/4 M (NPT) (in) / 19 M x 19 M (mm)), Weight(4lbs / 1.8kg), Length(8.5 feet (2.6 m)), Description(Curb Hose LOW PERMEATION per 3rd Party Approval)
    66H-0975 Size(3/4 M x 3/4 M (NPT) (in) / 19 M x 19 M (mm)), Weight(0.75lbs / 0.34kg), Length(9 inch (23 cm)), Description(Straightening Hose)
    66H-0975-LP Size(3/4 M x 3/4 M (NPT) (in) / 19 M x 19 M (mm)), Weight(0.75lbs / 0.34kg), Length(9 inch (23 cm)), Description(Straightening Hose LOW PERMEATION per 3rd Party Approval)
    66H-1300 Size(1 M x 1 M (NPT) (in) / 25 M x 25 M (mm)), Weight(1.4lbs / 0.63kg), Length(12 inch (30 cm)), Description(Straightening Hose)
