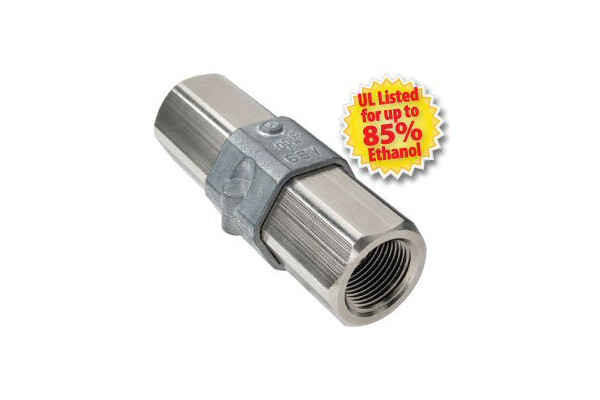

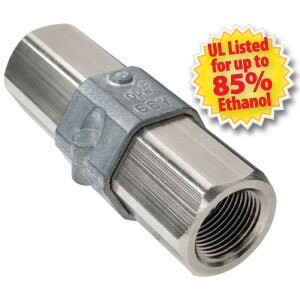

66V-0492 Ethanol Breakaway
The OPW 66V Series breakaways are designed and rigorously tested for use in today's fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation stopping the flow of fuel from both the dispenser and the separated hose, reducing environmental and health risks of potential spilled fuel.
- UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
- Prevents costly damage to dispensers – Pulls apart at less the designed pull force during drive-offs.
- Certainty of operation – Designed for single use, so you know it is replaced instead of re-assembled.
- Prevents hazardous and costly clean up – Unique double poppet design closes leak path from both dispenser and separated hose side.
-
Technical Information
Design working pressure
50 PSI (3.45 bar) maximum pressure.Materials
Body: aluminium w/ nickel plating
Seals: Buna-N and Viton®
Disc & Seals: Viton®
Weight: 0.60 lbs., 0.27 kgPerformance
Listings & Certifications
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
|
66-0075 | Size(3/4" F x 3/4" M (NPT) (in) / 19 F x 19 M (mm)), Weight(1.46lbs / 0.66kg), Description(Valve w/ 9" Hose / No More Than 300 lb.) | |
|
|
66-1300 | Size(1" F x 1" M (NPT) (in) / 25 F x 25 M (mm)), Weight(2.5lbs / 1.13kg), Description(Valve w/ 12" Hose / Maximum 300 lb.) | |
|
|
66S-0075 | Size(3/4" in / 19 mm), Weight(0.2lbs / 0.1kg), Description(Vinyl Scuff Guard Cover) | |
|
|
66S-1300 | Size(1" in / 25 mm), Weight(0.2lbs / 0.1kg), Description(Vinyl Scuff Guard Cover) | |
|
|
66V-0300 | Size(3/4" F x 3/4" F (NPT) (in) / 19 F x 19 F (mm)), Weight(0.6lbs / 0.27kg), Description(Valve / No More Than 300 lb.) | |
|
|
66V-030RF | Size(3/4" F x 3/4" F (NPT) (in) / 19 F x 19 F (mm)), Weight(0.6lbs / 0.27kg), Description(Valve / No More Than 300 lb.) | |
|
|
66V-0492 | Size(3/4" F x 3/4" F (NPT) (in) / 19 F x 19 F (mm)), Weight(0.6lbs / 0.27kg), Description(Valve for up to E85 /No More Than 300 lb.) | |
|
|
66V-0492 | Size(3/4" F x 3/4" F (NPT) (in) / 19 F x 19 F (mm)), Weight(0.6lbs / 0.27kg), Description(Valve for up to E85 / No More Than 300 lb.) | |
|
|
66V-1300 | Size(1" F x 1" F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description(Valve / No More Than 300 lb.) | |
|
|
66V-130RF | Size(1" F x 1" F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description(Valve / No More Than 300 lb.) | |
|
|
66V-1350 | Size(1" F x 1" F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description(Valve / No More Than 350 lb.) | |
|
|
66V-135RF | Size(1" F x 1" F (NPT) (in) / 25 F x 25 F (mm)), Weight(0.98lbs / 0.45kg), Description(Valve / No More Than 350 lb.) |
