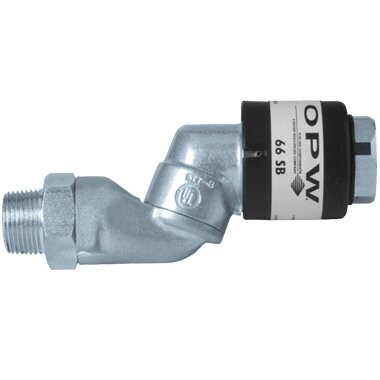

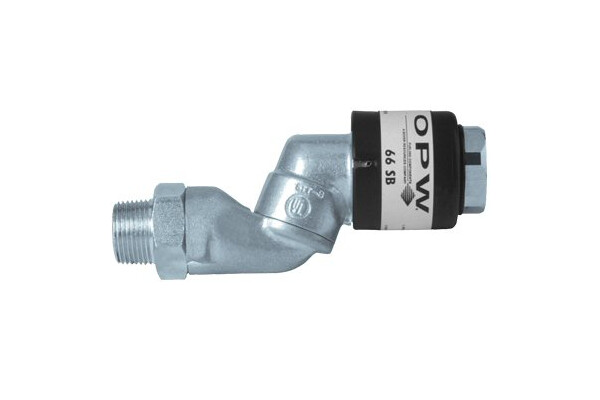

66SB Swivel Breakaway
The OPW 66SB Swivel Breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360° swivel rotation at both the male end and middle joint, with a simple and easily-reconnectable breakaway on the opposite end.
Features & Benefits
- UL and ULC listed for use in gasoline, diesel and up to 10% ethanol blends. See specific listings.
- Pull Force - the 66SB will break away with a pull force of no more than 350 lbs.
- Easily Reconnected at Waist Height - after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
- Protected Coupling and Poppet - the breakaway's poppet and sealing surface are protected from impact during separation by a plastic sleeve.
- Reduces Connections - the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points.
- Double O-Ring Seal - both swivel joints are protected by a double O-Ring design.
-
Technical Information
Design working pressure
50 psi (3.45 bar) maximum pressure.Listings & Certifications
ULMaterials
Body: Aluminium
Sleeve: Nylon, HDPE
Seals: Viton®
Spring: Stainless steel
Poppet: Aluminium
Packed: 20 per case
Performance
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
|
66SB-1010 | BREAKAWAY SWIVEL 1" X 1" NPT | |
|
|
66SB-1010-BSPP | BREAKAWAY SWIVEL 1" X 1" BSPP | |
|
|

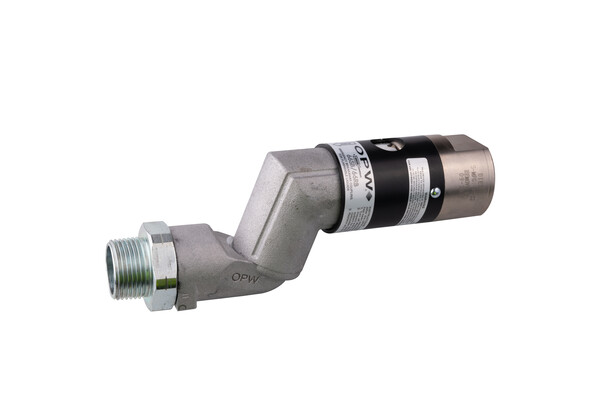

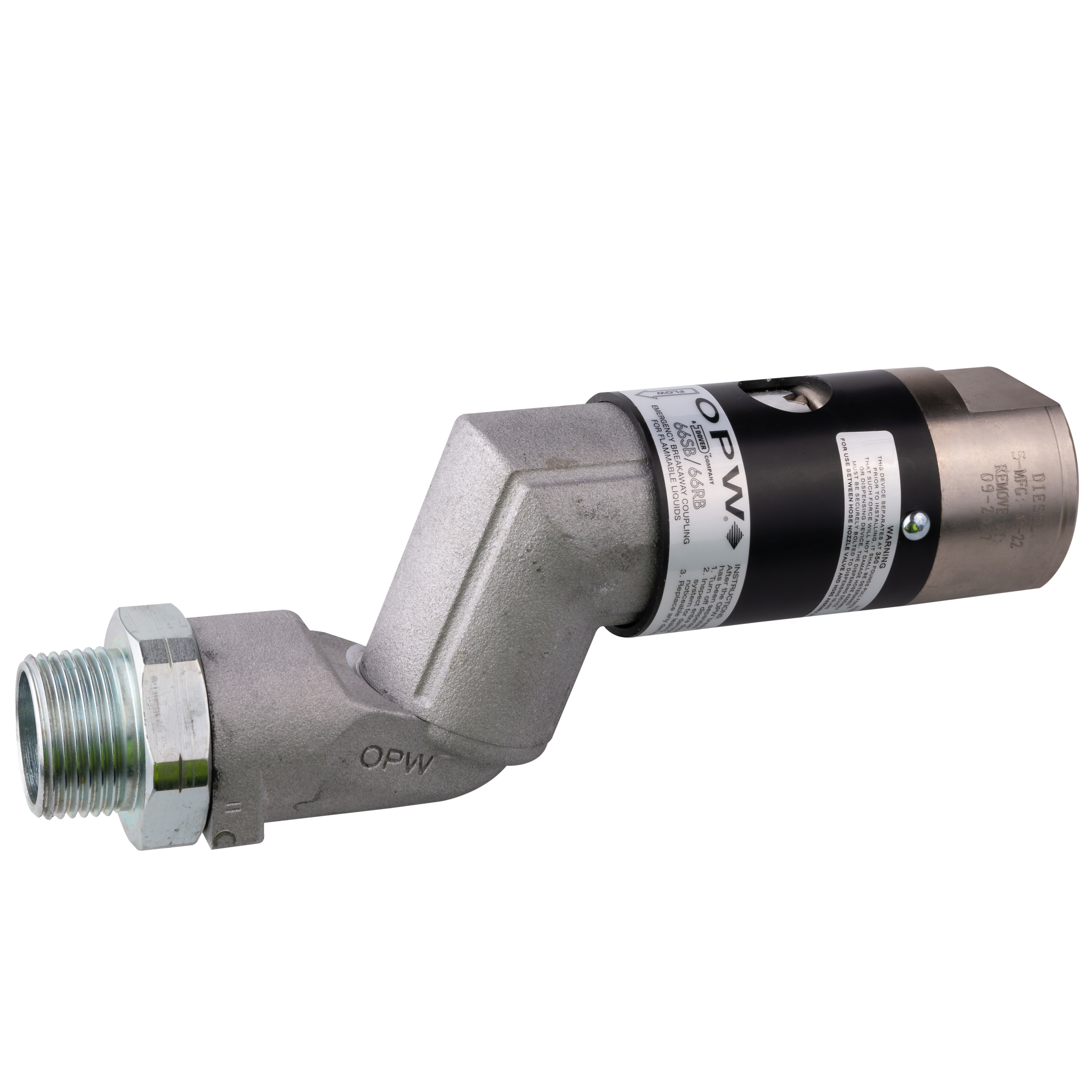

66SB-1010L | BREAKAWAY SWIVEL 1" X 1" BSPT |
