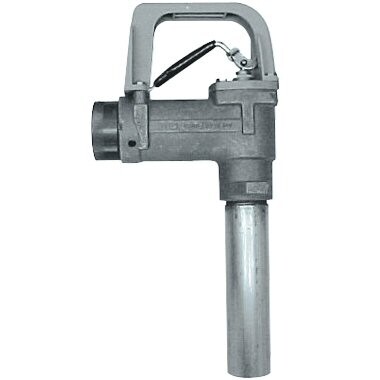

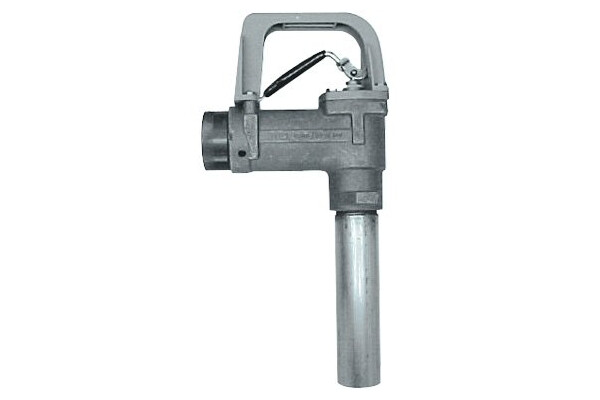

295SC High-Flow Nozzles



For High-Flow, Bulk Fuel Oil Delivery Service.

Features & Benefits
  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - easy-to-open nozzle against high inlet pressures.
  • Replacement Hold-Open Rack - one-hand control of hold-open mechanism means easy setting of flow speed. Nozzle must be attended at all times during usage.
  • Replaceable Composite Lever Guard - easy, low-cost replacement.
  • Right Angle Design - provides larger lever area for better grip and easier control; permits nozzle to fit into awkward spaces close to walls and into corners.
  • Adjustable Dash Pot - permits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum after flow.
  • Built-In Swivel - eliminates twisting and kinking of the hose. This swivel is hard-coated aluminium and has full-bearing surfaces.
  • Built-In Check Valve - prevents hose drainage after pump is turned off.
  • Vinyl-Coated Lever - insulates fingers against cold.
  • Easily Replaced Spout - the spout is easily threaded into the body. Replacement spouts are readily available from OPW.
  • NPT Female Threads at Inlet End - standard pipe threads accept all 1-1/4" or 1-1/2" male connections.

Recommended products for replacement

    Categories
    Technical Information

    Design working pressure

    • 110 psi (7.58 bar) maximum pressure

    Materials

    • Body: Cast aluminium
    • Main Stem: Stainless steel
    • Stem Seal: Buna-N O-Ring
    • Main Poppet Disc: Viton®
    • Spout: OPW 297 aluminium (optional)

    Performance



    Ordering Information
    Item Number

    Inlet Thread

    Weight

    in.

    mm

    lbs.

    kg
    295SC-0139

    1-1/4"

    32

    3.75

    1.7
    295SC-0141

    1-1/2"

    38

    4.33

    2.0

    295 Series Instruction Sheet Order Number: H09237PA

    Lever Guard Replacement Kit

    Item Number Description
    295KLG-0200 Short Grey for 295SC-0139
    295KLG-0250 Long Grey for 295SC-0141

    Replacement Parts – OPW 295SC High-Flow Nozzles

    Key Item Number Description 1¼" 11½" NPT 1½" 11½" NPT
    1 H09212 Cap S/A •
    1 H09213 Cap S/A   •
    2 C02115A Cap •
    2 C02117A Cap   •
    3 H12707M O-Ring • •
    4 H05063M Bushing (2 req’d) • •
    5 H05087M Felt Wiper • •
    6 H12705M O-Ring • •
    7 H04825M Adjusting Screw • •
    8 H08441RS Screw • •
    9 H05135M Retainer • •
    10 H07719 Main Poppet S/A • •
    11 H09417 Stem & Sec. Poppet •
    11 H09420 Stem & Sec. Poppet   •
    12 H12706M O-Ring • •
    13 H09367M Spring • •
    14 H05064M Spring • •
    15 H05088M Skirt • •
    16 H05198M Seal • •
    17 H04828M Seal • •
    18 H03981RE Pin • •
    19 215290 Cotter Pin • •
    20 H07580M Rivet • •
    21 H06045M Screw (2 req’d) • •
    22 295KLG-0200 Guard Kit •
    22 295KLG-0250 Guard Kit   •
    23 C04698M Hold-Open Rack • •
    23 H14105M Screw • •
    24 H09214 Poppet S/A •
    24 H09215 Poppet S/A   •
    25 H07593M Spring   •
    25 H07595M Spring •
    26 H07613M Washer •
    27 295SWK-0009 Swivel Repair Kit** • •
    27 295SWK-0014 Swivel Repair Kit**
    28 H08886M Dust Seal   •
    28 H01227M Dust Seal • •
    29 H08881M Thrust Bearing •
    29 H08889M Thrust Bearing   •
    30 H08882M Lock Ring •
    30 H08890M Lock Ring   •
    31 H09365M Retaining Ring •
    31 H09366M Retaining Ring   •
    32 H08879M Bearing •
    32 H08887M Bearing   •
    33 H12319M O-Ring •
    34 H08884M Bearing   •
    34 H08892M Bearing •
    35 H02477M Cotter Pin   •
    36 297-9020 Spout •
    36 297-9030 Spout   •
    37 H07062M Screw (4 req’d) • •
    38 H09712RS Retainer •
    38 H09713RS Retainer   •
    39 H13776M O-Ring, Viton® • •
    39 H13775M O-Ring, Viton® •

    * Replacement part for nozzles built after 08/1998. Parts are unavailable for nozzles built prior to this date. ** Includes 295SRK-0001 or 295SRK-0002 and contact ring.

    295SRK Seal Repair Kit

    Designed for use on 25 series swivels and 295 nozzles, the OPW 295SRK consists of a dust seal, 2 O-rings, 3 button-head screws, hex key and thread sealant.

    Item Number

    Used On

    295SRK-0001

    25 and 295 Series 1", 1-1/4" (NPT)

    295SRK-0002

    25 and 295 Series 1-1/2" (NPT)

    295SRK Materials

    • Body: electroless nickel-plated
    • Bearings: molded plastic
    • Seals: Buna-N O-Ring, felt dust seal, Viton® O-Ring
