Design working pressure
50 psi maximum pressure.
Materials
Body: Cast aluminium.
Main Stem: Stainless steel.
Stem Seal: Graphite with Teflon®.
Disc: Viton®.
Spout: OPW 296 brass or 297 aluminium (optional).
Catalog Page
Performance
210 High-Flow Nozzles
For High-Flow, Bulk Fuel Oil Delivery Service.
Designed to handle high flow when line pressure is not a critical consideration or otherwise absorbed.
Right angle construction provides an ergonomic and compact design for better grip and easier control, permitting the nozzle to fit into awkward space close to walls and into corners.
Can be supplied complete with spout.
Features & Benefits
- Aluminium Body - lighter weight, easier to maneuver.
- Dual Poppets - allows for low-flow metering.
- Replaceable Hold-Open Rack - for use when fueling large-capacity tanks. Nozzle must be attended at all times during usage.
- Dash Pot - non-adjustable, to minimize closing line shock.
- Right Angle Design - provides larger lever area for better grip and easier control; permits nozzle to fit into awkward spaces close to walls and into corners.
- Drag Lugs - protect the nozzle when dragged across rough surfaces; adds to long life with rough usage.
- Easily Replaced Spout - the spout is simply threaded into the body. Replacement spouts are readily available from OPW.
- NPT or BSP Female Threads at Inlet End - standard pipe threads accept all standard 1-1/4" and 1-1/2" male connections.
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
 |
210-0104 | Nozzle 1¼" NPT VITON, NO SPOUT **NPT THREADS** | |
|
|
210-0105 | Nozzle 1½" NPT VITON, NO SPOUT **NPT THREADS** | |
|
|

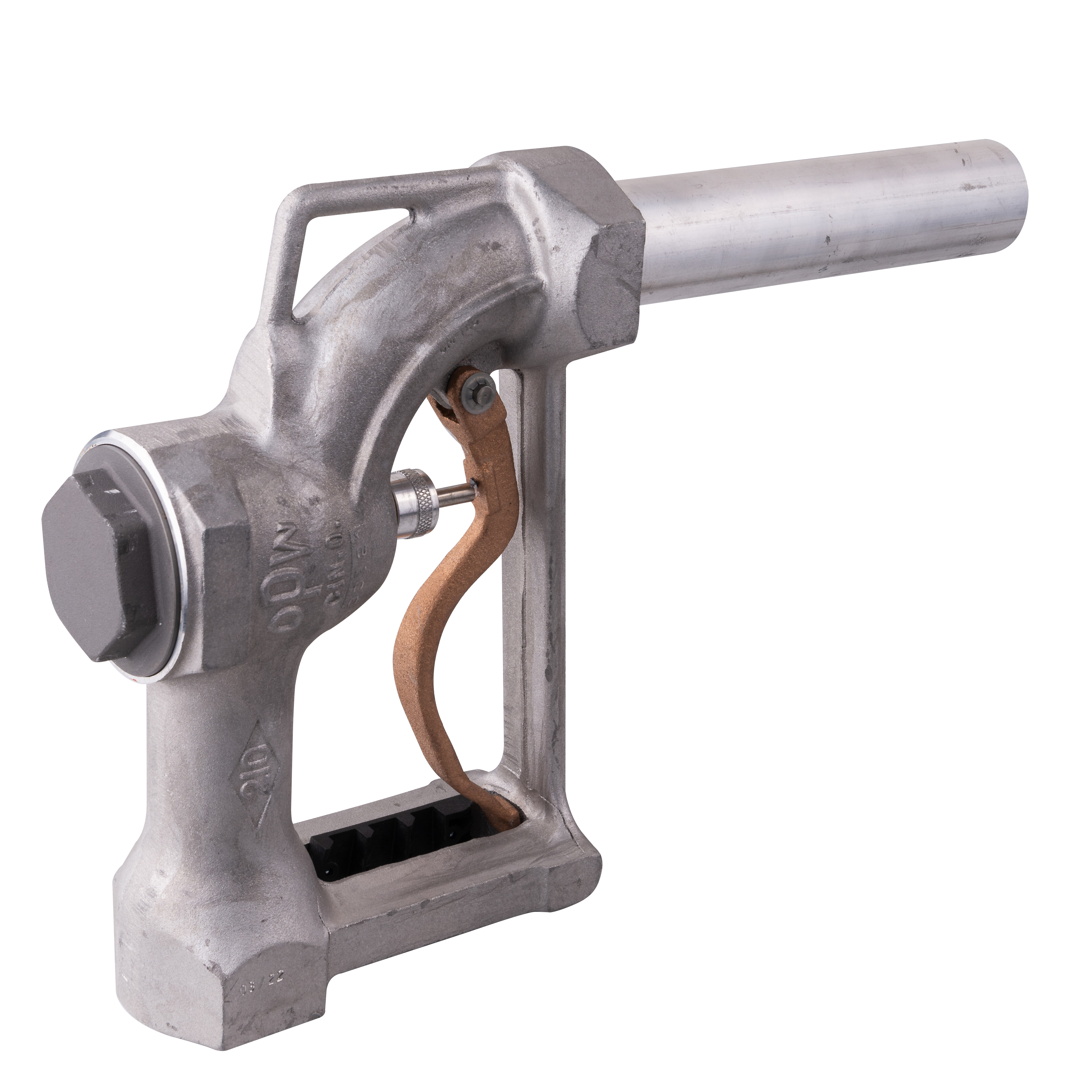

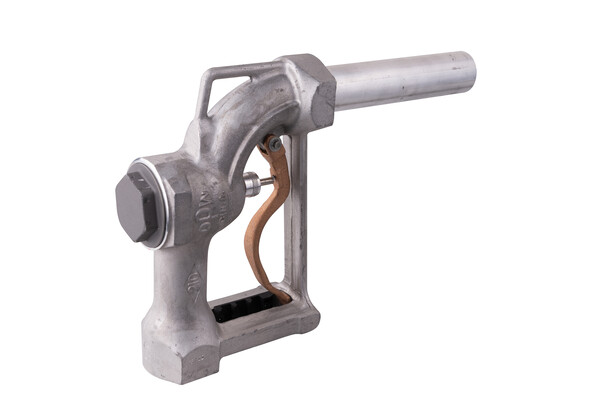

210L0104LLIQUIP | Nozzle 1 ¼" 210 BSPP W/ Spout. | |
|
|

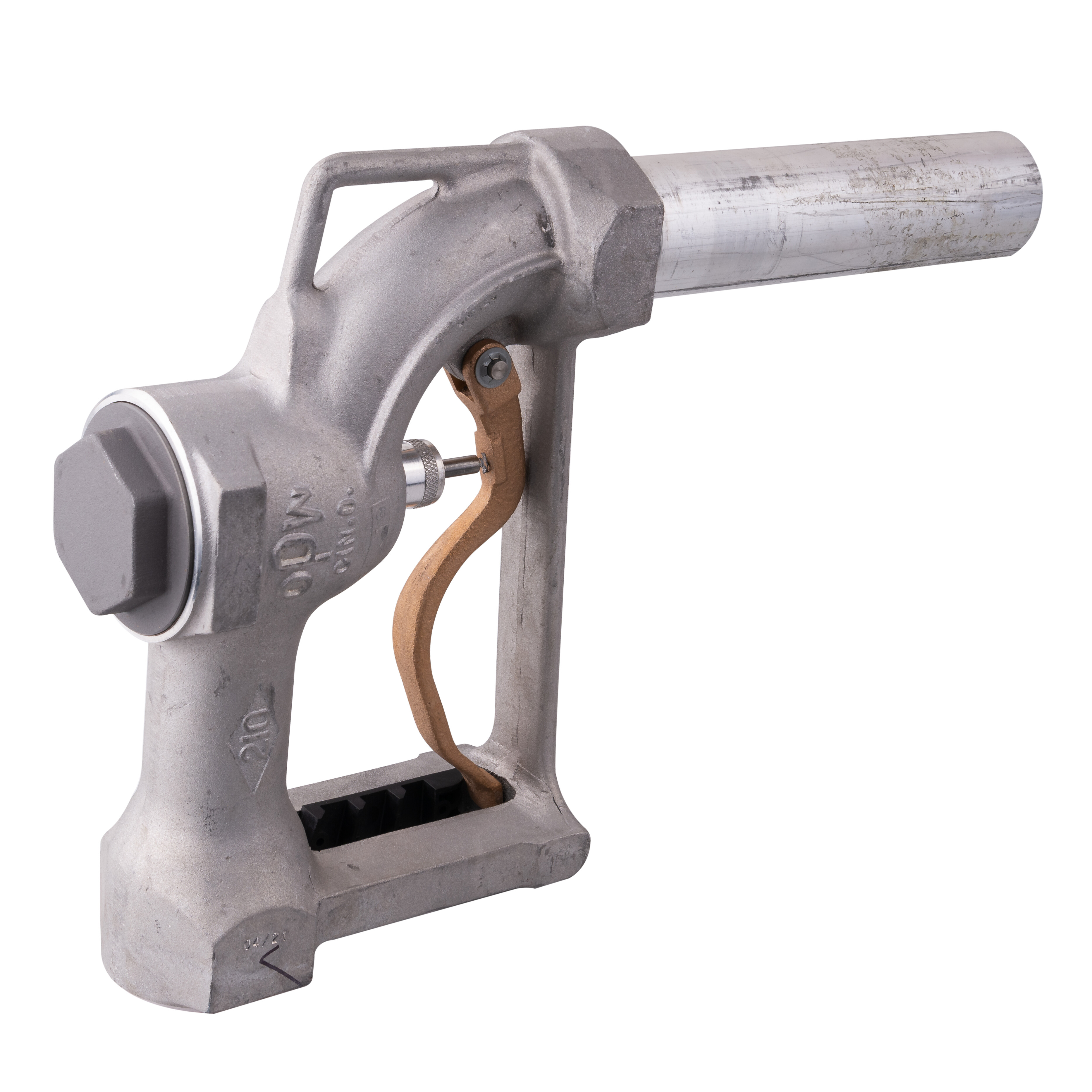

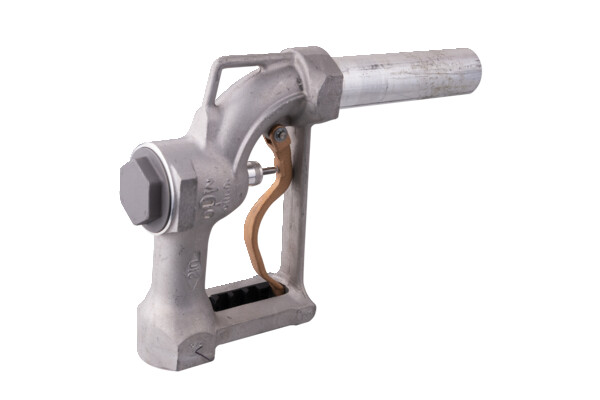

210L0105LLIQUIP | Nozzle 1½" 210 BSPP W/ Spout. | |
| SPARE PARTS | |||
|
|
190K-0001 | Upper Poppet suit 210 Nozzle | |
|
|
297-9020 | Aluminium Spout 1 ¼" NPT OPW SUIT 190L and 210L series nozzles. | |
|
|
297-9030 | Aluminium Spout 1 ½" NPT OPW SUIT 190L and 210L series nozzles. | |
|
|
C04495M | Packing suit 210 Nozzle | |
|
|
H00195RB | Stuffing Box suit 210 Nozzle | |
|
|
H00999M | Brass Lever suit 210 Nozzle | |
|
|
H01841 | Lower Disc S/A suit 210 Nozzle | |
|
|
H07012M | Packing gland suit 210 Nozzle | |
|
|
H08163M | NUT PUSH TO SUIT THE 190 LEVER | |
