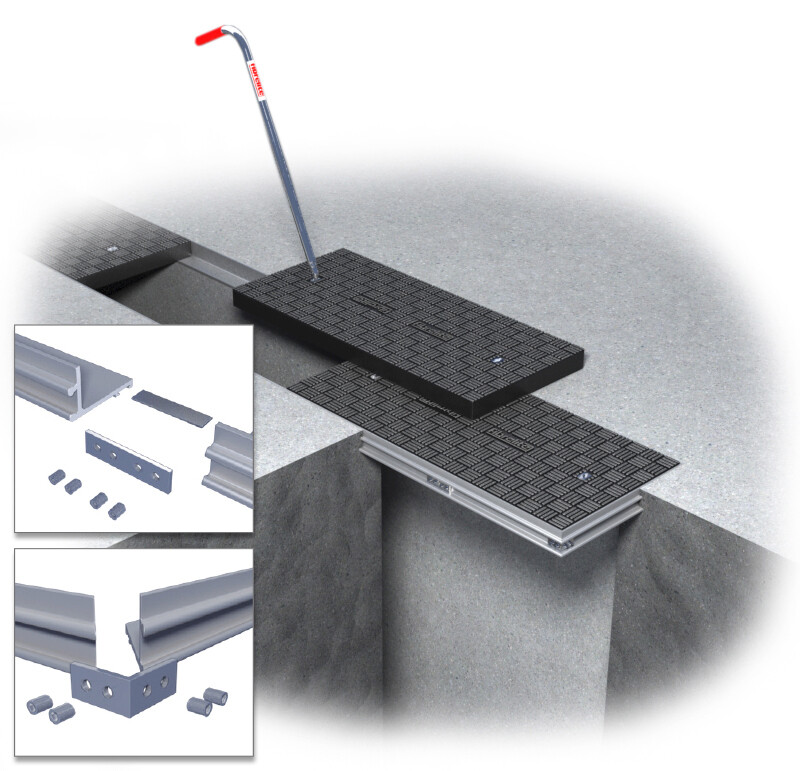

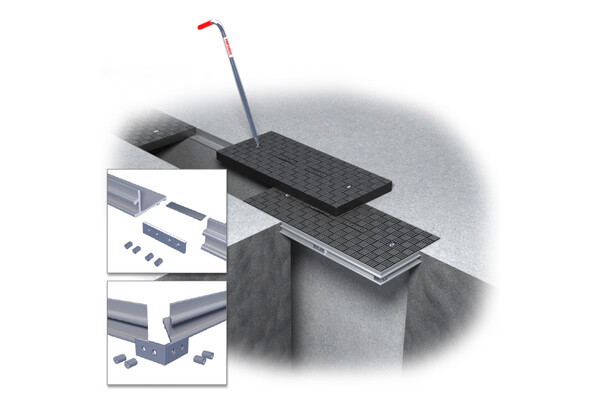

Trench Widths up to 1m (40”) – End to End Configuration



Frame or Rebate Installation

Recommended products for replacement

    Technical Information
    Dimension ’A’ Dimension ’B’ Depth Weight
    300 - 1000mm (12" - 40") 450 - 1800mm (18" - 72") 50mm (2”) 26 kg/M² (5 lbs/ft²)
    300 - 1000mm (12" - 40") 450 - 1800mm (18" - 72") 76mm (3") 30 kg/M² (6 lbs/ft²)
    300 - 1000mm (12" - 40") 450 - 1800mm (18" - 72") 101.6mm (4") 32 kg/M² (7 lbs/ft²)
    300 - 1000mm (12" - 40") 450 - 1800mm (18" - 72") 117mm (4 5⁄8") 37 kg/M² (8 lbs/ft²)
    300 - 1000mm (12" - 40") 450 - 1200mm (18" - 48") 203.2mm (8") 51 kg/M² (10 lbs/ft²)
    Ordering Information

    Please CONTACT LIQUIP for all ordering information.
