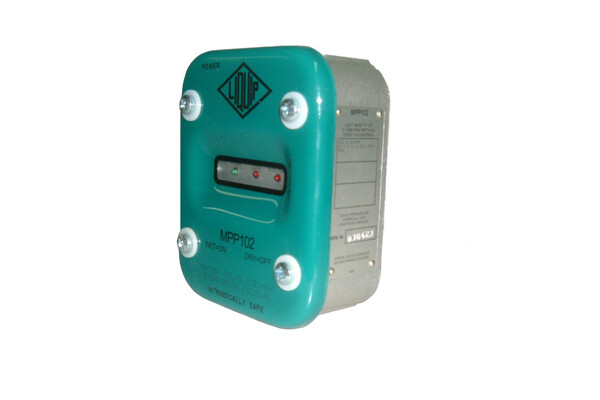

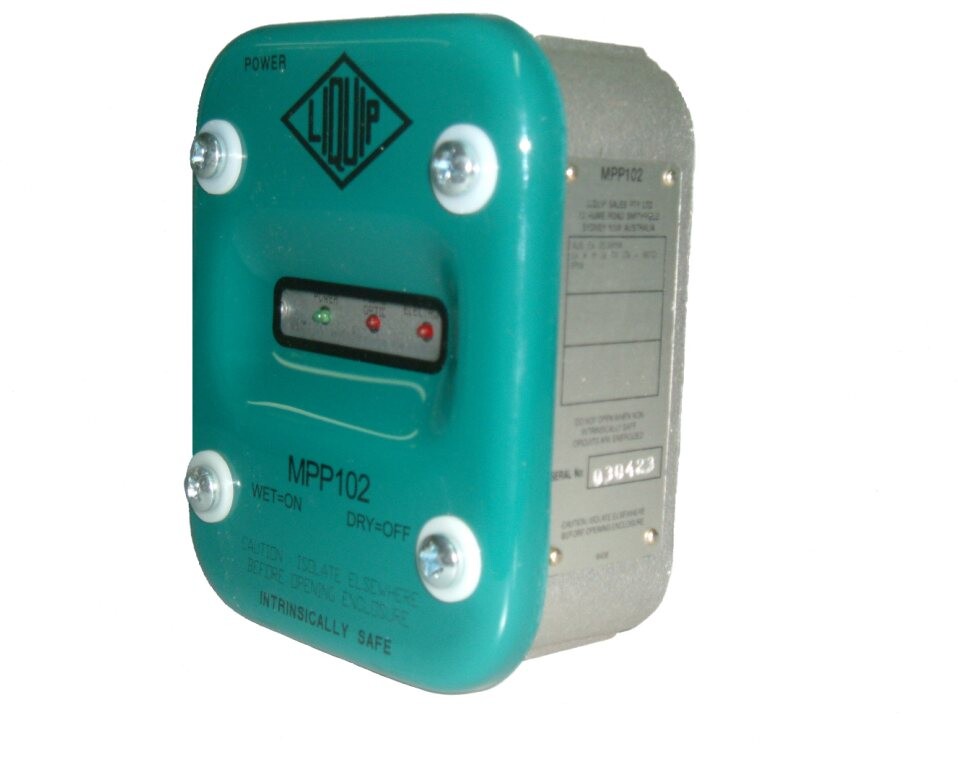

Mini On Board Monitor



Developed for sites or vehicles with one or two tanks or compartments only, but with a necessity for overfill protection and/or automatic reorder.

Features & Benefits
  • Extremely small, light and more economical to purchase than current 8 channel monitors.
  • Versatility was the key word during development.
  • Single 2 wire electronic overfill sensor.
  • Can connect directly to a pump, control valve, alarm etc

Recommended products for replacement

    Technical Information


    • Output controls are by switches, one being intrinsically safe to switch via the truck plug and gantry monitor. The other being a 8A power switch capable of operating a small air valve or relay in order to cut off liquid flow.
    • Switch provides both N/O and N/C outputs.
    • All sensor outputs are intrinsically safe.
    • Output signal by an integral relay rated at 24Vdc 8A or 12Vdc 8A.

    Voltage range
    11v to 30v DC.

    Operating Temperature
     -25 to +55ºC

    Cast aluminium housing Poly-carbonate cover

    Three wiring glands (either conduit or non conduit) are required and available as an option.


    Ordering Information

    MPP102: Mini On Board Overfill Monitor.

    Associated Equipment

    Probes: LDP202 series and AGP202  series.
    EAC201: earth assurance clamp
    JB100: junction box
    DP305: dummy probe
