Internal Drain Valve

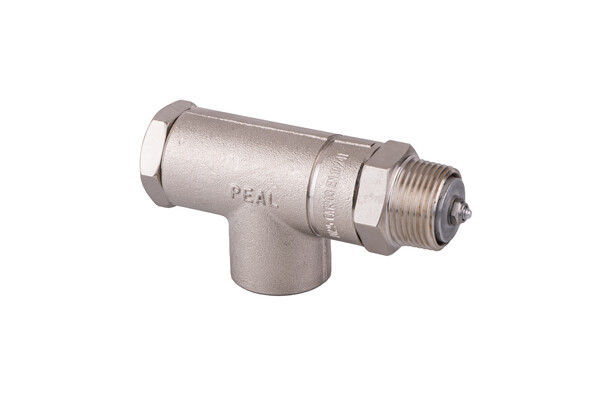

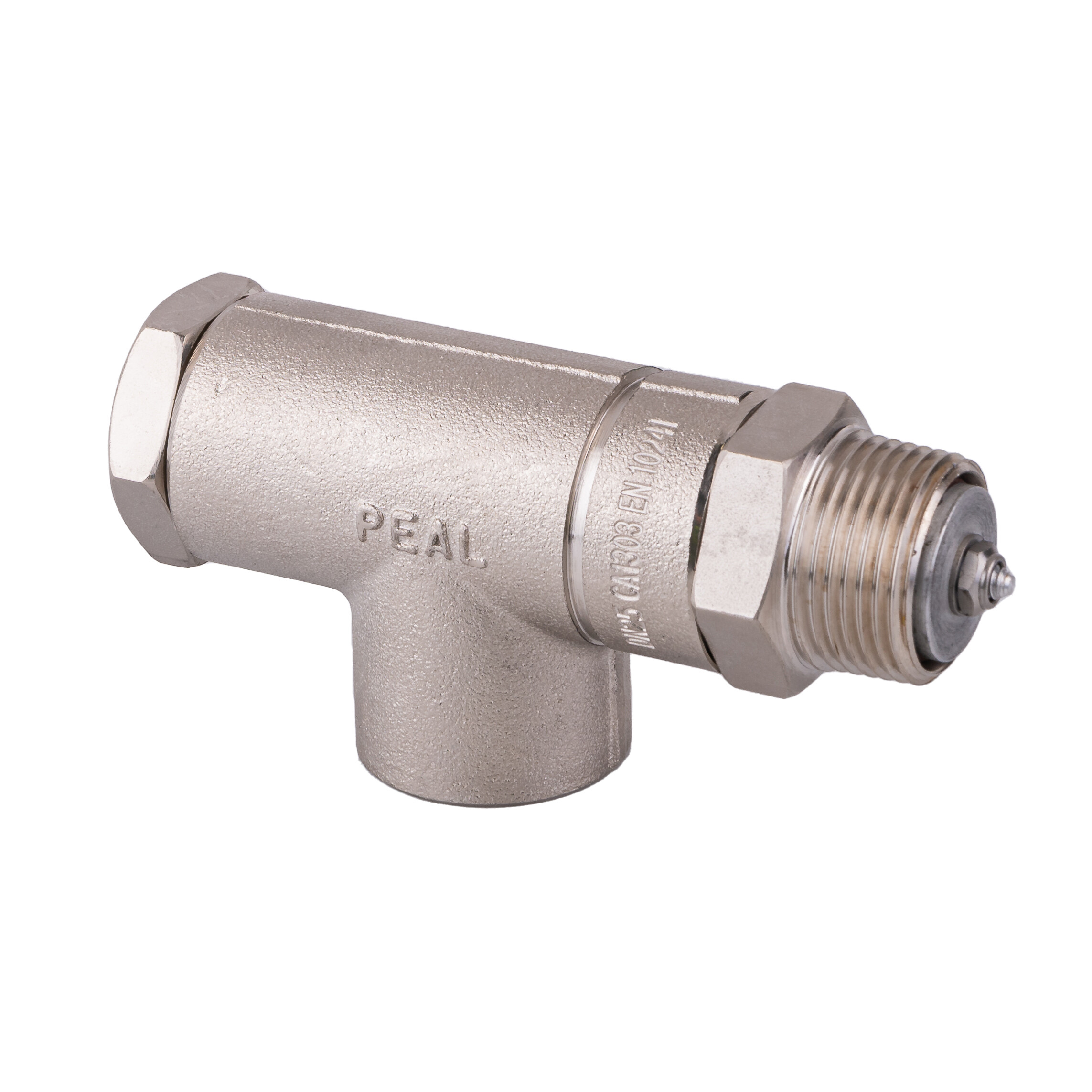

The ITV1-AO 25mm internal valve with integral elbow, has been designed for use on aircraft refueller tankers which have small sample or drain lines.

Features & Benefits
  • Normal fitting in the sump is a 25mm BSP socket.
  • Flow is outwards only.
  • The elbow incorporates a shear groove above the pipe attachment aperture to ensure a breakaway (in the event of damage) at that point.
  • Valve poppet, spring and shaft are all attached above the shear point to ensure the continued containment of product in the tank.
  • Use of Polymide (Nylon) tubing that is rated to less than 120oC,  so in the event of fire, air line can soften and release any air in the systems and close the poppet.

Recommended products for replacement

    Ordering Information

    ITV1-AO: 25mm Internal valve air operated (Viton A).

    ITV1-AOVG: 25mm Internal valve air operated (Viton GFLT).

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Item Description
    Add Item into Enquiry Cart
    ITV1-AO 25mm Internal valve air operated (Viton A).
    ITV1-AOVG 25mm Internal valve air operated (Viton GFLT).
