AVN042 - Overwing Nozzles

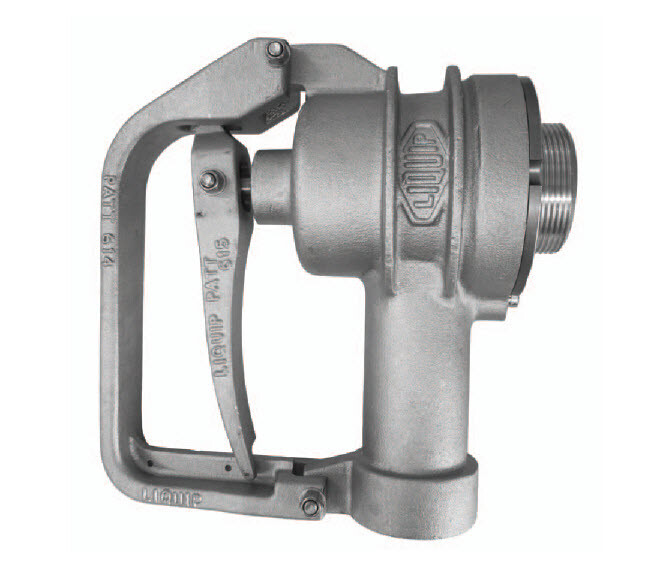

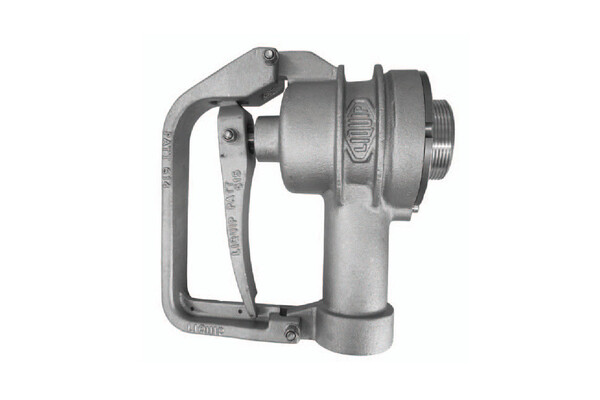

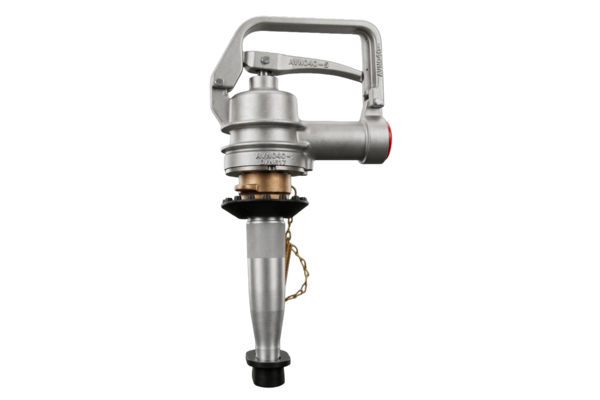

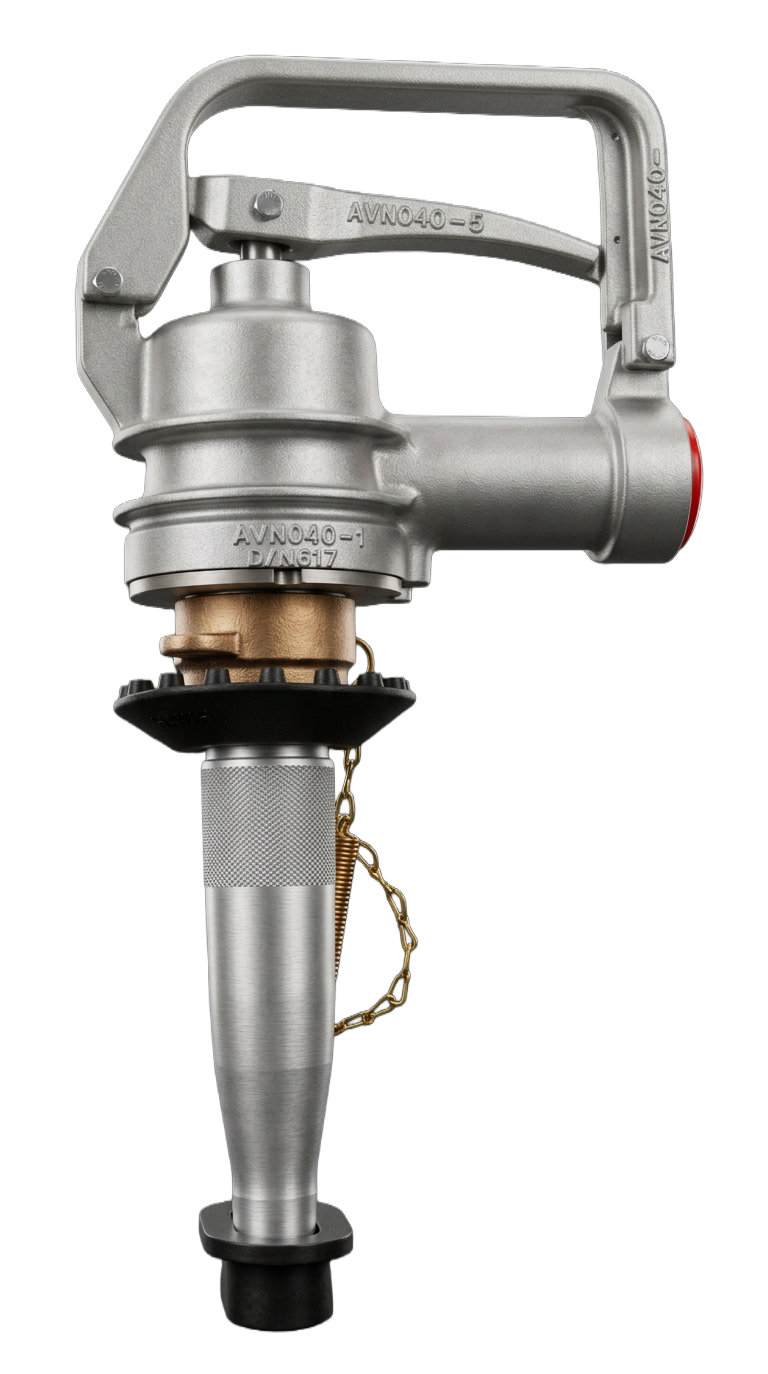

The Liquip AVN042 has been designed as an easy to operate nozzle for delivery of all fuels and aviation fuels.

Features & Benefits
  • Equipped with "power assist" dashpot operation to make it as light as a service station nozzle.
  • The pressure-balance design allows a small, constant finger force on the trigger no matter what the pump pressure.
  • The trriger action first opens a bullet shaped internal seal to equalise internal nozzle pressure, making it easy to open the product seal.
  • Ease of operation allows for dine, accurate top-up without any surging and spliashing.
  • Handle and trigger are easily replaceable.
  • Body has wear ribs to protect it when dragged.

Recommended products for replacement

    Categories
    Technical Information

    Trigger Force
    Constant 60N at midpoint

    Flow-through Diameter
    38mm (1½").

    Pressure Drop
    Only 50 kPa pressure drop at 300 LPM with 32mm spout.

    Weight
    2.5kg with 32mm spout.

    Mounting
    38mm (1½" BSPP female thread) inlet.

    Materials
    Aluminium body, handle, trigger and adaptor outlet. Stainless Steel shaft, pin and spring and Viton & Polyurethane seals.

    Dismantling
    Remove capscrew. Unscrew outlet adaptor. This will give access to all internals.

    Ordering Information

    AVN042: 1½" overwing nozzle body.

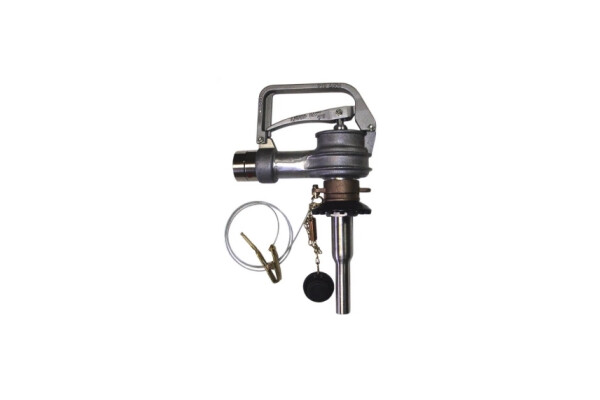

    AVN-25Z: Complete Nozzle with 25mm spout.

    AVN-32Z: Complete Nozzle with 32mm spout.

    AVN-38Z: Complete Nozzle with 38mm spout.

    AVN-JZ: Complete Nozzle - Jet Selective.

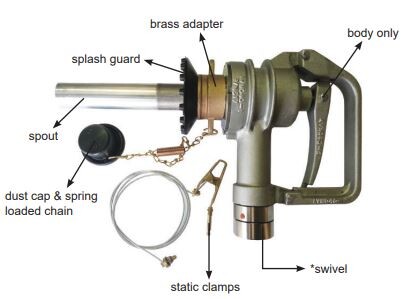

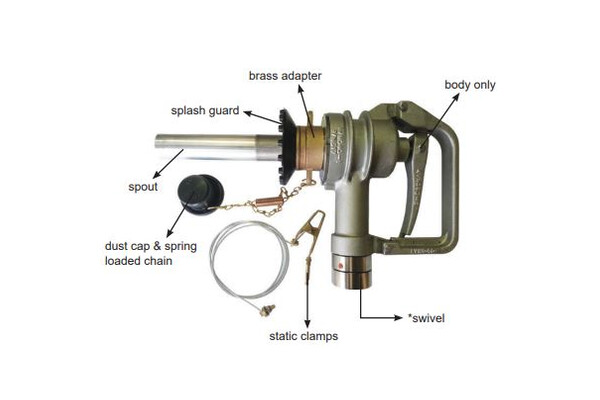

    Associated Equipment

    Body
    AVN042: 1½" overwing nozzle body.

    Spouts
    ER250: 25mm (reduced) spout.

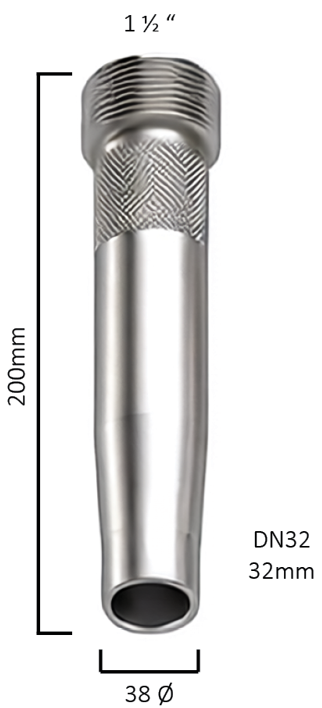

    ER495: 32mm aluminium spout.

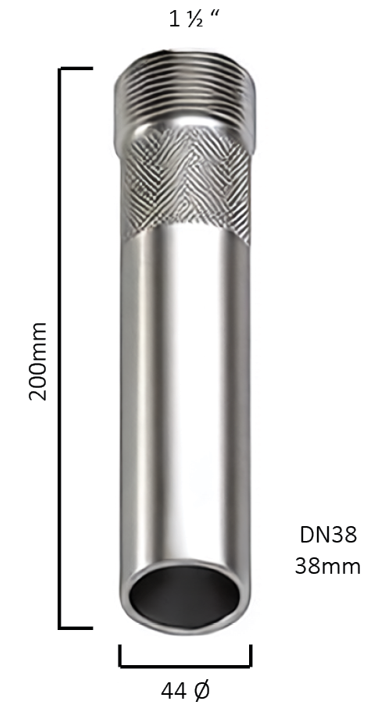

    ER583 : 38mm aluminium spout.
    ER587 JET: Jet-Selective aluminium spout.

    Hose Swivel
    TS57-0058 : 1½" M x 1½" F

    Dust Caps
    GKG25: Buna-N dust cap & spring loaded chain to suit 25mm spout.
    GKG32: Buna-N dust cap & spring loaded chain to suit 32mm spout.
    GKG38: Buna-N dust cap & spring loaded chain to suit 38mm spout.
    GKG38-J: Buna-N dust cap & spring loaded chain to suit Jet selective spout.

    Adaptor
    EG432: Brass adaptor to suit AVN042 overwing nozzle for fitting spouts.

    Strainer
    ES418: Poly/stainless steel 100 mesh strainer to suit EK432 adaptor.
    EG-ASS: Adapter (EG432) + Strainer (ES418).

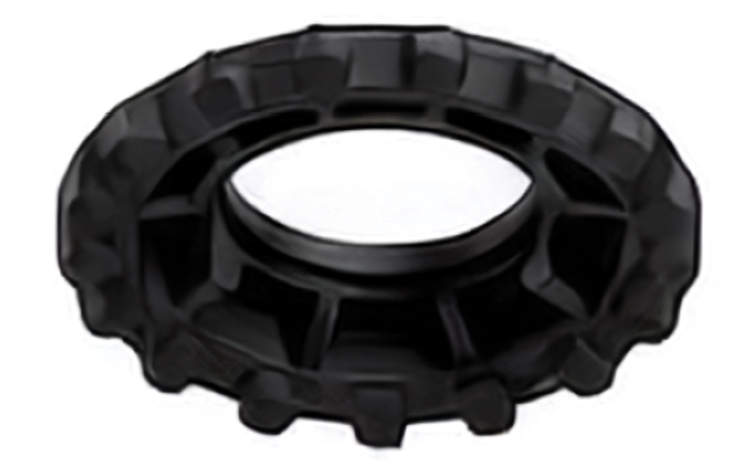

    Spalsh Guard
    EK419: Buna-N guard to suit EG432 adaptor.

    Static Clamps
    EKG1200: 1.2m bonding cable and clip.
