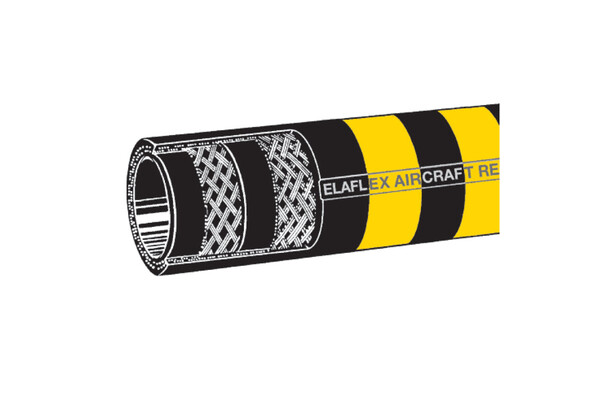

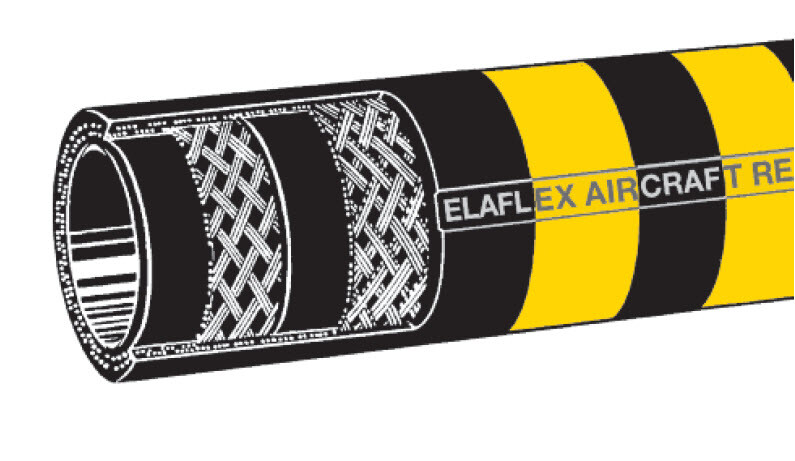

Elaflex Aviation Hose

Yellow band aircraft refuelling hoses, suitable for all aviation gasoline and jet fuels (JET-A1), anti-icings fluids and motor oils.

Specified by almost all major oil companies.

NOTE: Not for suction. Burst pressure > 80 bar / 1200psi.
the hose does not kink with a permanent pressure of at least 0.5 bar.

Note: Liquip can only ship Elaflex Parts to Australia, New Zealand and the Pacific Islands.

Features & Benefits

Technical Information

Temperature Range
-30^oC up to +70^oC.

Electrical Resistance
Between 10³ and 10⁶ Ohm.

Lining
Nitrile rubber (NBR) seamless tube, anitstatic, no fuel solubility.

Reinforcement
Textile braids without metallic strands.

Cover
Chloroprene (CR), electrically conductive, ozone and flame resistant, highly abrasion resistant.

Approvals
Approved to EI1529 C, EN1361 (European), AS2683 (Australian), NFPA 407 and API1529 (American) standards.

Ordering Information

Part	Hose Size ID (inches)	Hose Size ID (mm)	Hose Size OD (mm)	Working Pressure (bar)	Test Pressure (bar)	Max Vacuum (bar)	Min Reel Diametered (mm)	Coil Length Options (m)	Approx Weight (kg/m)

3343	1	25	37	20	40	0.5	200	30, 40, 50,60,80	0.8
3344	1 ¼	32	44	20	40	0.4	225	30, 40, 50,60,80	1.0
3345	1 ½	38	51	20	40	0.3	270	30, 40, 50,60,80	1.2
3346	2	50	66	20	40	0.3	400	30, 40, 50,60,80	1.9
3347	2 ½	63	79	20	40	0.2	600	30, 40	2.4
3348	3	75	91	20	40	-	600	40	2.8
3349	4	100	117	20	40	-	900	40	3.7

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist - handy function for account holders

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart
	3343	Hose Size ID (1in / 25mm), Hose Size OD (37mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.5bar), Min Reel Diametered (200mm), Coil Length (30, 40, 50, 60, 80(m)), Approx Weight (0.8kg/m)
	3344	Hose Size ID (1 ¼in / 32mm), Hose Size OD (44mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.4bar), Min Reel Diametered (225mm), Coil Length (30, 40, 50, 60, 81(m)), Approx Weight (1kg/m)
	3345	Hose Size ID (1 ½in / 38mm), Hose Size OD (51mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.3bar), Min Reel Diametered (270mm), Coil Length (30, 40, 50, 60, 82(m)), Approx Weight (1.2kg/m)
	3346	Hose Size ID (2in / 50mm), Hose Size OD (66mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.3bar), Min Reel Diametered (400mm), Coil Length (30, 40, 50, 60, 83(m)), Approx Weight (1.9kg/m)
	3347	Hose Size ID (2 ½in / 63mm), Hose Size OD (79mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.2bar), Min Reel Diametered (600mm), Coil Length (30, 40(m)), Approx Weight (2.4kg/m)
	3348	Hose Size ID (3in / 75mm), Hose Size OD (91mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (-bar), Min Reel Diametered (600mm), Coil Length (40(m)), Approx Weight (2.8kg/m)
	3349	Hose Size ID (4in / 100mm), Hose Size OD (117mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (-bar), Min Reel Diametered (900mm), Coil Length (40(m)), Approx Weight (3.7kg/m)
