Truck Plugs



Liquip offers truck plugs with added ground assurance to suit 2 wire and 5 wire overfill systems with 3 or 4 pin bayonet fastening (J-slots).

The industry standard 10 pin overfill protection plug is interchangeable with others of the same type and incorporates no-cost wiring connectors which ensure the tanker is bonded to the gantry so long as the plug body is correctly mounted. This dissipates static electricity and prevents sparks due to differences in potential.

The design of the Liquip truck plug is unique in that it ensures grounding of the tanker to the gantry by using the mounting bolts inside the truck plug.

The TP104 series of truck plugs features a hard-coated nose ring and J-slots for longer service life.

Features & Benefits
  • 3 and 4 bayonet style J-slots to industry standards.
  • 10 pin as standard.
  • Allows for overfill protection with added ground assurance.
  • Sufficient room to easily install and mount dummy probe as required in 2 wire systems.
  • Stainless Steel nose ring and J-slots for longer service life.
  • Offers compatibility with virtually all terminals built to EN13922 or API RP 1004.
  • Face plate mounting and gasket design prevents water ingress.

Recommended products for replacement

    Technical Information

    Materials
    -Stainless steel nose cone.
    -Stainless steel pins and terminator.
    -Acetal mounting block.
    -Aluminium body and cover plate.
    -PVC cap. Order separately, see below.

    Mounting
    Mounting by 2 stainless steel bolts 8mm dia via acetal insulating bushes.

    3 and 4 bayonet to industry standard.

    2 x Conduit ports ½” NPT (straight) thread.

    Compatibility
    10 pin as standard.
    10 pin deisgn is interchangeable with 6 and 8 pin designs.

    Weight
    1.5kg.

    Ordering Information

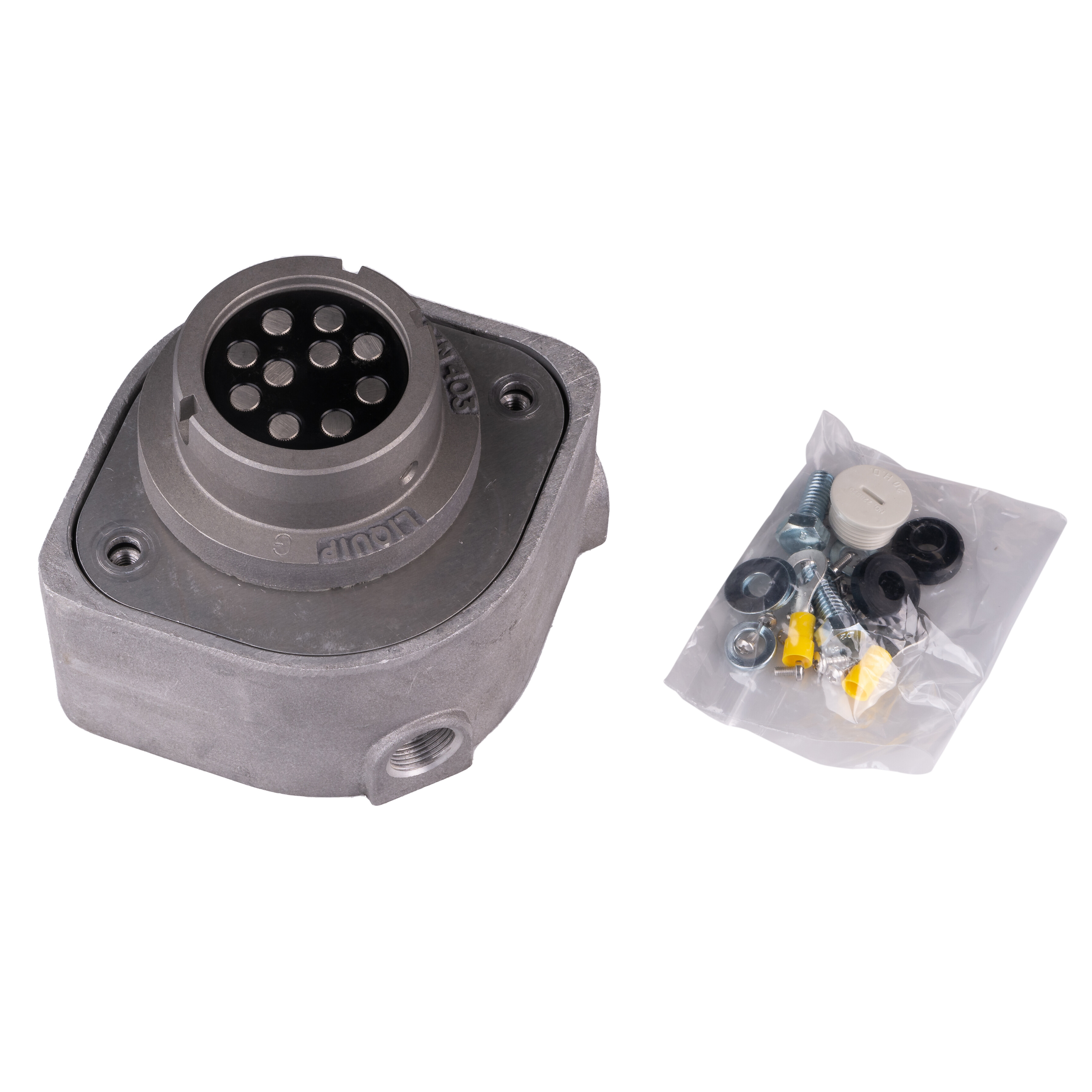

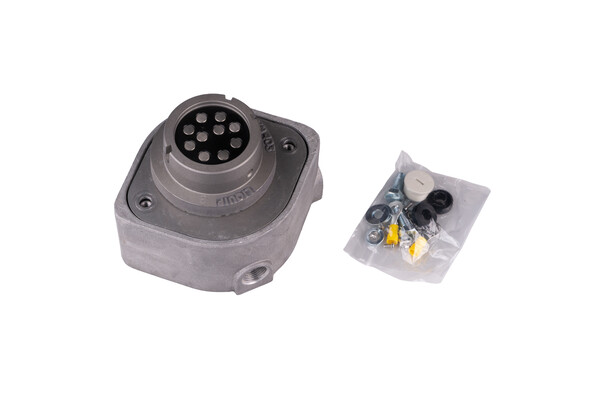

    TP103: truck plug with 3 slot bayonet fastening.

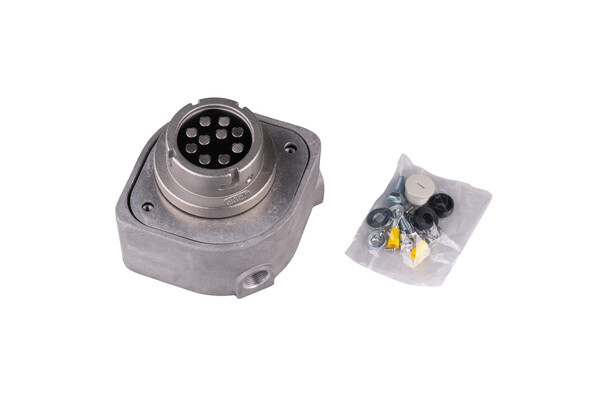

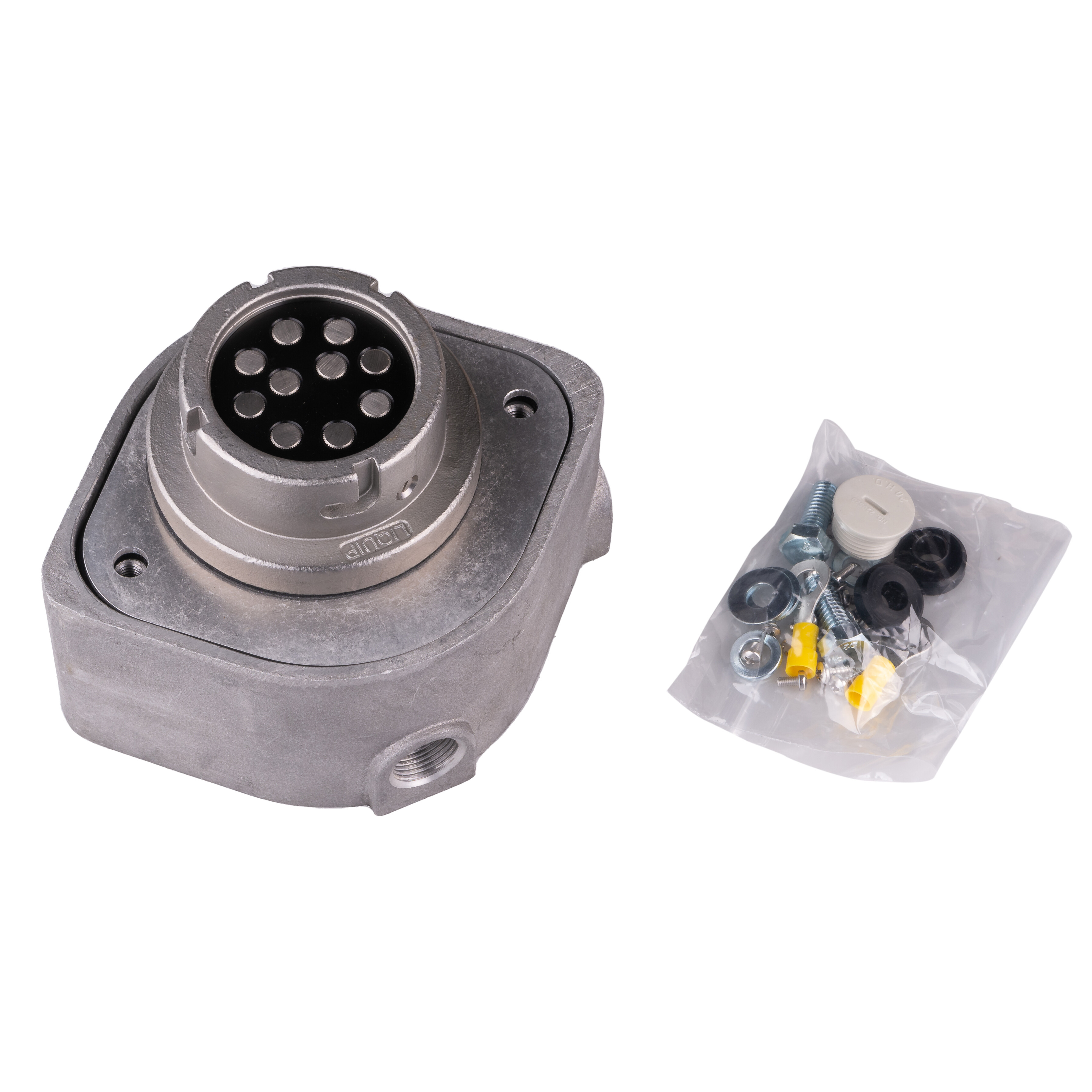

    TP104: truck plug with 4 slot bayonet fastening (use also for 2 slot applications).

    Associated Equipment

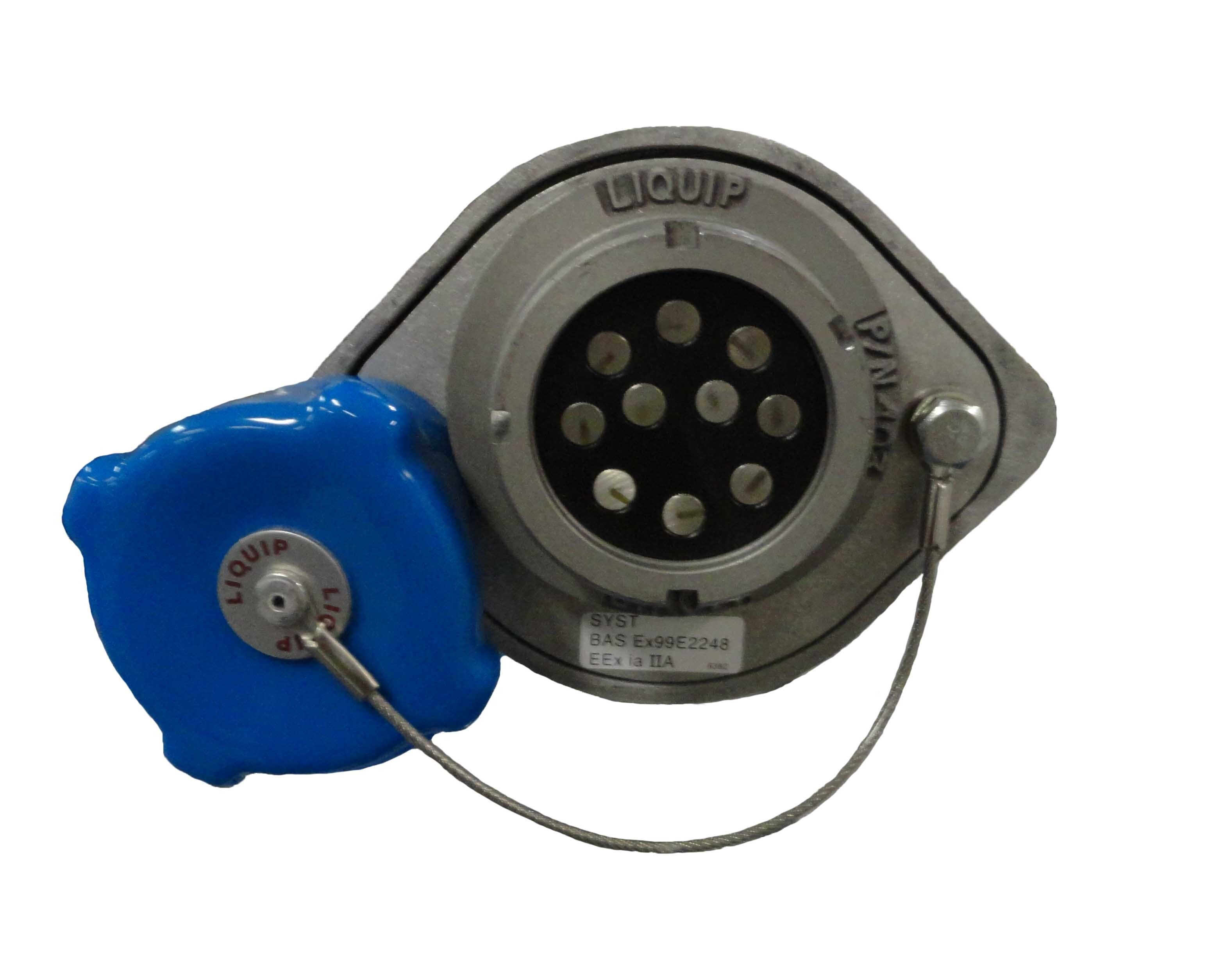

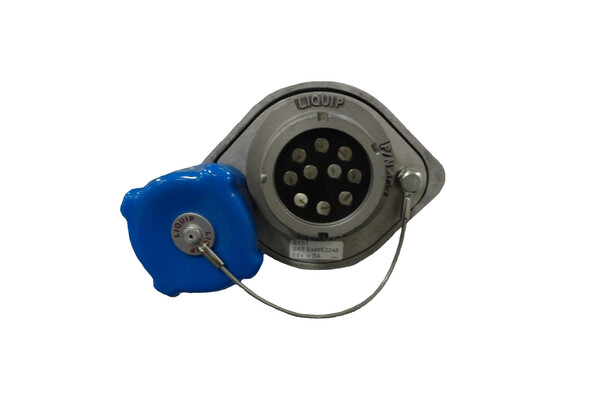

    5069: Truck Plug Socket Dust Cap - Blue.

    DP305: 5 Channel Dummy Probe for 2 wire systems.

    DP307: 7 Channel Dummy Probe.

    LDP202: Aluminium 2 wire Overfill Probe.

    LDP205: Aluminium 5 wire Overfill Probe.

    GP100 Series: Overfill Gantry Plugs.
