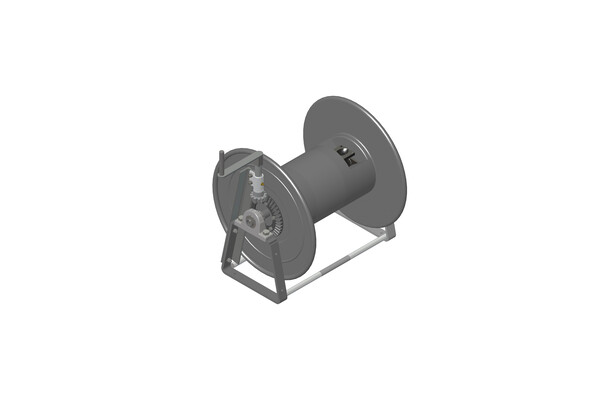

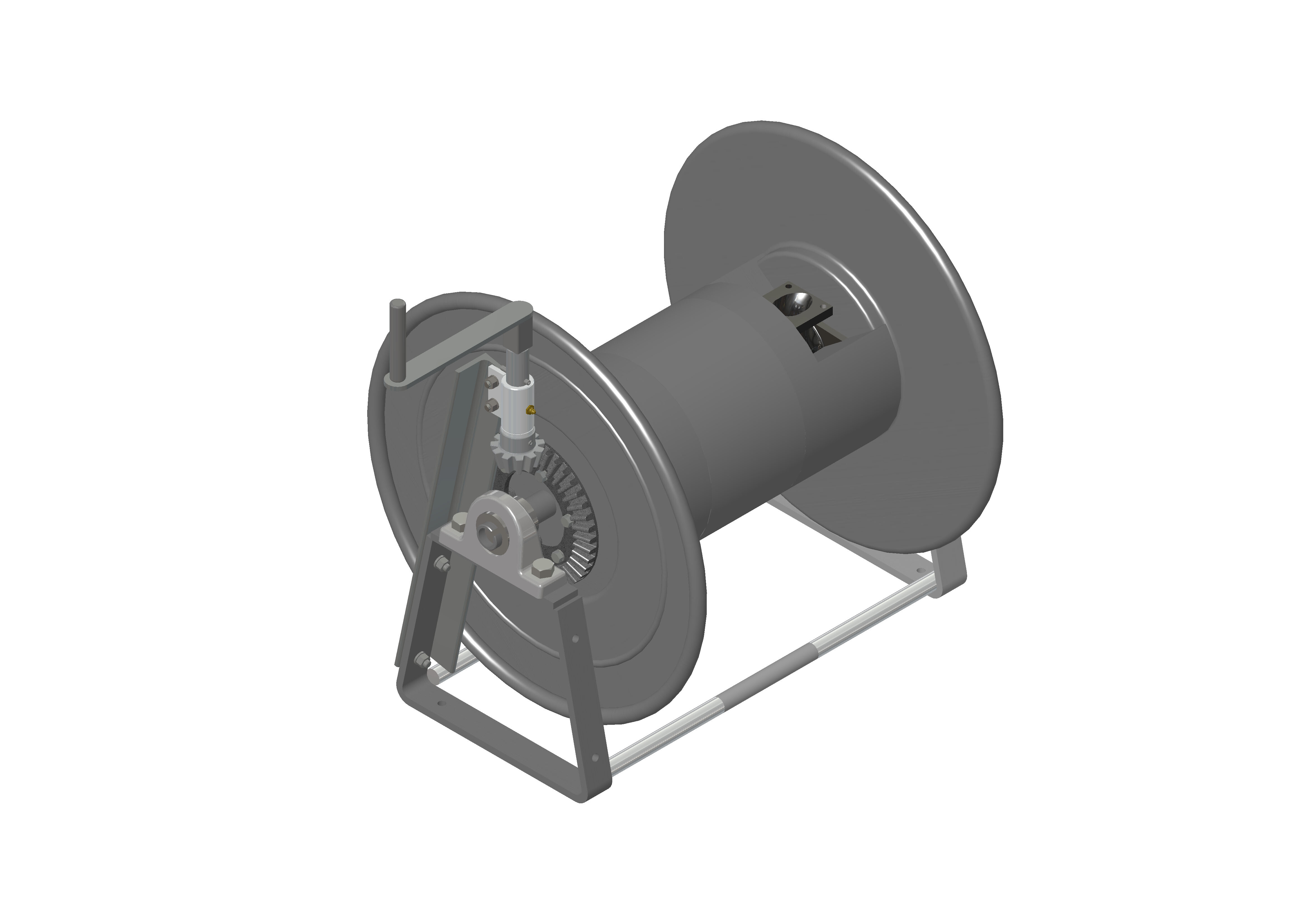

Front Rewind High Pressure Hose Reels



The FR series of high pressure hose reels are suitable for petroleum products and are available in different sizes.

The front rewind reels have robust construction – stiffened cheek plates, extremely sturdy thick wall manifold with added strength from steel inner drum, steel base frame and self aligning bearing.

Features & Benefits
  • Flow area is equal to 38mm throughout.
  • All components are easily replaced as required.
  • Sealing is by lip seal.
  • Built tough to last in the harshest conditions.
  • All models incorporate an optional lock.
  • Optional anti-rotation lock to prevent hose unravelling.

Recommended products for replacement

    Technical Information

    Pressure tested & rating
    Up to 2,100kPa.

    Periodic Service
    Quarterly grease plummer block bearing.

    Mounting
    4 x M10 Bolts.

    Variants
    Can suit 25mm, 32mm & 38mm diameter hoses.

    Rewind Mechanism
    Hand Rewind.

    Drum widths
    300mm (12"), 400mm (18") or 600mm (24").

    Ordering Information

    Select model using the below configurator e.g. FRxxHP2





    FR

    Width (Inches)





    HP2

    12

    18

    24

    Options (contact Liquip for further details)

    LPG spec
    Aviation spec
    Galvanised drum/frame
    Lockable version

    Associated Equipment

    AHR250D: Aviation drum style hose reel.

    AHR250: Cartwheel type hosereels:

    295SACJ-0200: Aviation spec nozzle.

    Nickel plated steel gooseneck with st steel inlet flange available.

    Nickel plated gooseneck with 1 ¼” MBSPP thread available for aviation and water use.

    Rollers and guides.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    FR12HP2 12" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND
    FR18HP2 18" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND
    FR24HP2 24" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND
