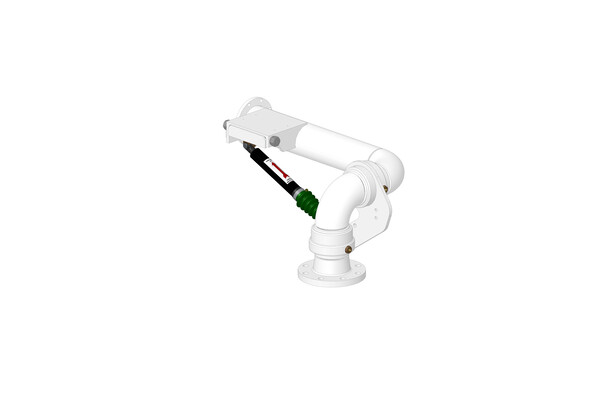

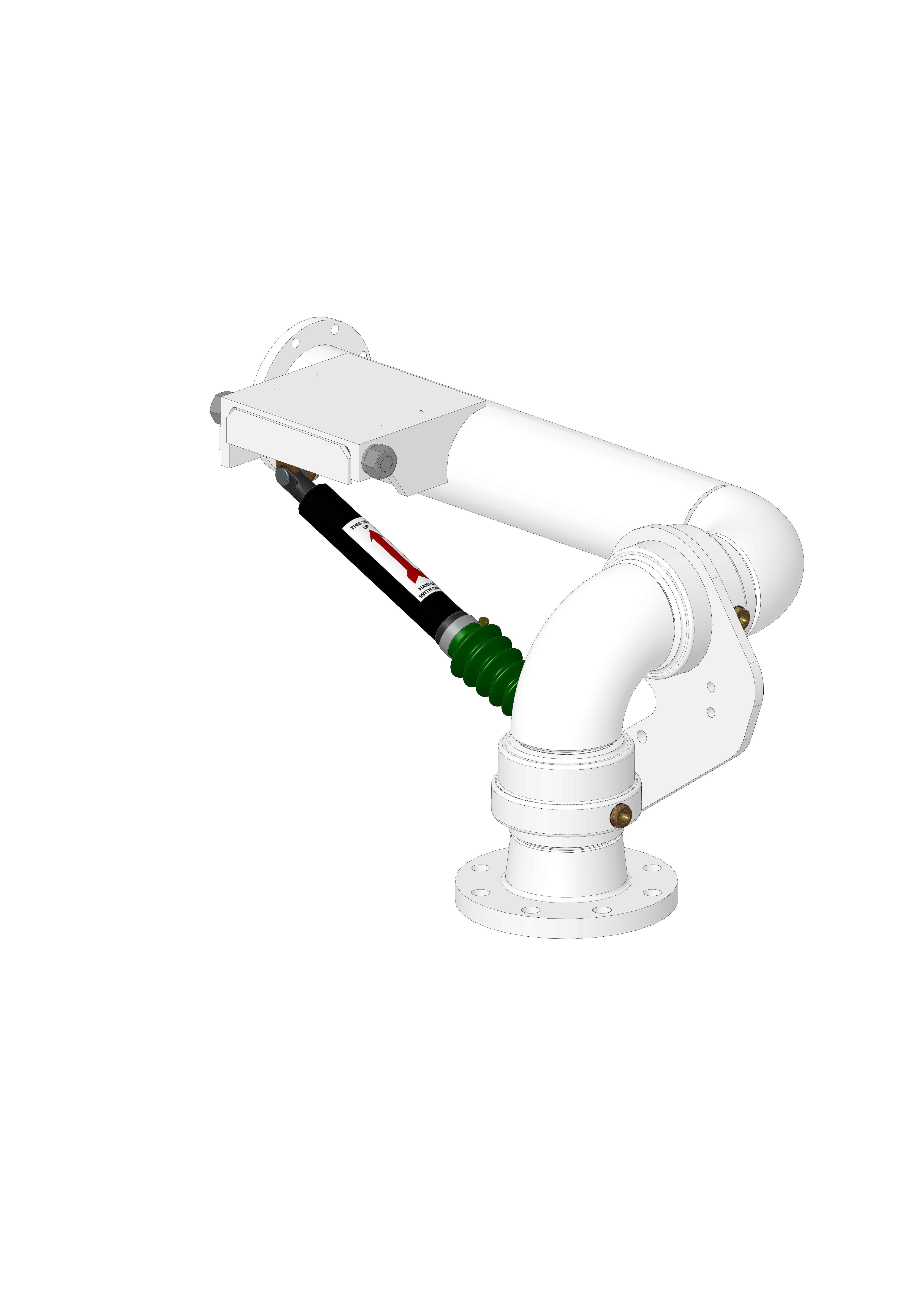

Balance assembly - VBB Series (Obsolete product)



Liquip offers a unique balance assembly to be used with long reach and low profile arms. These can also be used for gravity or pumped discharge of road and rail tankers, as well as for bottom loading.

Liquip’s VBB series is used with MK3 loading arms. The “Velvet Touch” MK 3 loading arm is a breakthrough in balance systems for bottom loading. This particular loading arm has been purpose designed to suit that market where a practical application outweighs style and looks.












Sorry About That… This Product is an Obsolete Item…

This product is no longer available. To assist you with finding an alternative product that will perform the same function we have offered some suggested replaceable products below.

We have also made information about obsolete products available to assist with purchasing spare parts that may still be available. You can view obsolete product information by searching for product codes in our SEARCH bar.

If you would like any further information regarding our parts please don’t hesitate to contact your local Liquip representative and we will get back to you as quickly as possible.


Features & Benefits
  • Utilises Liquip’s famous "Velvet Touch" design.
  • Arms can reach both sides of a loading gantry.
  • Available in 75mm (3") or 100mm (4").
  • Available in a range of materials to suit various fluid transfer applications.
  • Uses a single gas strut to counter-balance the weight of the arm, which means the up and down movement of the arms requires minimal effort.
  • Steel swivels run on needle roller bearings with much lower friction than the traditional double row ball bearings.
  • A pressure relieving nipple allows old grease and particles to be expelled and provides visible evidence of greasing being thorough and prevents over pressuring.

Recommended products for replacement

    Categories
    Technical Information

    Maximum Pressure
    1,000 kPa.

    Maximum Viscosity
    150cSt viscosity (when loading valve is used).

    Typical Reach
    1,750mm.

    Operating Temperature
    -30oC to 200oC (depending on seals used).

    Mounting
    100mm standard size but also available in 75mm NB.

    Materials
    Mild Steel and Stainless Steel 316 grade is available.

    Seals
    Product seals are available in Viton or PTFE.

    Ordering Information

    VBB075MMV: MK3 balance assembly, mild steel c/w viton seals.

    VBB075MMLV: Left hand MK3 balance assembly, mild steel c/w viton seals.

    VBB100MMILVG: Left hand, inverted MK3 balance assembly, mild steel c/w viton seals.

    VBB100MMIT: Inverted MK3 balance assembly, mild steel c/w teflon seals.

    VBT100MMIVG: MK3 balance assembly, steel c/w viton GFLT seals.

    VBB100MMLVG: Left hand MK3 balance assembly, mild steel c/w viton GFLT seals.

    VBB100MMIT: Inverted MK3 balance assembly, mild steel c/w Teflon seals.

    VBB100MMIVG:  Inverted MK3 balance assembly, mild steel c/w Viton GFLT seals.

    VBB100MMLT: Left hand MK3 balance assembly, mild steel c/w Teflon seals.

    VBB100MMLVG: Left hand MK3 balance assembly, mild steel c/w Viton GFLT seals.

    VBB100MMT: Mk3 balance assembly, mild steel c/w Teflon seals.

    VBB100MMVG: MK3 balance assembly, mild steel c/w Viton GFLT seals.

    VBB100SSIT: Mk3 balance assembly, Stainless steel c/w Teflon seals.

    VBB100SSIV: Inverted MK3 balance assembly, Stainless steel c/w Viton seals.

    VBB100SST: MK3 balance assembly, Stainless steel c/w Teflon seals.

    Contact Liquip for Z-kits which include struts.

    Associated Equipment

    Liquip MK3 loading arms.
